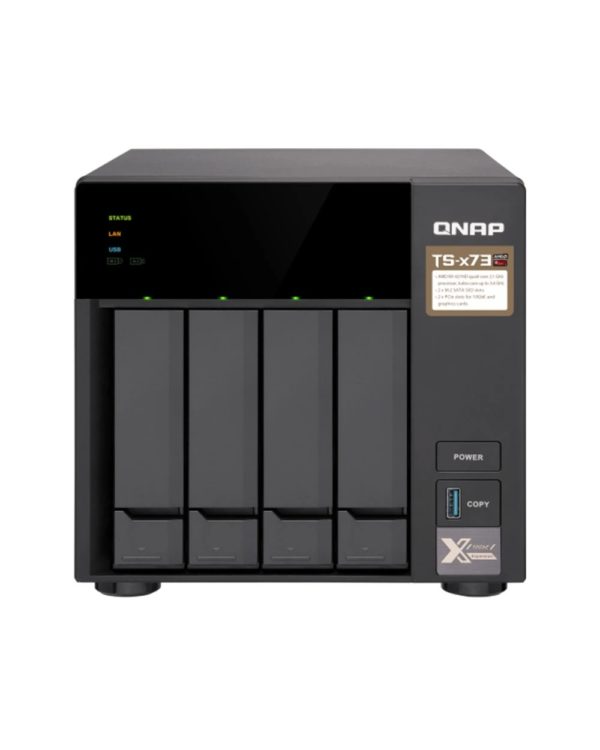

QNAP TS-473 TS-473-8G-US 4-Bay AMD R-Series RX-421ND Turbo NAS Server w/ 8GB RAM – Diskless – Brand New
QNAP TS-473 TS-473-8G-US 4-Bay AMD R-Series RX-421ND Turbo NAS / Network Attached Storage Server with 8GB (2 x 4GB) RAM – Diskless – Brand New
QNAP TS-473-4G 4-bay Network Attached Storage Server includes …
- 4 x USB 3.0 (1 x Front, 3 x Rear)
- 4 x Ethernet RJ45 1GbE LAN ports
- 4 drive bays
- 8GB (2 x 4GB) SODIMM DDR4-1600 RAM
- AMD R-Series RX-421ND quad-core 2.1 GHz processor
- Turbo Core up to 3.4 GHz
- Accepts 3.5″ and 2.5″ SATA hard drives and 2.5″ SATA solid state drives
- Encryption capable
The TS-473 is powered by a high-performance and energy-efficient AMD R-Series CPU and provides two PCIe slots for greater functionality. You can install a QNAP QM2 expansion card to add M.2 SSD caching/10GbE connectivity; a compatible wireless card to use the TS-473 as a wireless access point; and an entry-level graphics card to boost system performance for 4K video performance. The TS-473 allows you to flexibly deploy a wide range of applications with a more affordable budget.
- Two PCIe Gen3 x4 slots support QM2 cards, 10GbE adapters, or wireless network cards.
- Supports entry-level graphics card, allowing for 4K video transcoding and output.
- Dual M.2 SATA 6 Gb/s SSD slots allow for setting up caching or storage pools, improving file access efficiency.
- Qtier auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency.
- Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
- Snapshots fully record system status and data. If files are accidentally deleted or modified, you can quickly restore the data from a snapshot
| Weight | 4.48 kg |
|---|
| Model Number | TS-473-8G / TS-473-8G-US |
|---|---|
| Hardware Specification | |
| CPU | Processor: AMD R-Series RX-421ND quad-core 2.1 GHz processor, Turbo Core up to 3.4 GHz Architecture: 64-bit Encryption Engine: AES-NI |
| System Memory | 8GB DDR4 (2 x 4 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x SODIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Flash Memory | 512 MB DOM |
| Drive Bay | 4 x SATA 6 Gbps bays |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| SSD Cache Acceleration Support |
|
| Hot-Swappable | Yes The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| M.2 SSD Slot | 2 x M.2 2260/2280 SATA 6Gb/s SSDs (Sold separately)
Note: |
| Gigabit Ethernet Port | 4 x RJ45 |
| PCIe Slot | 2 x PCIe 3.0 x4 Note: Support low-profile 10GbE LAN card, USB 3.1 Gen2 (10Gb/s) expansion card, QM2 card, PCIe wireless network card or a bus-powered graphics card. |
| USB Port | USB 3.0 (Front: 1; Rear: 2) |
| Audio |
Note: You cannot use the speakers and the line-out jack simultaneously. |
| USB One Touch Copy | Front: USB 3.0 |
| IR sensor | Optional QNAP RM-IR004 remote control (MCE compatible) |
| Form Factor | Tower |
| Dimensions (H x W x D) | 188.2 x 199.3 x 279.6 mm 7.41 x 7.85 x 11.01 inch |
| Power Consumption (W) | HDD standby: 33.24 W In operation: 56.23 W (with 4 x 2TB HDDs installed) |
| Sound Level | Sound pressure (LpAm): 21.7 dB(A) |
| Net Weight | 4.84 kg (10.67 lbs) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz |
| Fan | System: 1 x 120 mm CPU: 1 x 60 mm |
| Operating Temperature & Relative Humidity | 0 ~ 40ĖC ( 32ĖF ~ 104ĖF ), 5 ~ 95% RH non-condensing, wet bulb: 27ĖC (80.6ĖF) |
| Security Slot | Kensington security slot |
