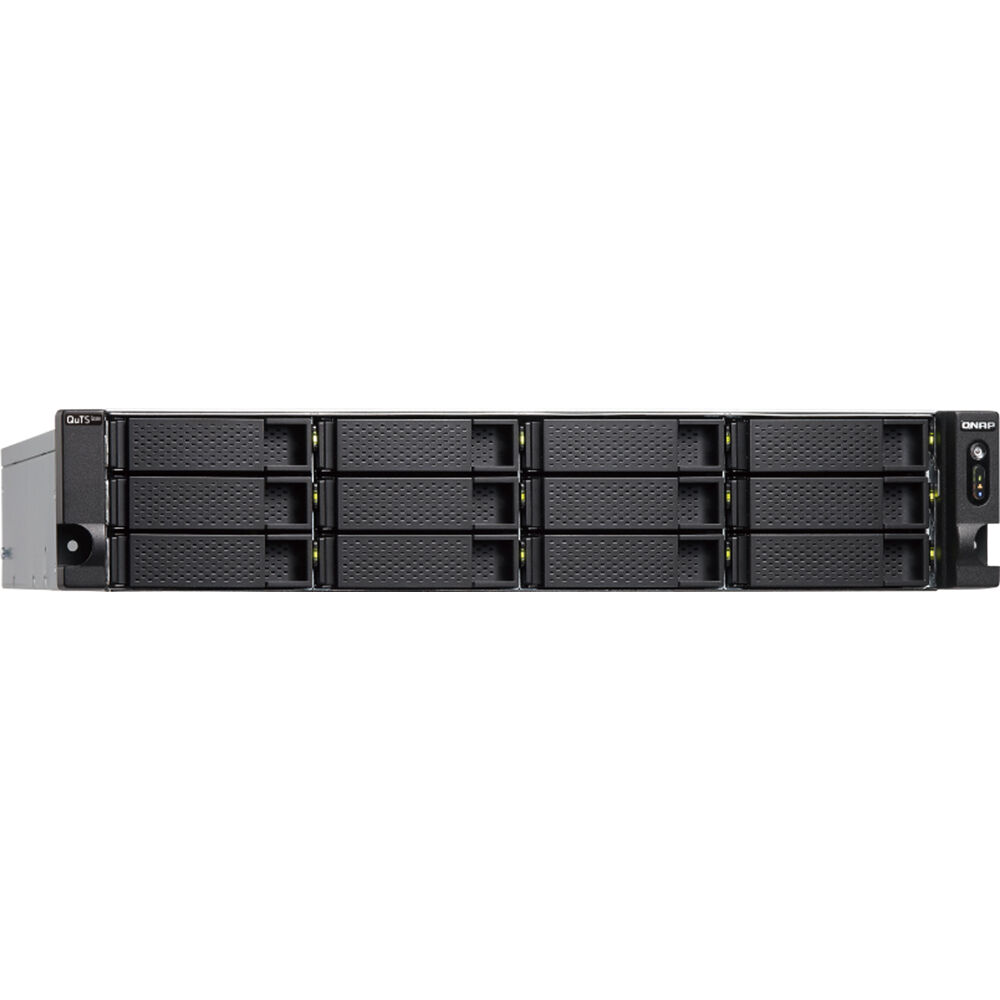

QNAP TS-h1283XU-RP 12-Bay NAS Enclosure

Powered by 3.3 GHz Intel Xeon E-2136 6-Core processor, the TS-h1283XU-RP features enormous computing power for boosting virtual machine performance. Combined with up to 128GB of DDR4 ECC memory and a redundant power supply, the TS-h1283XU-RP delivers server-grade performance and dependable reliability for rugged enterprise IT environments as a cost-efficient NAS solution.

SMB Sequential Throughput (10 GbE x 2)
Write: 2114 MB/s
Read: 2362 MB/s

iSCSI Random 4K IOPS (10 GbE x 2)
Write: 43467 IOPS
Read: 127475 IOPS

The TS-h1283XU-RP uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-h1283XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-h1283XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the TS-h1283XU-RP memory configuration (supports up to 128GB RAM) for greater performance to tackle dynamically-changing workloads, such as virtualization applications.

The TS-h1283XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification demands.

Intel Xeon E Processor
The high-performance 3.3 GHz Intel Xeon E-2136 6-Core processor has a burst speed of up to 4.5 GHz.

Up to 128GB of DDR4 ECC Memory
Equipped with 32GB of DDR4 dual-channel Long-DIMM memory that can be upgraded to 128GB.

Four Gigabit Ethernet Ports
Ideal for service binding, port trunking, and MPIO configurations.

USB 3.2 Gen 2 Ports
Includes two 10 Gb/s USB-C 3.2 Gen 2 ports and four 10 Gb/s USB-A 3.2 Gen 2 to boost data transfer speeds or connect external hard drives, printers, and UPS.

Four 10GbE Ports
Two 10GbE network expansions cards are pre-installed, including one dual-port RJ45 NIC and a dual-port 10GbE SFP+ NIC.

Four PCIe Expansion Slots
Supports 10GbE/25GbE/40GbE network expansion cards, QM2 cards, Fiber Channel cards, and SAS expansion cards for greater application potential. Slot 3 and 4 come with pre-installed 10GbE adapters.

Redundant Power Supply Unit
Redundant 500W power supplies ensure continuous system uptime.

System Fans
Monitors system temperatures and automatically adjusts fan speeds accordingly.

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data Integrity is Key
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.

Data Reduction Improves Storage Efficiency and Performance
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.

Multi-Level Cache Technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.

RAID Z Enables Robust Data Protection
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.

QSAL (QNAP SSD Antiwear Leveling) Enhances Data Protection
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.

App Center Ecosystem Extends NAS Functionality
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h1283XU-RP.

Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.

Step 1: System Drive & Default Shared Folders
The first Storage Pool you create is where the system drive, default shared folders, and apps are stored. In this step, it is recommended to create an SSD RAID with at least two SSDs to attain optimal system performance and efficient app metadata management. (With an all-HDD configuration, the first Storage Pool is also where the system drive and default shared folders are stored.)

Step 2: Read/Write Cache
Use more SSDs for read cache or ZIL. You can also install QM2 expansion cards to add M.2 SSDs for expanding cache space.

Step 3: Data Storage
Allocate HDDs/SSDs to create a RAID for storing files and application data. If needed, you can configure an all-flash configuration for optimal performance.

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

The TS-h1283XU-RP also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.

Snapshots Multiple Backup Protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS Simplifies 3-2-1 Backup Plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h1283XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

Note: SnapSync will be available from QuTS hero h4.5.2.

Inline data compression helps boost QuTS hero data transfer performance. During simultaneous file transfer from multiple clients, inline data compression enabled QuTS hero performance is 1.6x faster than QuTS hero or QTS without inline data compression.

The TS-h1283XU-RP provides four Gigabit RJ45 ports and also supports 10GbE connectivity with a pre-installed dual-port 10GbE RJ45 expansion card and a dual-port 10GbE SFP+ expansion card to satisfy bandwidth-demanding applications, including virtualization, large file sharing, and high-speed backup and recovery.

The TS-h1283XU-RP features four PCIe slots that enable using numerous expansion cards for expanding application potential.

10GbE/25GbE/40GbE Network Cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup or restoration.

QM2 M.2 SSD/10GbE Cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

SAS Expansion Cards
Designed for connecting the TS-h1283XU-RP to REXP expansion units to increase storage capacity by adding up to 128 SAS/SATA drives.

Note: The 2 RU rackmount model uses low-profile graphics cards.

Adding an SSD cache to the TS-h1283XU-RP is an easy method for increasing IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications, including databases and virtualization and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.

• Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware, Citrix, Microsoft Hyper-V, and Windows Server 2019 virtualization environments.
• Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, allowing you to flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows, Linux, UNIX, and Android virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station
Experience LXC and Docker lightweight virtualization technologies and download apps from the built-in Docker Hub Registry, import or export containers, and create multiple microservices.

QNAP provides a reliable, flexible backup and disaster recovery solution to assist organizations in routine backup jobs cost-effectively and with high productivity.

HBS
Consolidates backup, restoration, and synchronization functions for easily transferring data to local, remote, and cloud storage spaces as a comprehensive data storage and disaster recovery plan. QuDedup technology deduplicates backup data at the source to accelerate multi-version backups.

Snapshots
Snapshots are essential for NAS data protection, and the block-level feature makes them a dependable method for protecting data in the face of growing ransomware threat. QuTS hero supports near-limitless snapshots to reinforce your multi-version backups.

VM Backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and snapshot support for recording the system state at any specific time, the TS-h1283XU-RP is perfect for backing up virtual machines.

The TS-h1283XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

HybridMount File-based Cloud Gateway
Flexibly expand your storage capacity by connecting to the cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block-based Cloud Gateway
Supports mounting object cloud storage as a block-based volume or LUN on a NAS. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes, such as addition, modification, or deletion will be transmitted. This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

Common Fiber Channel Storage Area Networks (SAN) devices are often costly. Now you have more budge-friendly options to easily add your NAS to a SAN environment. By installing a Marvell, ATTO, or QNAP Fiber Channel card in the TS-h1283XU-RP, you can set a Fiber Channel Target using the iSCSI & Fiber Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

TS-h1283XU-RP is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.
