QSW-M7308R-4X-US

Add to Wishlist
  • ļ¼”x 100GbE QSFP28, 8 x 25GbE SFP28 Web Managed switch

4,999.00 د.إ

Add to Wishlist

Embrace the ultra-high-speed 100GbE network generation!

According to market research, the demand for 100GbE switches has taken off in 2023. Enterprises, hyperscalers, and service providers worldwide continue to invest in higher-speed network infrastructure to support higher-speed servers and higher bandwidth demands of new applications such as Generative AI workloads.

Resource:Ā IDC,Ā Dellā€™Oro Group

With the prevailing 10GbE and 25GbE networks, explosive growth of big data transmission and high-density workloads is driving demands for ultra-high-speed 100GbE networks. The QSW-M7308R-4X 100GbE switch assists enterprises in deploying 100GbE networks in the existing network infrastructure with cost-effectiveness, resolving performance bottlenecks.

  • Media professionals

    4K/8K video transmission

  • Storage Centers

    Big Data applications

  • Medium to large enterprises

    Cloud & AI computing

  • Smart medicine

    DNA sequence computing

The best 100GbE network switch for SMBs

  • Cost-optimal

    The QSW-M7308R-4X offers 1200Gbps switching capacity at a budget-friendly price. Businesses can flexibly deploy medium-to-large scale high-speed network infrastructure using the QSW-M7308R-4X coupled with QNAP 25GbE/10GbE switches.

    Learn More:Ā Future-ready Network Switches

  • Compact

    Two half-width rackmount QSW-M7308R-4X can be installed in a 1U rack space, or with another half-width rackmount switch.

  • Best for QNAP NAS

    Ultra-high-speed 100GbE switches can connect to QNAP 25GbE NAS or NAS installing 100G network cards fulfilling high bandwidth demands for high-density I/O data transmission.

    Learn More:Ā Complete 10GbE and 25GbE network solutions

High switching capacity of 1200Gbps for backbone networks

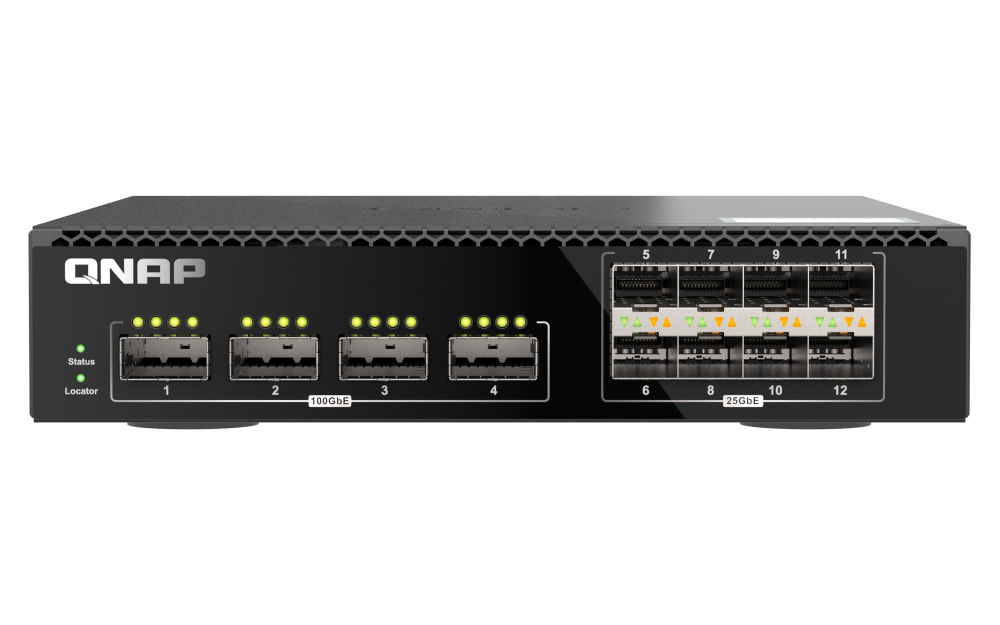

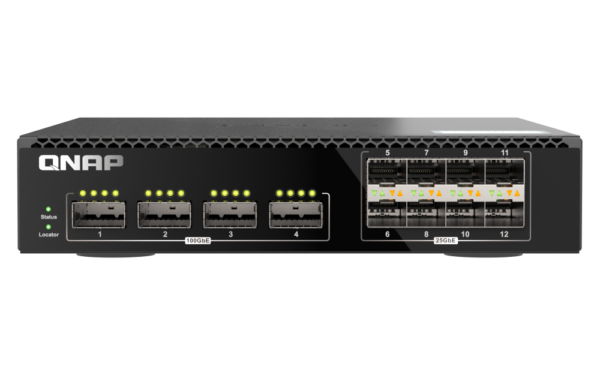

The QSW-M7308R-4X has four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports and offers a backbone switching capacity of 1200Gbps, guaranteeing the full potential of each port. The QSW-M7308R-4X can uplink to 100G servers and NAS in server rooms or connect to 25GbE switchĀ QSW-M5216-1T.

Half-width design, two models in 1U

With a half-width rackmount design, a QSW-M7308R-4X can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M7308R-4X andĀ QSW-M3216R-8S8T) for efficient physical space utilization and tidy cabling.

The optionalĀ SP-EAR-QSW2FOR1-01Ā rackmount kit is required if two half-width rackmount switches are installed.

Flexible deployment with multiple 100GbE and 25GbE ports

The QSW-M7308R-4X has four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports for enabling hybrid high-speed networks. Its 25GbE SFP28 interfaces are backward compatible with 10GbE SFP+/1GbE SFP interfaces, and the 100GbE QSFP28 interface can be uplinked to 100GbE+ core switches, or connected to 100GbE+ servers/NAS directly.*

Learn More:Ā QNAP 25GbE NAS solution,Ā QNAP 100GbE/25GbE/10GbE network cards

The 100GbE QSFP28 interfaces DO NOT support breakout cables.

100GbE QSFP28
25GbE SFP28

Pair with a NAS and 100GbE network expansion card for high-performance, low-latency computing

Connect a QSW-M7308R-4X to multiple NAS with 100GbE/25GbE network cards to offer 100GbE/25GbE connectivity. Up to 200GbE network transmission can be achieved connecting to a NAS with a QXG-100G2SF-CX6 installed.

100GbE to 100GbE with more NAS
Up to 200GbE total bandwidth for NAS

Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch

Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.

  • Scalability

    When scaling your network, additional network switches are required for more end devices. Deploying a L3 Lite switch helps realize granular control over large-scale segmented networks.

  • High-performance

    High-performance network transmission is essential for critical business applications and services. A L3 Lite switch effectively satisfies the high-performance network demands in AI, multimedia, and virtualization applications.

  • Security

    Having trouble with the complicated connections in the medium to large-scale networks? A L3 Lite switch provides an IP routing table to both boost connection security and simplify security management.

Enterprise IP routing, network high availability and high-performance demands

IP routing
MC-LAG network redundancy
LACP

QSS Pro: Powerful and Smart

QNAP Switch System Pro (QSS Pro) features an easy-to-use Web GUI for easier Layer 3 Lite and Layer 2 management and value-added functions.

Learn More:Ā QSS Pro

Overview Dashboard
MC-LAG network redundancy
IPv4/IPv6 static routing
DHCP server
Uncompromising AV-over-IP experience
Manage all networked devices
Online firmware check and update

Optimize network performance with bandwidth and packet control

The QSW-M7308R-4X provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

  • LACP

    Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.

  • VLAN

    Virtual Networks allows groups of devices from different networks to be combined into a single network.

  • QoS

    QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.

  • IGMP Snooping

    IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

  • Forward Error Correction (FEC)

    FEC helps overcome packet loss ā€“ a potentially common occurrence in fast, long-distance networks. With FEC the receiving side can detect and recover lost data to fix bit errors, thus ensuring reliable data transmission over ā€œnoisyā€ channels. Unlike common switches only supporting FEC, IEEE-802.3ap Auto-Negotiation is also supported for high compatibility in QSS.

Powerful security and system functions

The QSW-M7308R-4X has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

  • ACL

    Filters packets based on rules to offer firewall-like security protection.

  • LLDP

    Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes.

  • RSTP

    Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.

  • Flow Control

    Balances traffic between a sender and a receiver to avoid network congestion.

Dependable performance with effective heat dissipation

With a compact metal body, the QSW-M7308R-4X provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.

QNAP high-speed switch solutions for diverse business network environments

QNAP provides comprehensive enterprise managed and unmanaged switches with speeds ranging from 2.5GbE, 10GbE to 25GbE and covering PoE, industrial-grade, rackmount, and desktop models. QNAPā€™s all-inclusive high-speed switches assist businesses in quickly deploying high-speed network infrastructure, accelerating enterprise backbone, smart hotels, retail, and industry 5.0 applications.
