QSW-M804-4C-US

Add to Wishlist
  • 4x 10GbE SFP+ fiber ports, 4x 10GbE SFP+ fiber /RJ45 combo ports

AED2,599.00

Add to Wishlist

Flexible deployment combo ports and 10GbE / NBASE-T

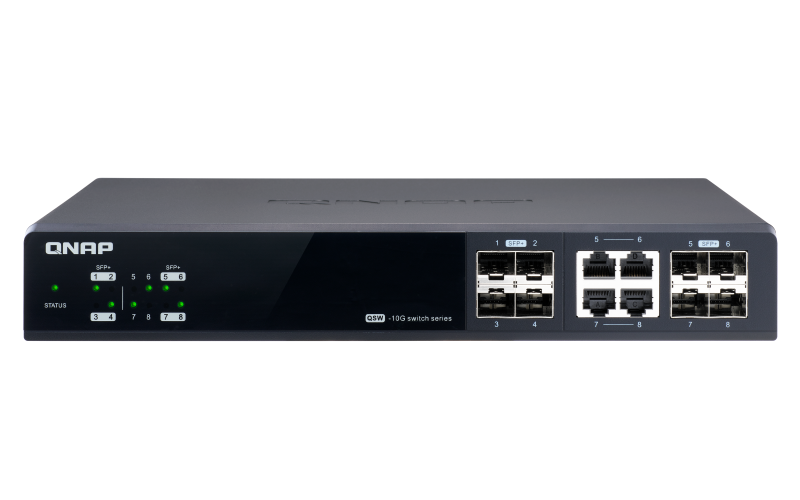

The 8-port QSW-M804-4C switch includes four SFP+ (fiber) ports, and four SFP+/RJ45 (copper) combo ports for connecting different interfaces. With RJ45 interfaces, 10GbE is supported using Cat 6a (or above) cables. Direct Attach Copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-M804-4C is 240 Gbps, guaranteeing the full potential of each port. The QSW-M804-4C is also compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

Note: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

Fully embrace High-Speed Networking with QNAP!

From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M804-4C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.

QSS: Intuitive Network Management Software

The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

  • Sleek Design

    Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.

  • GUI

    The visual illustration matches physical ports for greater usability.

  • Value-added

    With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.

QSS: Human-centered settings guide

QSS provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.





Overview Dashboard

View real-time system information, port connection status and port traffic.













Optimize Network Performance with bandwidth and packet control

The QSW-M804-4C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP VLAN QoS IGMP Snooping
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure. Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network. QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation. IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-M804-4C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL LLDP RSTP Flow Control
– Access controls
– Security system		 – Device disclosure
– Troubleshooting		 – Loop prevention
– Backup path		 – Balance speed
– Jam prevention

Versatile installation and sleek appearance

The QSW-M804-4C features a sleek modern design that blends in with modern digital homes and offices. A Rackmount Kit is included to provide extra installation options.
