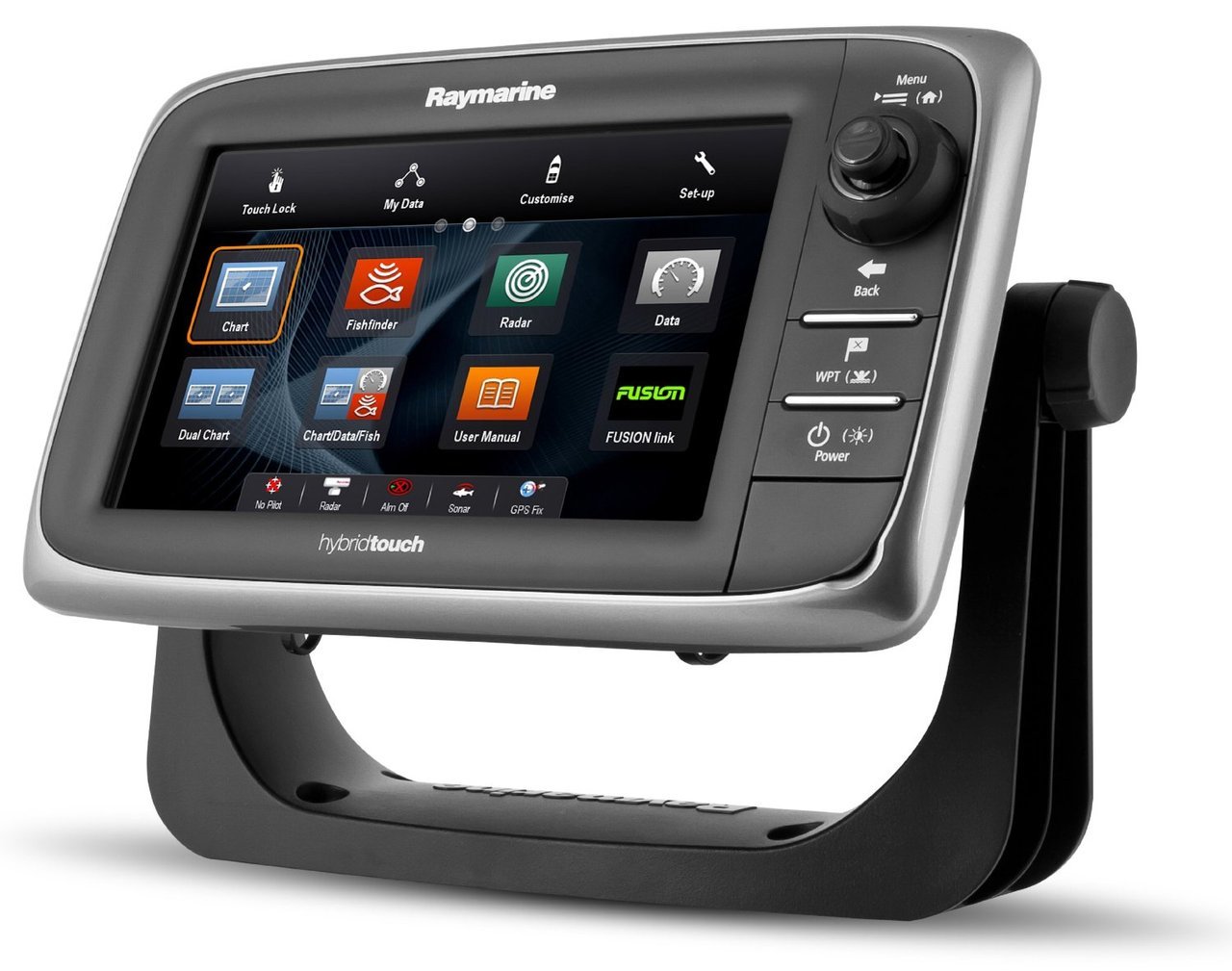

Raymarine e7D 7-Inch Touchscreen Multi-Function Display/Fishfinder with Lighthouse US Coastal Charts

7″ touchscreen color LCD
Built-in GPS & Wi-Fi
Includes Lighthouse basic cartography
Built-in Sounder Module
Wide range of optional network features

Network Multifunction Displays – Chartplotter, Radar, Fishfinder, Thermal and much more…

Harness the full power of Raymarine navigation technologies with eSeries multifunction displays. From the award winning e7 to the big screen e165, Raymarine eSeries displays are the perfect fit. eSeries HybridTouch displays allow simple touch screen control. Or take command with the rotary Unicontroller and keypad – the choice is yours.

Available in 4 sizes – 7″, 9″, 12.1″ or 15.4″

Sunlight viewable, optically bonded display for sharp colour and contrast.

Low power consuming LED backlighting

Dual core processor and a dedicated graphics processor delivers quick redraws and fast response

Powered by LightHouse II

Designed for the way boaters think, Raymarine’s exclusive LightHouse User Interface (UI), offers an incredibly easy-to-use navigation experience. LightHouse intuitively places frequently used navigation functions right at your fingertips.

With just a few swipes of the LightHouse home screen you will quickly become an expert.

e9 and e12 with LightHouse II

Free LightHouse updates are available every few months. Make sure you are up to date with the latest features by installing the latest software.

Multi-Talented

LightHouse makes it easy to customise the display with full or split screen windows of charting, radar, sonar and much more.

Configure your eSeries as a single station display or create a multi-station network with up to eight LightHouse II powered displays.

Superior Built-in Digital Sonar (optional)

Choose built-in Digital sonar or step up to more power and high resolution CHIRP sonar technology with optional sonar modules.

e7D, e97 and e127 are equipped with a 600 Watt digital sonar.

All eSeries models can be networked with Digital, CHIRP and CHIRP DownVision sonar modules.

Powerful LightHouse Chart Engine

Navigate with premium Navionics vector charts including Navionics’ community sourced Sonar charts. Alternatively, choose Raymarine LightHouse freely available vector and raster charts of US, Brazilian and New Zealand waters.


Navionics Cartography	Raymarine US waters raster chart	Raymarine US waters vector chart

Raymarine anywhere onboard

Built-in Wi-Fi

Take control of eSeries from your tablet or smartphone using built-in Wi-Fi and Raymarine mobile apps.

View your chartplotter, sonar, radar, engine data and thermal night vision from anywhere onboard, right in the palm of your hand.

eSeries and tablet

General Specifications

Dimensions

Dimensions eSeries 10-14

	A		B		C		D		E		F
	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
e7/e7D	233	9.17	144	5.67	30	1.18	63.5	2.5	177	6.97	160	6.29
e95/e97	289.6	11.4	173.1	6.81	31.4	1.24	63.9	2.5	212	8.35	160	6.29
e125/e127	353.6	13.92	222	8.74	31.9	1.26	68.9	2.71	256.5	10.1	160	6.29
e165	426	16.8	281.4	11.1	31.4	1.24	69.8	2.75	292	11.5	160	6.29

Nominal voltage

12v / 24v DC
(e7/e7D: 13.8v DC)

Operating voltage range

10.8 – 31.2v DC
(e7/e7D: 10.2 – 15.6v DC)

Power consumption at full brightness

e7: 10 W | e7D: 13.8 W

e95/e97: 16 W maximum

e125/e127: 36W maximum

e165: 45 W maximum

Viewing angles

e7/e7D: 70° left/right and 70°/50° top/bottom

e95/e97/e125/e127: 80° left/right and 80°/60° top/bottom

e165: 80° left/right and 70°/70° top/bottom

Screen resolution

e7/e7D/e95/e97: 800 x 480 pixels

e125/e127/e165: 1280 x 800 pixels

Weight

e7: 1.465kg (3.23lb | e7D: 1.550kg (3.42lb)
e95: 2.165kg (4.77lb) | e97: 2.265kg (4.99lb)
e125: 3.320kg (7.32lb) | e127: 3.450kg (7.6lb)

e165: 5.6kg (12.3lb)

Networking

up to 8 displays plus sensors

Mounting options

Surface mount. Trunnion mount with optional bracket

Operating temperature

-25° to 55°C (13° to 131°F)

Waterproofing

IPX6 and IPX7

Connectivity

SeaTalk^hs (Network) Connectivity

e7/e7D: 1x SeaTalk^hs port. 100Mbits/s. RayNet type
e95/e97/e125/e127/e165: 2x SeaTalk^hs ports. 100Mbits/s. RayNet type

NMEA2000 Connectivity

1x SeaTalk^ng connector

NMEA0183 Connectivity

1x Input and output, 1x input only (4800/38,400 Baud)

Wireless Connectivity

WiFi: 802.11 b/g; Bluetooth: AVRCP 2.1+EDR power class 1.5

Video

All displays have x1 BNC (female) composite video input connector (PAL/NTSC formats).
e95, e97, e125, e127 & e165 displays have a second BNC input plus x1 VGA output via accessory cable (sold separately).
Support for IP cameras.

GPS and Cartography

GPS

Built-in 50 channels; WAAS, EGNOS and MSAS. (e165 requires external GPS sensor)

Cartography

Worldwide base map for non cartography variants. Navionics ready-to-navigate in all other variants. LightHouse Vector and Raster Charts available to download for free here.

Sonar (available on e7D, e97 and e127)

Sonar

ClearPulse with 50/83/200 kHz operating frequencies up to 600W RMS. Sonar transducer port.

In the box

Typical box contents

	1	Sun Cover
	2	Front bezel
	3	Multifunction Display
	4	Gasket
	5	Fixings for surface mounting
	6	Documentation pack
	7	Power and data cable
	8	Trunnion bracket kit (e7 only – not illustrated)
