RF-Links High-Power/High-Gain 60W Wideband Amplifier (400-470 MHz)

Add to Wishlist
Key Features
  • High-Power Linear RF Amplifier
  • For UHF Broadcasts
  • 60W Power Output, 38 dB Gain
  • 400-470 MHz Frequency Range
  • 50 Ohms RF Input/Output, BNC Female

6,499.00 د.إ

Add to Wishlist

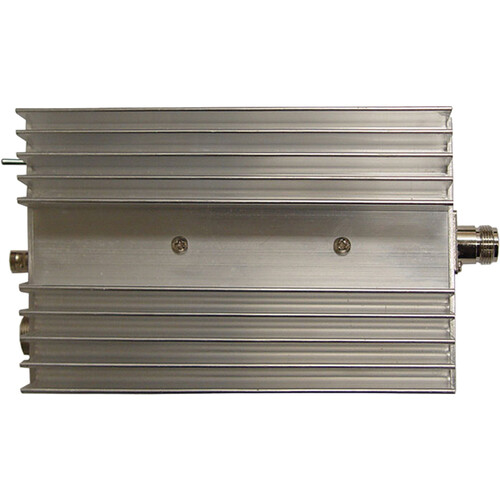

RF-Links ZH-4047/60-1 Overview

Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this High-Power/High-Gain 60W Wideband Amplifier from RF-Links. The class AB amplifier has been designed for professional UHF operation and provides 50-ohm RF input and output, 38 dB gain, and up to 60W RF power output. It supports transmitters in the 400 to 470 MHz broadband frequency range. This unit features BNC female input and output and it requires a separately available 12V power supply.

Key Features
  • Ideal for UHF broadcasts
  • 400 to 470 MHz frequency range with maximum of 520 MHz
  • 60W output power
  • Solid-state Class AB linear design
  • Compact, lightweight, rugged, and reliable
  • 50-ohm input/output impedance
  • Requires 12-14V power supply
SKU: ZH-4047/60-1 Category: Tag:
General
Impedance
50 Ohms Input/Output
Operating Frequency
400 to 470 MHz (520 MHz Max)
Power Output
60 W
Gain
38 dB
Inputs / Outputs
Video I/O
1x BNC Input
1x BNC Output
Power
Power Source
Proprietary Interface
DC Input Power
12 to 14 VDC at 6.9 A
Operating Temperature
-8 to 107°F / -40 to 75°C
Physical
Dimensions
6 x 4 x 2″ / 15.2 x 10.2 x 5.1 cm
Weight
13.4 oz / 380 g
