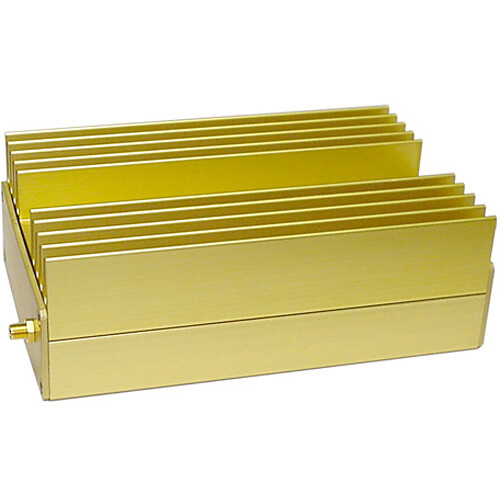

RF-Links Laboratory Grade High Power Amplifier 5W (1200-1400 MHz)

Add to Wishlist
Key Features
  • High-Power Linear RF Amplifier
  • For FM Exciters, Labs, Experimentation
  • 5W Power Output, 30 dB Gain
  • 1.2 to 1.4 GHz Frequency Range
  • 50 Ohms RF Input/Output, SMA Female

د.إ4,999.00

Add to Wishlist

RF-Links ZH-1214/L Overview

Add a powerful but compact, high-power linear RF amplifier to your laboratory or experimental broadcast platform with this Laboratory Grade High-Power Amplifier 5W from RF-Links. The class AB amplifier has been designed for professional test operation and provides 50-ohm RF input and output, 18 dB gain, and up to 5W RF power output. It supports transmitters in the 1.2 to 1.4 GHz broadband frequency range. This unit features SMA female input and output.

Key Features
  • Ideal for broadband laboratory, RF power exciters, and experiments
  • 1.2 to 1.4 GHz frequency range
  • 5W output power
  • Solid-state Class AB linear design
  • Compact, lightweight, rugged, and reliable
  • 50-ohm input/output impedance
SKU: ZH-1214/L Category: Tag:

RF-Links ZH-1214/L Specs

General
Frequency Range
1200 to 1400 MHz
Power Output
5 W (Maximum)
Gain
30 dB
Impedance
50 Ohms
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
12 to 14 VDC at 2 A
Operating Current
2 A (Typical)
Operating Temperature
7 to 102°F / -25 to 70°C
Physical
Dimensions
6 x 4 x 2″ / 15.2 x 10.2 x 5.1 cm
Weight
10.6 oz / 300 g
