RF-Links Wideband 2W Microwave Amplifier (10 MHz-6 GHz)

Add to Wishlist
Key Features
  • Medium-Power Linear RF Amplifier
  • For Lab, Research, Military Applications
  • 2W Power Output, 15.9 dB Gain
  • 10 MHz-6 GHz Frequency Range
  • 50 Ohms Input/Output, SMA Connectors

AED12,499.00

Add to Wishlist

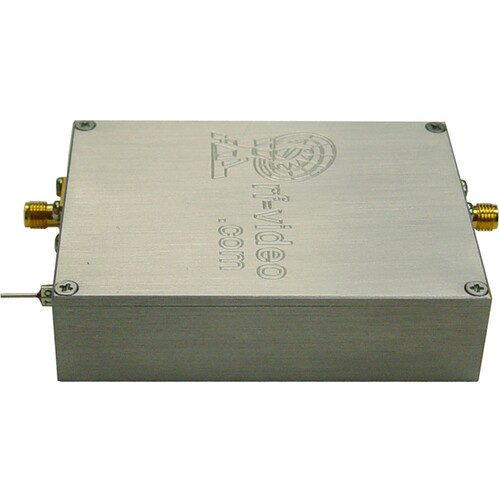

RF-Links ZHM-6G/2Ā Overview

Add a powerful but compact, high-power linear RF amplifier to your broadcast platform with thisĀ Wideband 2W Microwave AmplifierĀ fromĀ RF-Links. The aluminum amplifier has been designed for research, military communications, and laboratory testing applications, 50 ohms input/output impedance, 15.9 dB gain, and up to 2W RF power output. It supports transmitters in the 10 MHz to 6 GHz broadband frequency range. This unit features SMA female input and output and it requires a separately available power supply.

Key Features
  • Ideal for research, military communications, and laboratory testing applications
  • 10 MHz to 6 GHz frequency range
  • 2W output power
  • Compact, lightweight, rugged, and reliable
  • 50 ohms input/output impedance
SKU: ZHM-6G/2 Categories: , Tag:
General
Frequency Range
10 MHz to 6 GHz
Power Output
2 W
Gain
15.9 dB Typical
Impedance
50 Ohms (Input/Output)
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
28 VDC at 0.8 A
Power Consumption
9 W
Physical
Dimensions
Not Specified by Manufacturer
Weight
Not Specified by Manufacturer
