Rocstor Enteroc S620 SAS Dual Controller RAID Enclosure

Add to Wishlist

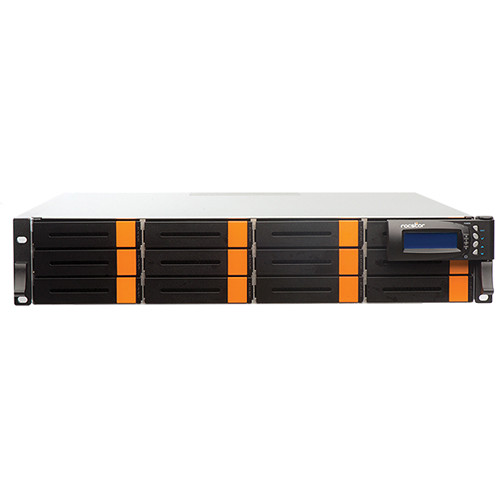

The Rocstor Enteroc S620 SAS Dual Controller RAID Enclosure features two controllers along with twelve 3.5″ drive bays in a 2U rack-mountable form factor. Inside its twelve hot swappable bays are interfaces that can support SAS or SATA 3.5″ hard drives. For added reassurance, it is equipped with redundant 400W power supplies and offers RAID support. Additionally, it is equipped with four SAS 6 Gb/s interfaces.

33,810.00 د.إ

Add to Wishlist

Rocstor S620-D External HDD/SSD Overview

The Rocstor Enteroc S620 SAS Dual Controller RAID Enclosure features two controllers along with twelve 3.5″ drive bays in a 2U rack-mountable form factor. Inside its twelve hot swappable bays are interfaces that can support SAS or SATA 3.5″ hard drives. For added reassurance, it is equipped with redundant 400W power supplies and offers RAID support. Additionally, it is equipped with four SAS 6 Gb/s interfaces.

This enclosure is outfitted an 800 MHz dual-core RAID-On-Chip processor that is well designed to manage data. Moreover, it supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD to provide data redundancy, performance, or both. Further storage expansion is made possible by connecting an optional SAS expansion chassis to one of the two 6 Gb/s SAS expansion ports.

Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
Supports online array roaming
Online RAID level/stripe size migration
Online capacity expansion and RAID level migration simultaneously
Supports global and dedicated hot spare
Online Volume Set Expansion
Supports multiple array enclosures per host connection
Greater than 2TB per volume set (64-bit LBA support)
Greater than 2TB per disk drive
Supports 4K bytes/sector for Windows up to 16TB per volume set
Disk scrubbing / array verify scheduling for automatic repair of all configured RAID sets
Login record in the event log with IP address and service (http, telnet, and serial)
Supports intelligent power management to save energy and extend service life
Supports NTP protocol to synchronize RAID controller clock over the on-board LAN port
Max 128 LUNs (volume set)
Transparent data protection for all popular operating systems
Instant availability and background initialization
Supports S.M.A.R.T, NCQ, and OOB Staggered Spin-up capable drives
Supports hot swap and automatic hot rebuild
Local audible event notification alarm
Redundant flash image for high availability
Real time clock support
SKU: S620 SAS Category: Tag:

Rocstor S620-D External HDD/SSD Specs

Model Details
Controller Dual
Host Interface 4 x SAS (6 Gb/s)
Disk Interface 6 Gb/s SAS, 6 Gb/s SATA
Expansion 2 x SAS (6 Gb/s)
Supports up to 96 disks
Capacity Holds 12 disks
Processor 800 MHz RAID-On-Chip storage processor
Cache Memory 1GB to 4 GB DDR2-800 ECC Registered SDRAM
Battery Backup Optional
Management Port Supported
Support
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
Array Size Up to 128
LUNs Up to 128
Supported Features Hot spare
Drive roaming
Online rebuild
Variable stripe size
E-mail notification
Online capacity expansion, RAID level / stripe size migration
Online array roaming
Online consistency checker
SMTP manager and SNMP agent
Redundant flash image
Instant availability and background initialization
SMART support
MAID 2.0
Bad block auto-remapping
Enclosure
Platform 2U rackmount
Bays 12 hot-swap trays
Tray lock
Indicators Access / Fail LED
Backplane SAS II / SATA III single backplane
Fans 2
Power 2 x 400 W with PFC
90 to 264 VAC, 4 to 7.5 A, 47 to 63 Hz
Physical & Environmental
Humidity (Non-condensing) 10 to 85%
Temperature Operating: 50 to 104°F / 10 to 40°C
Dimensions 23.2 x 19.0 x 3.5″ / 590.0 x 482.0 x 88.0 mm
Weight 45.4 lb / 20.6 kg
