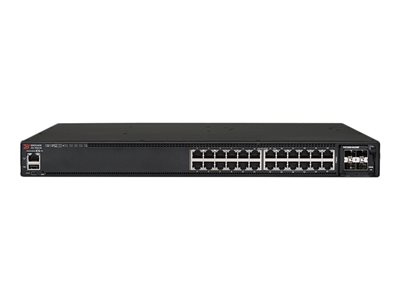

Ruckus ICX 7450-24 – switch – 24 ports – managed – rack-mountable ICX7450-24
Availability:
10 in stock
AED9,999.00
10 in stock
Ruckus Wireless 24 Port Bundle 3X40G QSFP
Overview
The Ruckus ICX 7450 delivers unprecedented scale-out density with enterprise-class availability. With SDN support, a service module for IPsec VPN, and 40 GbE ports for uplinks all in a stackable design, these switches enable services to be added anywhere in the network. The switch also makes a suitable data center Top-of-Rack (ToR) solution, providing a ToR access-layer in the future with minimum costs and changes to cabling.
- PoE/PoE+/PoH (95W) to power video surveillance, VDI terminals, and HD displays
- Expansion slots accept modules with different uplink speeds and services
- Site-to-site IPsec VPN service module eliminates dedicated encryption devices
- Programmable hardware technology, enabling more features to be added to IPsec VPN deployments
Specifications
General
| Device Type | Switch – 24 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| Performance | Switching capacity: 288 Gbps Forwarding performance: 214 Mpps |
| Capacity | Virtual interfaces (VLANs): 4096 Spanning Tree Protocol instances: 254 IPv4 routes: 16000 IPv6 routes: 3000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 12 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, High Availability, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), IPv4 support, LACP support, DHCP relay, Port Security, Per-VLAN Rapid Spanning Tree (PVRST), port based access control, Energy Efficient Ethernet, Management Information Base (MIB), hot swappable fan, Strict Priority (SP), tagged VLAN, IGMP proxy, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, MACsec support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az |
Expansion / Connectivity
| Interfaces | 24 x 1000Base-T RJ-45 1 x USB Type A 1 x 1000Base-T RJ-45 management 1 x mini-USB management |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 3 (max) |
Power
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Consumption Operational | 69 Watt |
Miscellaneous
| MTBF | 399,973 hours |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, EN 60825-2, IEC 60950-1 Second Edition, VCCI Class A, EN 60950-1:2006 |
Software / System Requirements
| OS Required | IBM AIX, SunSoft Solaris, HP-UX, Microsoft Windows |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 15.5 in |
| Height | 1.7 in |
| Weight | 14.11 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty – lifetime |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 – 95% (non-condensing) |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Capacity | Virtual interfaces (VLANs): 4096 ¦ Spanning Tree Protocol instances: 254 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 3000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Device Type | Switch – 24 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | Flow control, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, High Availability, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), IPv4 support, LACP support, DHCP relay, Port Security, Per-VLAN Rapid Spanning Tree (PVRST), port based access control, Energy Efficient Ethernet, Management Information Base (MIB), hot swappable fan, Strict Priority (SP), tagged VLAN, IGMP proxy, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, MACsec support |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 32000 entries |
| Max Units In A Stack | 12 |
| Performance | Switching capacity: 288 Gbps ¦ Forwarding performance: 214 Mpps |
| Ports | 24 x 10/100/1000 |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 15.5 in |
| Height | 1.7 in |
| Weight | 14.11 lbs |
| Width | 17.3 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Humidity Range Storage | 0 – 95% (non-condensing) |
| Max Operating Temperature | 122 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 23 °F |
| Min Storage Temperature | -13 °F |
| Expansion / Connectivity | |
|---|---|
| Expansion Slots | 3 (total) / 3 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 3 (max) |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – lifetime |
| Miscellaneous | |
|---|---|
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, EN 60825-2, IEC 60950-1 Second Edition, VCCI Class A, EN 60950-1:2006 |
| Power | |
|---|---|
| Installed Qty | 0 (installed) / 2 (max) |
| Power Consumption Operational | 69 Watt |
| Power Device | Internal power supply – hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Software / System Requirements | |
|---|---|
| OS Required | IBM AIX, SunSoft Solaris, HP-UX, Microsoft Windows |
