Switches

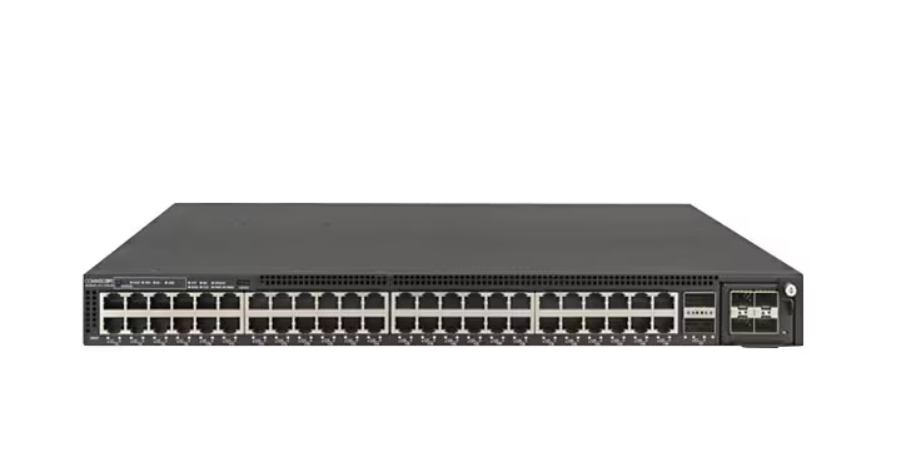

Ruckus ICX 7550-48P-E2 – switch – 48 ports – managed – rack-mountable
Quick tech specs
- 48P-E2
- L3
- 48 x 10/100/1000 (PoE+) + 2 x 40 Gigabit QSFP+ (uplink/stacking)
- rack-mountable
- Switch
- managed
- front to back airflow
- PoE+ (2000 W)
AED62,099.00
Know your gear
The CommScope RUCKUS® ICX® 7550 Series of midrange stackable switches are purpose-built to provide wired connectivity at the edge of the network for Wi-Fi Access-Points. It delivers the performance, flexibility and scalability required for demanding campus deployment scenarios.
| Category | Specification |
|---|
| Overview |
| Brand | Ruckus |
| Product Line | Ruckus ICX |
| Model | 7550-48P-E2 |
| Manufacturer | Ruckus Wireless |
| Memory |
| Flash Memory Installed | 4 GB |
| RAM Installed | 4 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Features | 3 fans, 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, In-Service Software Upgrade (ISSU), Inter-Packet Gap (IPG) adjustment, IPv4 support, IPv6 support, Link Fault Signaling (LFS), LLDP support, LLDP-MED, Long-Distance stacking (LD-VCStack), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Media Access Control Security (MACsec), Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, Voice VLAN, Web authentication, Weighted Round Robin (WRR) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 12288 bytes |
| Manageable | Yes |
| Max Units In A Stack | 12 |
| PoE Budget | 2000 watt |
| Ports | 48 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Remote Management | CLI, HTTP, HTTPS, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP |
| Routing Protocol | BGP, ECMP, OSPF, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Expansion Slots |
| Expansion Slots | 1 expansion slot |
| Connectivity |
| Interface Provided | 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 2 x 40Gbit LAN QSFP+ uplink/stacking, 48 x 1000Base-T RJ-45 PoE+ – 90 W |
| Port Quantity | 48 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | 40 Gigabit QSFP+ (uplink/stacking) |
| Power |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 1131.6 watt |
| Power Provided | 1200 watt |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Redundant Power Supply Supported | 1+1 |
| Technical Information |
| Encryption | AES |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Max Operating Temperature | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | 304,125 Hours |
| Operating Humidity | 10 – 90% (non-condensing) |
| Product Information |
| Airflow Direction | Front to back airflow |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+ |
| Capacity | Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128 |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Aggregate stacking bandwidth: 960 Gbps, Forwarding capacity: 309 Mpps, Switching capacity: 416 Gbps |
| Ports (2nd) Quantity | 2 |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 15.65 lbs |
| Width | 17.3 inch |
| Depth | 16 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
