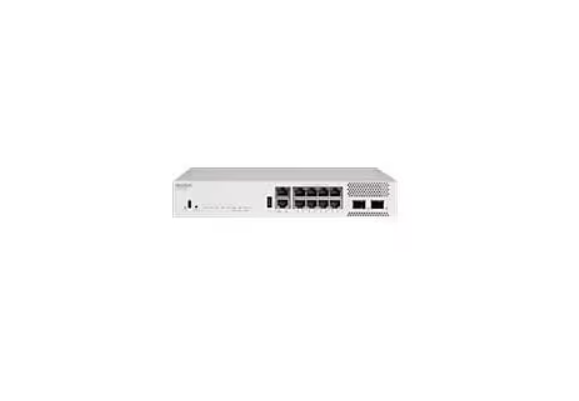

Ruckus ICX 8200-C08PF – switch – 8 ports – managed

Add to Wishlist

Quick tech specs

  • Number of Ports: 8

AED10,099.00

Add to Wishlist

Know your gear

The Ruckus Class 4 PoE Switch is designed to handle wireless first and IoT campus networks. This intelligent, scalable edge switch delivers enterprise-class functionality at an affordable price without compromising performance and reliability. This switch comes with eight ports.
SKU: ICX8200-C08PF Category: Tag:
Category Details
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 8200-C08PF
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 8 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.3at, IEEE 802.3az
Features ARP support, BOOTP support, DDoS attack prevention, DHCP support, Flow control, MAC address filtering, Metro Ring Protocol (MRP) support, PIM snooping, Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches) Desktop
Jumbo Frame Support 9216 bytes
MAC Address Table Size 32K entries
Manageable Yes
Max Units in a Stack 12
PoE Budget 124 watt
Ports 8
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol GRE, OSPF, Static IPv4 routing, Static IPv6 routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Connectivity
Interface Provided 1 x RJ-45 out-of-band network management, 1 x serial RJ-45 console management, 1 x USB Type A storage, 1 x USB-C console management, 2 x Gigabit SFP / 10 Gb SFP+ SFP+, 8 x 10/100/1000 Base-T (PoE+) RJ-45
Port Quantity 8
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Power
Frequency 50 – 60 hertz
Power Provided 240 watt
Power Supplies Installed 1
Power Supplies Supported 1
Required Voltage AC 100-240 volt
Technical Information
Encryption AES
Max Operating Temperature 113 degrees Fahrenheit
Min Operating Temperature 32 degrees Fahrenheit
MTBF 2,007,069 Hours
Operating Humidity 10 – 90% RH (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity ARP entries: 8192, Maximum number of VLANs: 4095, PVLANs supported: 32, STP instances: 253
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance (full duplex): 42 Mpps, Stacking bandwidth: 240 Gbps, Switching capacity (full duplex): 56 Gbps
Ports (2nd) Quantity 2
Dimensions & Weight
Height 1.7 inch
Weight 5 lbs
Width 10.6 inch
Depth 8.4 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CAN/CSA-C22.2 No. 62368-1, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A
