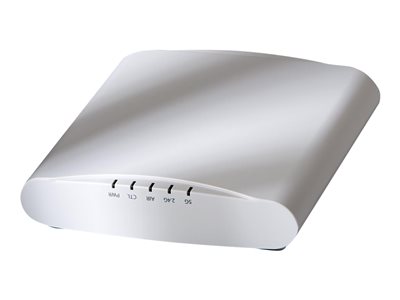

Ruckus ZoneFlex R510 – wireless access point 901-R510-US00

Availability:

10 in stock


AED1,999.00

10 in stock

Ruckus Wireless Zoneflex R510 Unleashed Indoor 802.11ac Wave 2 2×2:2 WiFi Access Point



Overview

The Ruckus ZoneFlex R510 indoor AP is optimized for mid-sized organizations requiring higher performance and support for more devices.

Mid-sized businesses, branch offices, schools, hotel chains, retail outlets, restaurants, multi-tenant office buildings, hotspots – these are just some of the environments where high-speed, easy to manage Wi-Fi is critical to productivity, revenue generation, and customer satisfaction.

This mid-range 802.11ac Wave 2 wireless access point incorporates top performance patented technologies found only in the Ruckus Wi-Fi portfolio.

BeamFlex+ adaptive antenna technology directs each packet over the best performing signal path, extending coverage range and mitigating interference automatically. ChannelFly technology chooses the best channel to give users the highest throughput – delivering up to 50 percent capacity gain over competitive dynamic channel selection approaches.

Whether organizations are deploying ten or ten thousand APs, the R510 is also easy to manage through the appliance, virtual and cloud management options.

The R510: Supports up to 512 clients on a single AP; Supports more services – including streaming HD media, cloud applications, web browsing, and email; Easily handles the transmission of challenging content – including jitter and latency sensitive streaming HD media; Uses fewer APs to cover more area with extended range capabilities; Improves throughput automatically delivering up to 50 percent capacity gains; Provides more more wireless coverage and reduces costs with less cable runs; Reduces costs with support for both standard PoE and PoE+.

MU-MIMO

MU-MIMO helps Wave 2 and non-Wave 2 clients. The R510 can communicate simultaneously to multiple Wave 2 clients increasing network performance. This frees up airtime for non-Wave 2 clients resulting in enhanced aggregate network throughput.

Advanced WLAN applications

When used with the Ruckus WLAN controllers, each ZoneFlex R510 supports a wide range of value-added applications such as BYOD/guest onboarding, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. WLANs can be created and mapped to the same or different APs or VLANs. In a centrally managed configuration, the ZoneFlex R510 works with a wide range of authentication servers including Microsoft’s Active Directory, LDAP, and RADIUS.

Flexible deployment options

ZoneFlex R510 APs can be deployed as a standalone AP or as part of a centrally managed wireless LAN using ZoneDirector or SmartZone Smart WLAN controllers. ZoneFlex R510 can be deployed across any L2/L3 network and can bridge traffic onto the local network, tunnel to a central location using L2TP, or route between the WAN and NAT’ed private subnets. With the Ruckus controllers, each ZoneFlex R510 is automatically configured through the network making deployment quick and easy.

Complete local and remote management

Each Zoneflex R510 can be managed by the ZoneDirector controller or the SmartZone controllers like SZ100, SCG200 or the vSZ. The controllers enable local management and control of APs, adding value-added services such as centralized AP provisioning, management and control at high scale.





SKU: 901-R510-US00 Category: Tags: , ,
General
Device Type Wireless access point
Width 6.5 in
Depth 6.2 in
Height 1.6 in
Weight 12.34 oz
Localization United States
Networking
Form Factor External
Connectivity Technology Wireless
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, TR-069
Frequency Band 2.4 GHz, 5 GHz
Capacity Concurrent stations: 512Ā Simultaneous VoIP clients: 30
Status Indicators Power, status
Features Routing, DHCP support, NAT support, power over Ethernet (PoE), load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), security lock slot (cable lock sold separately), BeamFlex+ Smart Antenna Technology, MU-MIMO technology, beamforming technology
Encryption Algorithm AES, WPA2, WPA-PSK
Authentication Method RADIUS, LDAP, Active Directory
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac
Antenna
Antenna Internal
Expansion / Connectivity
Interfaces 1 x 1000Base-T (PoE) – RJ-45Ā 1 x 1000Base-T – RJ-45Ā 1 x USB 2.0 – Type A
Miscellaneous
Compliant Standards UL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1
Power
Power Over Ethernet (PoE) Supported PoE
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 95% (non-condensing)
General
Depth 6.2 in
Device Type Wireless access point
Height 1.6 in
Localization United States
Weight 12.34 oz
Width 6.5 in
Antenna
Antenna Internal
Environmental Parameters
Humidity Range Operating 10 – 95% (non-condensing)
Max Operating Temperature 122 °F
Min Operating Temperature 32 °F
Expansion / Connectivity
Interfaces 1 x 1000Base-T (PoE) – RJ-45 ¦ 1 x 1000Base-T – RJ-45 ¦ 1 x USB 2.0 – Type A
Miscellaneous
Compliant Standards UL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1
Networking
Authentication Method RADIUS, LDAP, Active Directory
Capacity Concurrent stations: 512 ¦ Simultaneous VoIP clients: 30
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac
Connectivity Technology Wireless
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Encryption Algorithm AES, WPA2, WPA-PSK
Features Routing, DHCP support, NAT support, power over Ethernet (PoE), load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), security lock slot (cable lock sold separately), BeamFlex+ Smart Antenna Technology, MU-MIMO technology, beamforming technology
Form Factor External
Frequency Band 2.4 GHz, 5 GHz
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, TR-069
Status Indicators Power, status
Power
Power Over Ethernet (PoE) Supported PoE
