S2700-26TP-PWR-EI 02352336 Huawei Quidway S2700 Switch

Add to Wishlist
Model: S2700-26TP-PWR-EI 02352336 Huawei Quidway S2700 Switch
Detail:
S2700-26TP-PWR-EI Mainframe(24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module)

AED3,299.00

Add to Wishlist

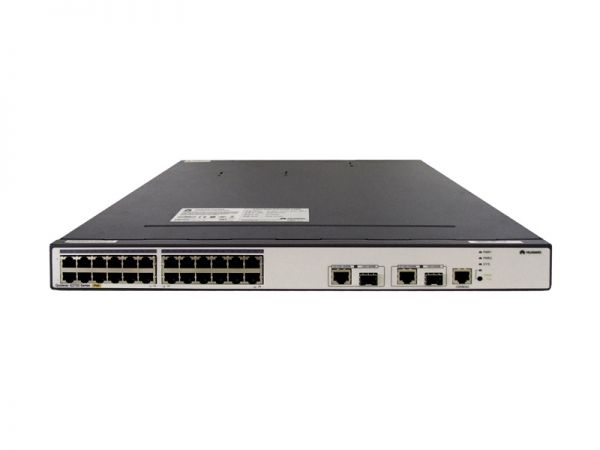

HUAWEI S2700-26TP-PWR-EI is the new generation layer 2 intelligence switch and it comes with 24 POE+ Fast Ethernet ports to support up to 30W per port.

Quick Specs

Table 1 shows the Quick Specs.

Product Code S2700-26TP-PWR-EI
Downlink Ports 24 Ethernet 10/100 ports
Uplink Ports 2 dual-purpose 10/100/1,000 or SFP
PoE Supported
Forwarding Performance 6.6 Mpps
Switching Capacity 32 Gbit/s
Power AC power supply
Heat Dissipation Pluggable fan modules for forced air cooling
Dimensions (W x D x H) 44.2 cm x 42 cm x 4.36 cm
Weight ā‰¤ 8 kg (17.64 lb)



Note:

ā‘  Twenty-four PoE+ 10/100BASE-TX ports
ā‘” Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)
ā‘¢ One console port



Note:

ā‘  Ground screw ā‘£ Power module slot 2
ā‘” ESD jack ā‘¤ Power module slot 1
ā‘¢ Fan slot

Power Module Slots support 250W AC PoE power module or 500W AC PoE power module.

Table 2 shows the Power Supply Configuration.

Power Module 1 Power Module 2 Available PoE Power Maximum Number of Ports (Fully Loaded)
250 W ā€“ 123.2 W 802.3af (15.4 W per port): 8

802.3at (30 W per port): 4
500 W ā€“ 369.6 W 802.3af (15.4 W per port): 24

802.3at (30 W per port): 12
250 W 250 W 246.4 W 802.3af (15.4 W per port): 16

802.3at (30 W per port): 8
500 W 500 W 739.2 W 802.3af (15.4 W per port): 24

802.3at (30 W per port): 24



SKU: S2700-26TP-PWR-EI 02352336 Category: Tags: ,

S2700-26TP-PWR-EI Specifications
Product Model S2700-26TP-PWR-EI
Ethernet Ports 24 x 10/100 Ethernet ports
Dual-purpose Ports 2 x 10/100/1000 Ethernet or SFP ports
Memory (RAM) 64 MB
Flash 16 MB
Dimensions (H x W x D) 1.72 in. x 17.4 in. x 16.5 in
RPS Not supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption 808 W
Operating Temperature 0Ā°C to 45Ā°C
Operating Humidity 5% to 95% (non-condensing)
