Network Switches & Routers

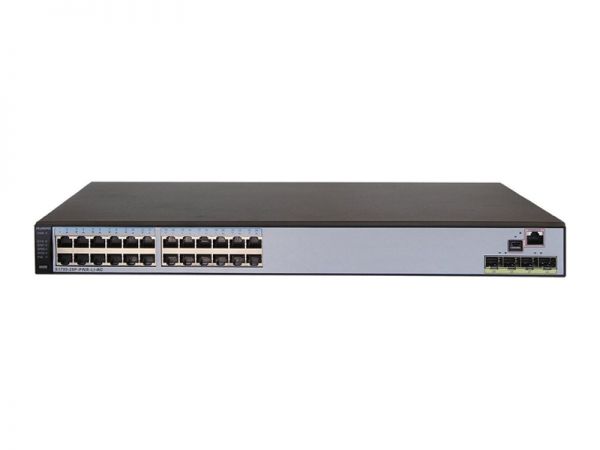

S5700-28P-PWR-LI-AC 02353175 Huawei Quidway S5700 Switch
| Model: | S5700-28P-PWR-LI-AC 02353175 Huawei Quidway S5700 Switch |
| Detail: |
24 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V
|
AED6,099.00
Huawei S5700-28P-PWR-LI-AC is Layer 2 Ethernet Stackable Switch, supporting 24 x PoE+ 10/100/1000BASE-T ports and 4 x GE SFP Ports.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | S5700-28P-PWR-LI-AC |
| Downlink Ports | 24 x PoE+ 10/100/1000BASE-T ports |
| Uplink Ports | 4 x GE SFP Ports |
| MAC Address | 16K |
| VLAN | 4K |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack ports | -V200R001: the last two uplink 1000Base-X optical ports
-V200R002 and later versions: four uplink 1000Base-X optical ports |
| Power | AC 110/220V & RPS1800 power supply |
| Heat Dissipation | Forced air cooling by Built-in fans |
| Memory (RAM) | 256 MB |
| Flash | -V200R001: 64 MB
-V200R002 and later versions: 200 MB |
| Dimensions (W x D x H) | 442.0 mm x 310.0 mm x 43.6 mm |
Note:
| ā | 24 x PoE+ 10/100/1000BASE-T ports | ā¢ | One console port |
| ā” | Four 1000BASE-X ports | ā£ | One mini USB port |
Four 1000BASE-X ports support modules and cables:
– GE optical module
– GE-CWDM optical module
– GE-DWDM optical module
– GE copper module (applicable in V200R002C00 and later versions)
– Stack optical module (applicable in V200R007C00 and later versions)
– 1 m and 10 m SFP+ copper cables
– 3 m and 10 m AOC cables (applicable in V200R003C00 and later versions)
Note:
| ā | Ground Screw | ā¢ | Jack for AC Terminal Locking Latch |
| ā” | RPS Socket | ā£ | AC Socket |
Ā·Ground Screw is used with a ground cable.
Ā·RPS Socket is used with an RPS cable which is not hot swappable.
Ā·AC socket is used with an AC power cable.
Ā·The AC terminal locking latch is not delivered with the switch.
S5700-28P-PWR-LI-AC Specification |
|
| Manufacturer | Huawei |
| Manufacturer Part Number | S5700-28P-PWR-LI-AC |
| Form Factor | Fixed, Stackable |
| Switch Port | 24 GE POE ports, 4 GE SFP ports |
| Power Over Ethernet (PoE) | PoE+ |
| Max Number of Stacks | 48Gbps |
| DRAM Memory | 256 MB |
| Flash Memory | 32 MB |
| Performance | |
| Forwarding performance | 42 Mpps |
| MAC address table | IEEE 802.1d compliance |
| 16 K MAC address entries | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4 K VLANs |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| E-Trunk | |
| IP routing | Static routing, ECMP |
| RIPv1, RIPv2 and RIPng | |
| IPv6 features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| MLD v1/v2 snooping | |
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination | |
| MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| Management | |
| Management and maintenance | |
| Power Supply Specifications | |
| Power Device | Power supply – Non-PoE |
| Power Redundancy | No |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Width | 42cm |
| Depth | 31cm |
| Height | 4.36cm |
| Weight | 4.9kg |
| MTBF | 37years |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
