S5700S-52X-LI-AC-Huawei S5700 Series Switch

Model:	S5700S-52X-LI-AC-Huawei S5700 Series Switch
Detail:	Huawei S5700 Series Switch, 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V

6,099.00 د.إ

Huawei S5700 Series Switch, 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V.

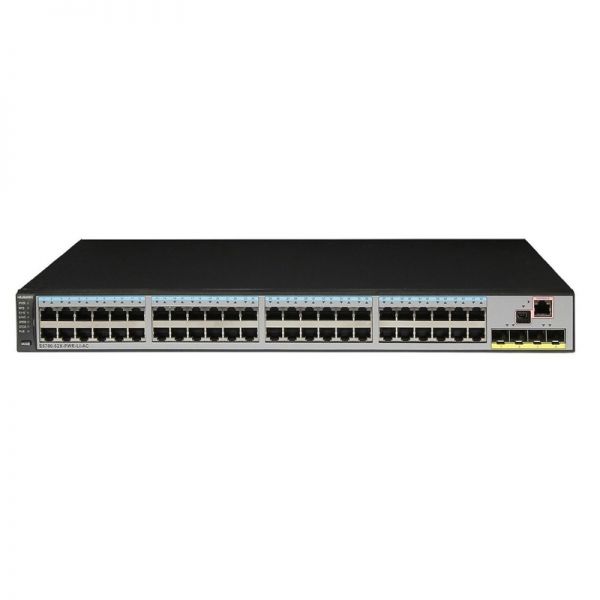

Figure 1 shows the appearance of S5700S-52X-LI-AC

Table 1 shows the Quick Specs.

Memory (RAM)	512 MB
Flash	240 MB
Mean time between failures (MTBF)	86.64 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.)
Weight (including packaging materials)	5 kg (11.02 lb)
Stack ports	Four uplink 10GE SFP+ ports
RTC	Supported
RPS	Supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	54.7 W
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption	34.4 W
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 50.2 dBA
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)

Figure 2 shows the appearance and structure of S5700S-52X-LI-AC

Note:

①	Forty-eight 10/100/1000BASE-T ports
②	Four 10GE SFP+ ports
③	One ETH management port
④	One console port
⑤	One USB port
⑥	Ground screw
⑦	RPS socket
⑧	Jack for AC terminal locking latch
⑨	AC socket

S5700S-52X-LI-AC Apecification
Memory (RAM)	512 MB
Flash	240 MB
Mean time between failures (MTBF)	86.64 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.)
Weight (including packaging materials)	5 kg (11.02 lb)
Stack ports	Four uplink 10GE SFP+ ports
RTC	Supported
RPS	Supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	54.7 W
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption	34.4 W
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 50.2 dBA
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
