S5710-52C-EI 02353169 Huawei Quidway S5700 Switch

Model:	S5710-52C-EI 02353169 Huawei Quidway S5700 Switch
Detail:	48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots

18,799.00 د.إ

Huawei S5710-52C-EI is one of the S5700 Series Switches.S5700 Series Switches provide highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers.

Quick Specs

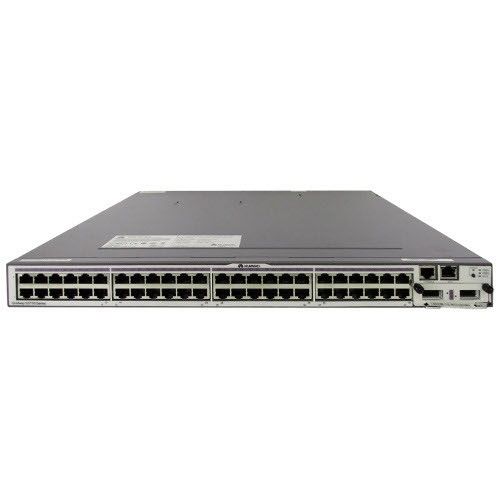

Figure 1 shows the appearance of S5710-52C-EI.

Table 1 shows the Quick Specs.

Product Code	S5710-52C-EI
Extended Slots	two extended slots that support uplink sub-cards
Subcards supported	2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard
Switching Capacity	416 Gbit/s
Forwarding Performance	192 Mpps
Fixed Interfaces	48 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports
Power Supply	Double hot-swappable AC/DC power supplies
Memory (RAM)	512 MB
Flash	V200R001: 64 MB V200R002 and later versions: 200 MB
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.75 in.)
Weight	Empty: ≤ 6 kg (13.23 lb) Fully loaded: ≤ 10 kg (22.05 lb)

Product Details

Figure 2 shows the front panel of S5710-52C-EI.

Note:

①	Forty-eight 10/100/1000BASE-T ports
②	Four 10GE SFP+ ports
③	ETH management port
④	One mini USB port
⑤	One console port
⑥	One USB port

Figure 3 shows the back panel of S5710-52C-EI.

Note:

①	Ground screw
②	Rear card slot 1
③	Rear card slot 2
④	ESN label
⑤	Power module slot 2
⑥	Power module slot 1

·You can draw ESN label out to view the ESN and MAC address of the switch.
·The switch doesn’t provide power supply. The AC or DC power supply must be purchased separately.

The Modules, Cards

Table 2 shows the recommended elements for the S5710-52C-EI.

Model	Description
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)
GE Copper Transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
10GE Interface Card
ES5D21X02S00	2 10 Gig SFP+ interface card (used in S5710EI series)
GE Interface Card
ES5D21G08T00	8 Ethernet 10/100/1000 ports interface card(used in S5710EI series)
ES5D21G08S00	8 Gig SFP interface card(used in S5710EI series)

Compare to Similar Items

Table 3 shows the comparison of S5710-52C-EI ,S5700-28C-EI and S5710-28C-PWR-EI-AC.

Product Code	S5710-52C-EI	S5710-28C-PWR-EI-AC	S5700-28C-EI
Switching Capacity	416 Gbit/s	416 Gbit/s	256 Gbit/s
Forwarding Performance	192 Mpps	156 Mpps	96 Mpps
Fixed Interfaces	48 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports	24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+ ports	24 x 10/100/1,000 Base-T
PoE Available	No	PoE+	No
Extended Slots	two extended slots for uplink subcards.	two extended slots for uplink subcards.	two extended slots, one for an uplink subcard and the other for a stack card.

Category: Network Switches & Routers

S5710-52C-EI Specifications
Product Model	S5710-52C-EI
Number of Ethernet Ports	48
Ethernet Speed	10/100/1000Mbps
Number of 10 Gig SFP+ Ports	4
Number of Interface Slots	2
Connector type	RJ45
Working mode	10/100 Mbit/s auto-sensing
Memory (RAM)	512 MB
Flash	V200R001: 64 MB，V200R002 and later versions: 200 MB
Dimensions (H x W x D)	1.75 in. x 17.4 in. x 16.5 in
RPS	Not supported
PoE	Not supported
Rated voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	5% to 95% non-condensing
Maximum voltage range	442mm x 420mm x 44.4mm (17.4″ x 16.5″ x 1.7″)
