S5720-52X-PWR-SI-DC

Detail:	S5720-52X-PWR-SI-DC (48 Ethernet 10/100/1000 PoE+ ports,4 10 Gig SFP+,with 650W DC power)

AED9,499.00

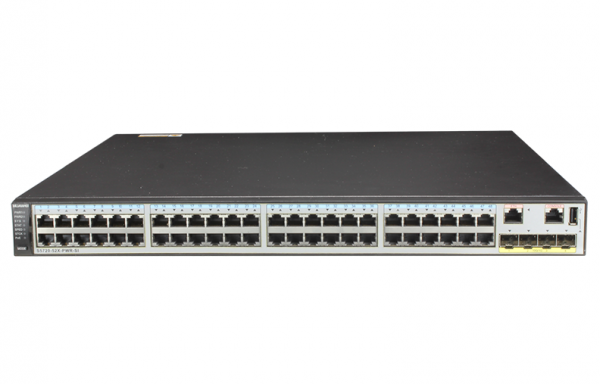

Huawei S5720-52X-PWR-SI-DC switch is next-generation standard gigabit Layer 3 Ethernet switch based on a new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). It provides large switching capacity and high-density GE and 10 GE uplink interfaces for users. With 48 Ethernet 10/100/1,000 ports and 4 x 10 Gig SFP+, the S5720-52X-PWR-SI-DC can be used as access or aggregation switch on campus networks or access switch in data centers. The unique PoE function can satisfy the need of constant power supply. The S5720-52X-PWR-SI-DC integrates many advanced technologies in terms of reliability, security, and energy savings to build next-generation IT networks.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	S5720-52X-PWR-SI-DC
Fixed Ports	– 48 Ethernet 10/100/1,000 PoE+ ports – 4 x 10 Gig SFP+
Extended Slots	NA
Memory (RAM)	512 MB
Flash	240 MB
MAC Address Table Size Forwarding Performance	16 MAC
Forwarding Performance	132 Mpps
Switching Capacity	336 Gbit/s
Power Supply	Double hot swappable AC/DC power supplies, one 500W AC or 650W DC power module is configured by default
Voltage Required	DC: Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V
Typical Power Consumption	without PD: 51W with PD: < 943.2W (PoE: 740W)
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm
Weight	9.6 kg

Note:

①	Forty-eight PoE+ 10/100/1000BASE-T ports	②	Four 10GE SFP+ ports
③	One USB port	④	One console port
⑤	ETH management port

*The console port is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed.

The back panel of Huawei S5720-52X-PWR-SI-DC switch includes four patrs: ground screw, ESN label and two power module slots, and one DC power supply contained. You should notice that the ground screw is used with a ground cable, and you can draw the ESN label out to view the ESN and MAC address of the switch.

SKU: S5720-52X-PWR-SI-DC Category: Network Switches & Routers Tag: S5720-52X-PWR-SI-DC

S5720-52X-PWR-SI-DC Specification
Switching Capacity	336 Gbit/s
Forwarding Performance	57 Mpps
Fixed Ports	48 Ethernet 10/100/1,000 ports P series: 4 Gig SFP X series: 4 x 10 Gig SFP+
MAC Address Table	16K
Ring Protection	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
IP Routing	Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, IS-IS, IS-ISv6, VRRP, and VRRP6
Multicast	PIM-DM, PIM-SM, and PIM-SSM IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
Security	User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries MAC Forced Forwarding (MFF) Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist 802.1x authentication, MAC address authentication, and combined authentication on a per port basis Portal authentication on a per VLANIF interface basis MACSec (hardware ready)
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and client patches One-click and automatic delivery of service configurations Supports independent running client
Management and Maintenance	iStack Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels sFlow
Interoperability	VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)
