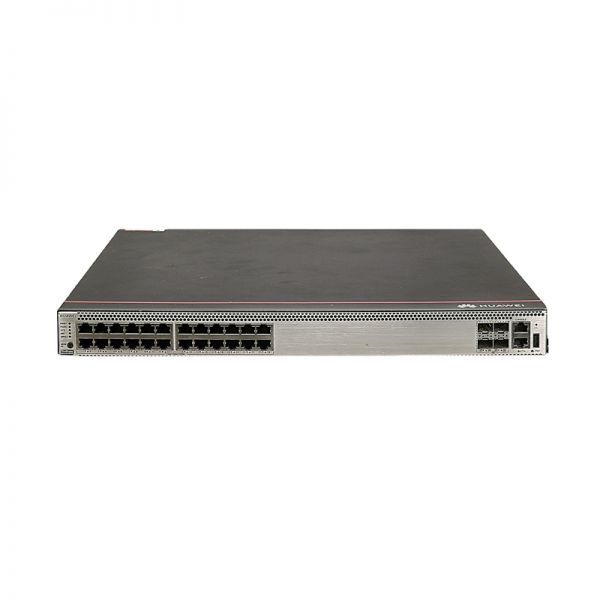

S5731S-H24T4S-A – Huawei S5731 Series Switches
| Model: | S5731S-H24T4S-A – Huawei S5731 Series Switches |
| Detail: |
Huawei S5731 switch, 24 10/100/1000BASE-T ports, 4 GE SFP+, 1 150W AC Power Supply, Distribution model
|
AED31,899.00
S5731S-H24T4S-A is the Huawei S5731 switch, providing 24 Ć 10/100/1000BASE-T ports, 4 Ć GE SFP+, and 1 Ć 150W AC Power Supply. Itās a Distribution model.
Quick Spec
Table 1 shows the quick spec.
| Model | S5731S-H24T4S-A |
| Downlink Ports | Twenty-four 10/100/1000BASE-T ports |
| Uplink Ports | Four 1000BASE-X ports |
| Memory (RAM) | 4 GB |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Stack ports | 1000BASE-XĀ ports on the front panel |
| Part number | 02353DJE
02353DJE-001 |
Note:
| ā | Twenty-four 10/100/1000BASE-T ports | ā£ | One USB port |
| ā” | Four 1000BASE-X ports | ā¤ | One ETH management port |
| ā¢ | One console port |
Note:
| ā | Ground screw | ā£ | Power module slot 1 |
| ā” | Fan module slot 1 | ā¤ | Power module slot 2 |
| ā¢ | Fan module slot 2 |
S5731S-H24T4S-A Specification |
|
| Downlink Ports | Twenty-four 10/100/1000BASE-T ports |
| Uplink Ports | Four 1000BASE-X ports |
| Memory (RAM) | 4 GB |
| Flash | 1 GB in total. To view the available flash memory size, run theĀ display versionĀ command. |
| Mean time between failures (MTBF) | 57.73 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: Ā±6 kV |
| Power supply surge protection | Using AC power modules: Ā±6 kV in differential mode, Ā±6 kV in common mode
Using DC power modules: Ā±2 kV in differential mode, Ā±4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Stack ports | 1000BASE-XĀ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 91 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 70 W |
| Operating temperature | -5Ā°C to +45Ā°C (23Ā°F to 113Ā°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1Ā°C (1.8Ā°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0Ā°C (32Ā°F). |
| Storage temperature | -40Ā°C to +70Ā°C (-40Ā°F to +158Ā°F) |
| Noise under normal temperature (27Ā°C, sound power) | < 57.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification
Safety certification Manufacturing certification |
| Part number | 02353DJE
02353DJE-001 |
