S5735-S32ST4X – Huawei S5700 Series Switches

Add to Wishlist
Model: S5735-S32ST4X – Huawei S5700 Series Switches
Detail:
Huawei S5735-S switch, 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, without power

AED13,699.00

Add to Wishlist

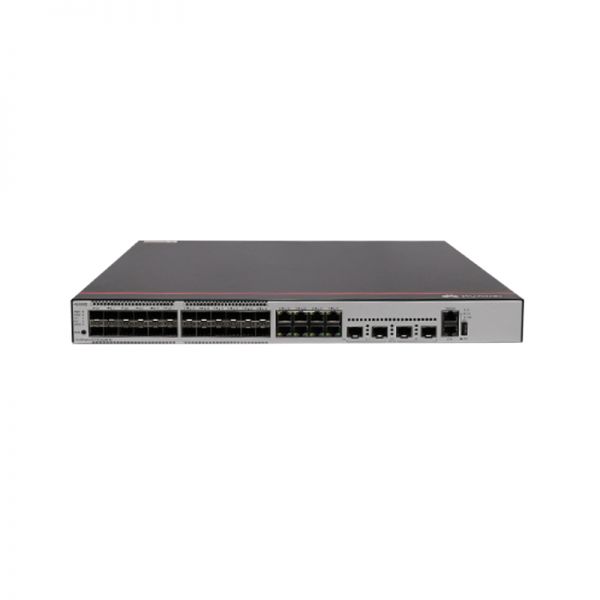

S5735-S32ST4X is the Huawei S5735-S switch with 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24ā€“48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.

Quick Spec

Table 1 shows the quick spec.

Product Model S5735-S32ST4X
Forwarding Performance 108 Mpps
Switching Capacity 144 Gbps/432 Gbps
Fixed Ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ Not supported



Note:

ā‘  Twenty-fourĀ 100/1000BASE-X ports ā‘¤ One PNP button
ā‘” Eight 10/100/1000BASE-T ports ā‘„ One USB port
ā‘¢ Four 10GE SFP+ ports ā‘¦ One console port
ā‘£ One ETH management port



Note:

ā‘  Ground screw
ā‘” Power module slot 1
ā‘¢ Power module slot 2



SKU: S5735-S32ST4X Category: Tags: , ,

S5735-S32ST4X Specification
Forwarding Performance 108 Mpps
Switching Capacity2 144 Gbps/432 Gbps
Fixed Ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ Not supported
MAC Features IEEE 802.1d compliance
MAC address auto-learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
Super Virtual Fabric (SVF) Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operation
Interoperability VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
