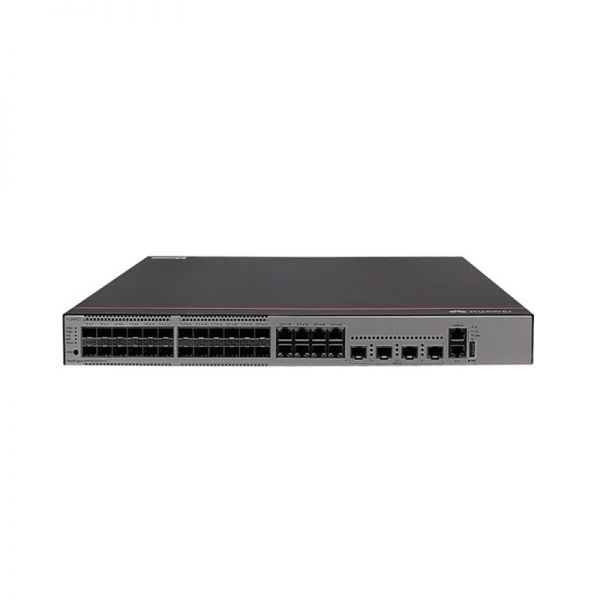

S5735S-L32ST4X-A – Huawei S5735 Series Switches


Model: S5735S-L32ST4X-A – Huawei S5735 Series Switches
Detail:
Huawei S5735-L switch, 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, Distribution

745,699.00 د.إ

S5735S-L32ST4X-A is the Huawei S5735-L switch with 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, distribution model. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Quick Spec

Table 1 shows the quick spec.

Product Model S5735S-L32ST4X-A
Forwarding Performance 108 Mpps
Switching Capacity2 144 Gbit/s/432 Gbit/s
Fixed Ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ Not supported



Note:

ā‘  Twenty-four 100/1000BASE-X ports ⑤ One PNP button
ā‘” Eight 10/100/1000BASE-T ports ā‘„ One USB port
ā‘¢ Four 10GE SFP+ ports ⑦ One console port
ā‘£ One ETH management port



Note:

ā‘  Ground screw
ā‘” Jack for AC power cable locking strap
ā‘¢ AC socket



S5735S-L32ST4X-A Specification

Forwarding Performance 108 Mpps
Switching Capacity2 144 Gbit/s/432 Gbit/s
Fixed Ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ Not supported
MAC Features MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting
VLAN Features 4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing Static route, RIP, RIPng, OSPF, OSPFv3
Super Virtual Fabric (SVF) Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations
Interoperability VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
