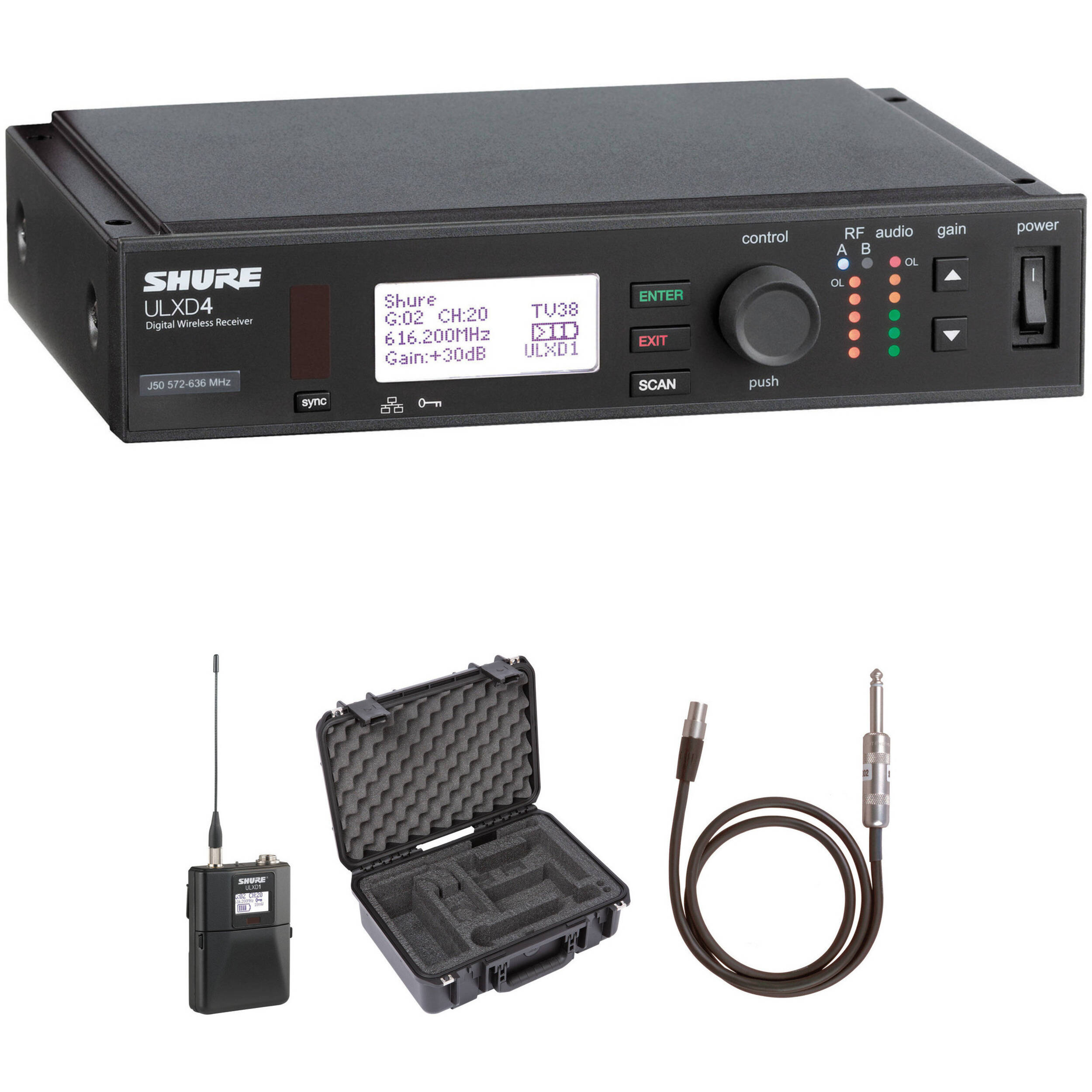

Shure ULX-D Digital Wireless Bodypack Instrument Kit (J50A: 572 to 608 + 614 to 616 MHz)

Add to Wishlist

6,499.00 د.إ

Add to Wishlist
Key Features
  • For Guitar, Bass, or Other Instruments
  • WA302 Instrument Cable
  • Bodypack Transmitter
  • Single-Channel Receiver
  • Compatible with TA4F Lav/Headset Mics
  • Expandable up to 60 Channels
  • 1/10/20mW RF Output Power
  • 2.9 ms Latency for Accurate Playing
  • AES 256-Bit Encryption
  • 12 Hr with SB900A Rechargeable Battery

Giving musicians the opportunity to roam the stage wirelessly, the Shure ULX-D Digital Wireless Bodypack Instrument Kit from B&H delivers professional-grade audio quality with 2.9 ms latency for a responsive performance. It includes a single-channel ULXD4 wireless receiver, a ULXD1 bodypack transmitter, and a WA302 instrument cable for connecting a guitar, bass, or any instrument with a 1/4″ output to the transmitter’s TA4M input. Also provided is a waterproof case with a custom foam interior to store and transport the system.

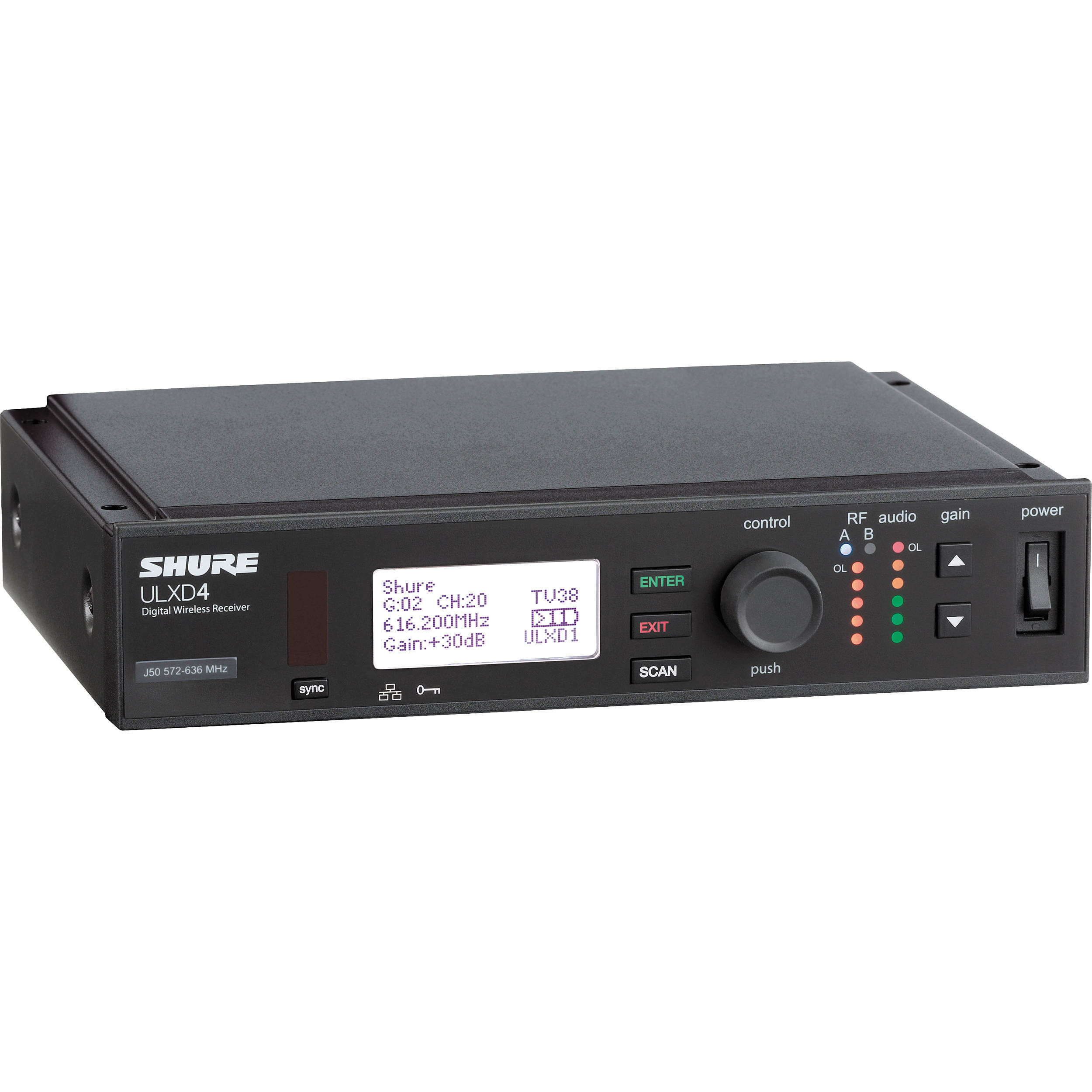

Shure ULXD4 Single-Channel Digital Wireless Receiver (J50A: 572 to 608 + 614 to 616 MHz)

Part of the ULX-D wireless series, the Shure ULXD4 houses a single digital receiver in a rugged half-rack unit with an external power supply.

The ULX-D Series simplifies the set up and management of large numbers of wireless systems. It is ideal for professional sound reinforcement applications in large live venues and houses of worship, as well as A/V installations in conference, educational, and corporate facilities. Compatible with a wide selection of Shure transmitters and mic capsules, it delivers pristine 24-bit/48 kHz digital audio, capturing every detail with clarity, accurate low end, and crisp transient response.

The ULX-D operates in the UHF band, utilizing Digital Predictive Switching Diversity to protect the transmission from interference, delivering rock-solid RF signal stability without audio artifacts. In Standard mode you can run up to 17 channels per 6 MHz TV channel, at a range up to 330′. Alternatively, the High-Density mode lets you run up to 47 channels per 6 MHz TV channel, at a maximum range of 98′. The system offers AES-256 encryption for security.

The unit features audio and RF meters, 60 dB of gain control, and both XLR and 1/4″ outputs. A large LCD screen and intuitive controls let you quickly make adjustments, even in low-light situations. Additional features include automatic frequency scanning, IR sync, gain optimization to match any input source, and internal limiting to prevent clipping.

The Ethernet port allows multiple receivers to be easily networked together for simplified frequency coordination and deployment via Shure’s Wireless Workbench software. In addition, the Channels Mobile App enables you to control the system remotely from an iOS device.

Shure Professional-Grade Digital Wireless Audio Quality

  • 24-bit/48 kHz digital audio delivers clear and accurate sound reproduction
  • Extended 20 Hz to 20 kHz frequency range with flat response
  • > 120 dB wide dynamic range for excellent signal-to-noise performance
  • Up to 60 dB of independently adjustable gain for each channel
  • Works with a wide selection of Shure mics and transmitter types including the ULXD1 bodypack and ULXD2 handheld transmitters that provide complete mobility for presenters/performers, and the ULXD6 boundary and ULXD8 gooseneck base transmitters to accommodate meeting rooms with flexible seating layouts
  • ULX-D receivers are also compatible with QLX-D bodypack and handheld transmitters

Up to 60 Channels with Rock-Solid Transmission

  • Single-channel receiver operates in the J50A: 572 to 608 + 614 to 616 MHz UHF band
  • 44 MHz tuning range lets you run up to 60 channels at the same location in Standard mode or 90 channels in High-Density mode
  • Digital Predictive Switching Diversity uses a microprocessor to switch antennas before dropouts occur
  • Comes with two remoteable 1/2 wave dipole antennas
  • 256-bit AES encryption offers unbreachable privacy—uses unique, randomized encryption key generated every time encryption is enabled
  • Interference detection and alerts provide instant confirmation on both the receiver LCD and WWB software when interference is present
  • Adding UA874 active antennas or PA805 passive antennas increases the range of your system and offers increased protection against interference
  • The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time

Intelligent Hardware Simplifies Setup, Monitoring & Control

Networked Control

  • Ethernet networking enables real-time, precision monitoring and control of your system, as well as automatic frequency coordination across multiple receivers, using Wireless Workbench, SystemOn, and Axient Spectrum Manager software
  • Compatible with external controllers such as AMX and Creston
  • Crosssubnet control-enabled for management between multiple facilities or venues

Functionality

  • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
  • Proprietary Gain Ranging optimizes system dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Internal limiter automatically engages to prevent digital clipping of your audio
  • Unit has an individual gain control, an XLR output with switchable mic/line level, and a 1/4 output
  • Quick visual check using audio and RF LED meters with peak indicators
  • Intuitive front-panel controls with lockout feature and easily readable LCD with adjustable contrast
  • Remote Control: Make adjustments anywhere in the venue via the Channels Mobile App for iOS devices
  • Smart Power Management on Transmitters: Advanced SB900A lithium-ion rechargeable batteries with SBC chargers (both available separately) provide extended transmitter battery life over alkaline batteries, battery-life metering in hours and minutes (accurate to within 15 minutes), and detailed tracking of battery health status

UPC: 042406540711

Shure ULXD1 Digital Wireless Bodypack Transmitter with TA4M (J50A: 572 to 608 + 614 to 616 MHz)

The Shure ULXD1 is a digital wireless bodypack transmitter compatible with ULX-D and QLX-D receivers. With rugged, yet lightweight aluminum housing, it delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

The ULXD1 features a TA4M input, allowing you to connect a lavalier or headset mic of your choice for hands-free presentations and performances or a dedicated adapter cable for use with an instrument (mic and cable available separately).

Clear, Accurate, and Reliable Digital Audio

  • The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330′ range, great for live performances and presentations in music venues, houses of worship, and conference spaces.

User-Friendly Features in a Lightweight Housing

  • The unit quickly syncs with a wireless receiver over IR at the touch of a button.
  • Proprietary Gain Ranging feature automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
  • Power button conveniently doubles as mute switch, while preserving RF lock.
  • Frequency and power lockout functions prevent accidental or unauthorized changes during events.
  • Backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
  • 1/10/20mW selectable RF output power allows you to increase either the transmitter’s range or the number of mics operating simultaneously.
  • Detachable 1/4-wave antenna.

Convenient Power Management Options

  • Operates for up to 11 hours on two AA batteries.
  • Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
  • External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
  • The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

UPC: 042406540551

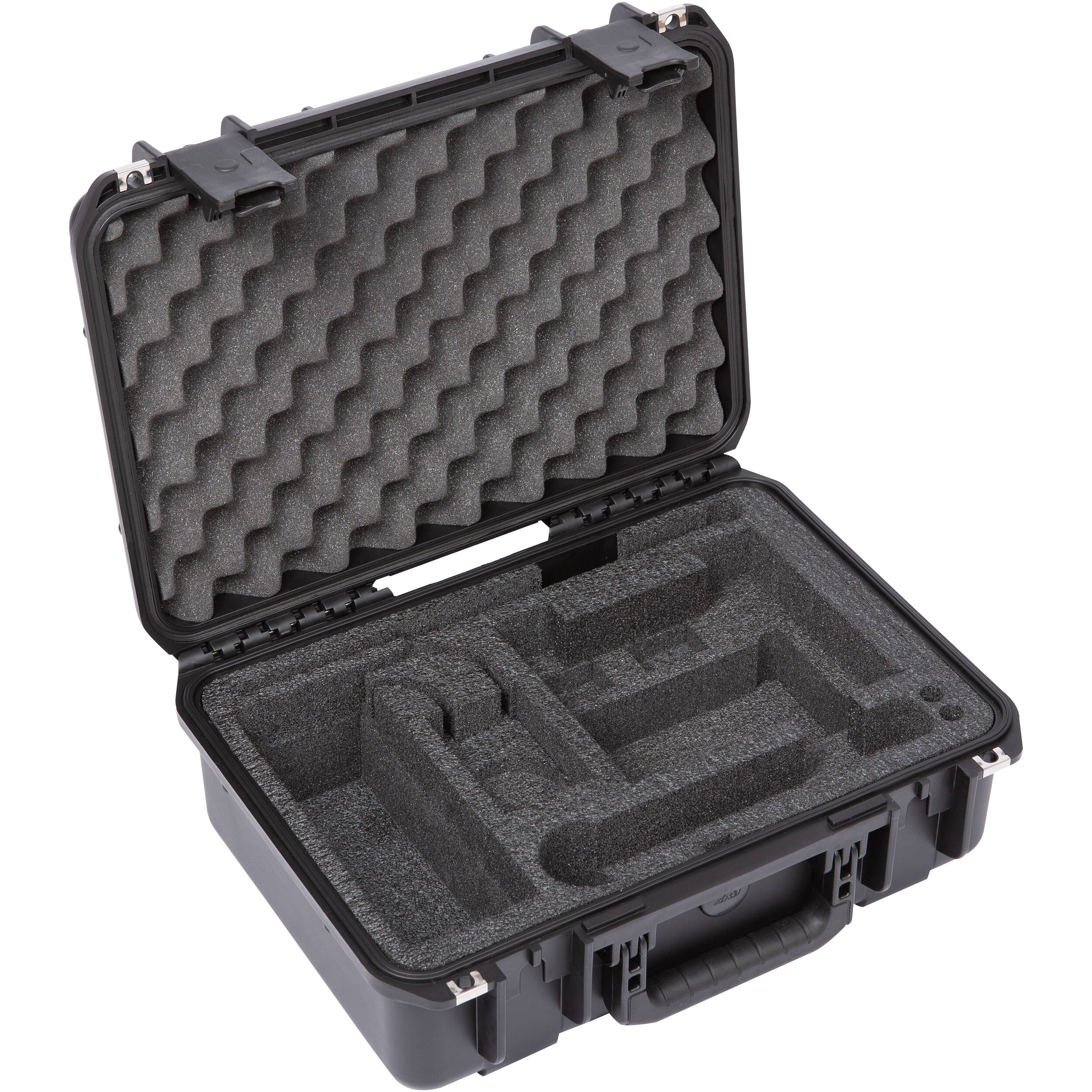

SKB iSeries Waterproof Case for Select Shure Wireless Systems

The iSeries Waterproof Case for Select Shure Wireless Systems from SKB is designed to accommodate the receiver and antennas along with a bodypack transmitter and a handheld microphone transmitter. The case is compatible with the Shure BLXR, GLXDR, SLX, SLX-D, QLX-D, and ULX-D systems and also features an accessory section to hold lavalier mics, power supplies, and other necessities.

The interior features a custom-cut, high-quality PE foam, while the exterior is made from ultrahigh-strength polypropylene copolymer resin. It is UV, solvent, corrosion, and fungus resistant and has a complete gasket seal, which make the case watertight (MIL-STD 810G). It is built with an automatic ambient-pressure equalization valve and has a trigger-release latch system.

Resistant to corrosion and impact damage, the case offers a molded-in hinge with built-in stainless steel locking loops. An overmolded cushion grip handle makes it more comfortable to carry. Made in the USA, the iSeries case includes a lifetime warranty.

Custom cut interior for Shure BLXR, GLXDR, SLX, SLX-D, QLX-D, and ULX-D wireless systems
Accommodates receiver, handheld mic, and bodypack transmitters
Accessory pocket for power supply, lav mic, and cables
Ultrahigh-strength polypropylene copolymer resin
UV, solvent, corrosion, fungus, and impact resistant (MIL-STD 810G)
Complete gasket seal makes the case watertight (MIL-STD 810G)
Automatic ambient-pressure equalization value
Resistant to corrosion and impact damage
Molded-in hinge
Trigger-release latch system
Stainless steel locking loops
Rubber overmolded cushion grip handle custom cut foam interior

UPC: 789270001718

Shure WA302 1/4″ Instrument to TA4F Cable for Shure Bodypack Transmitters (2.5′)

The WA302 is a 2.5′ instrument cable with a 4-pin mini connector (TA4F) on one end and a 1/4″ connector on the other. It is used to connect a guitar, bass, or other instrument to a ULX1, QLXD1, T1, SC1, LX1, U1, UC1, UT1, or ULXD1 (TA4M), wireless bodypack transmitter.

SKU: SHULXD4J50AC Category: Tag:

Shure ULXD4 Single-Channel Digital Wireless Receiver (J50A: 572 To 608 + 614 To 616 MHz) Specs

System
Wireless Transmission Digital UHF
Number of RF Channels 1760
Diversity Antenna Diversity
RF Frequency Band J50A:
572 to 608 MHz
614 to 616 MHz
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1′ / 100 m
Max Systems per Setup 60
Latency
Modulation Proprietary
Receiver
Form Factor Tabletop
Mounting Options Rackmount, Tabletop (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, BNC (Rear-Mount)
Antenna Bias Voltage 12 to 13 VDC, 150 mA (per Antenna)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output:
+18 dBV (Line Level)
XLR Output:
-12 dBV (Mic Level)
1/4″ Output:
+12 dBV (Consumer Level, Instrument Level)
Phantom Power Protection On 1/4″, XLR Outputs
Frequency Response 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols DHCP, Manual IP
Impedance XLR Output:
100 Ohms (Balanced)
Approximate RF Sensitivity -98 dBm
Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 15 VDC at 600 mA (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 250 mA
Display & Indicators 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
2 x Multi-Segment LED (AF Level, Output Level, Peak)
Housing Steel
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 6.7 x 1.7 x 7.8″ / 171 x 44 x 197 mm
Weight 2 lb / 0.9 kg
General
Packaging Info
Package Weight 6.395 lb
Box Dimensions (LxWxH) 20.4 x 15.9 x 3.7″

Shure ULXD1 Digital Wireless Bodypack Transmitter With TA4M (J50A: 572 To 608 + 614 To 616 MHz) Specs

System
Wireless Transmission Digital UHF
RF Frequency Band J50A:
572 to 608 MHz
614 to 616 MHz
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1′ / 100 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency
Encryption AES 256
Modulation Proprietary
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 1 / 10 / 20 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input
Muting Off/On Switch
Audio Input Level 20.5 dBV (Max, Pad On)
Gain Range 0 to +21 dB (3 dB Steps)
Sync Method IR
Antenna 1 x 1/4 Wave External, Detachable (Beltpack)
Power Requirements Battery
Battery Type 2 x AA
Approx. Battery Life 11 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Channel, Group, Mute, Power, RF Output Power)
Housing Aluminum
Dimensions 2.6 x 3.4 x 0.9″ / 66 x 86 x 23 mm
Weight 5 oz / 142 g (without Batteries)
Packaging Info
Package Weight 0.9 lb
Box Dimensions (LxWxH) 12.8 x 4.9 x 3.4″

SKB ISeries Waterproof Case For Select Shure Wireless Systems Specs

General
Material of Construction Ultrahigh-Strength Polypropylene Copolymer Resin
Stainless Steel Locking Loops
Watertight Yes (MIL-STD 810G)
Pressure Relief Valve Yes
Other Features Molded-In Hinge
Trigger-Release Latch System
UV, Solvent, Corrosion, Fungus, and Impact Resistant (MIL-STD 810G)
Dimensions (L x W x D) Exterior: 18.25 x 13.79 x 6.81″ / 46.3 x 35 x 17.3 cm
Weight 6.89 lb / 3.13 kg
Packaging Info
Package Weight 8.085 lb
Box Dimensions (LxWxH) 18.4 x 14.6 x 7.3″

Shure WA302 1/4″ Instrument To TA4F Cable For Shure Bodypack Transmitters (2.5′) Specs

Interface
Connector 1 1 x 1/4″ TS Male
Connector 2 1 x  Lockable 4-Pin Mini-XLR Female
General
Cable Length 2.5′ / 76.2 cm
Packaging Info
Package Weight 0.175 lb
Box Dimensions (LxWxH) 7.5 x 5.25 x 1.3″
