Shure ULXS14/93 Wireless Omni Lavalier Microphone System (J1: 554 to 590 MHz)

Add to Wishlist

3,499.00 د.إ

Add to Wishlist
Key Features
  • For Presenters and Performers
  • WL93 Omnidirectional Lavalier Mic
  • Lightweight Bodypack Transmitter
  • Predictive-Diversity Receiver

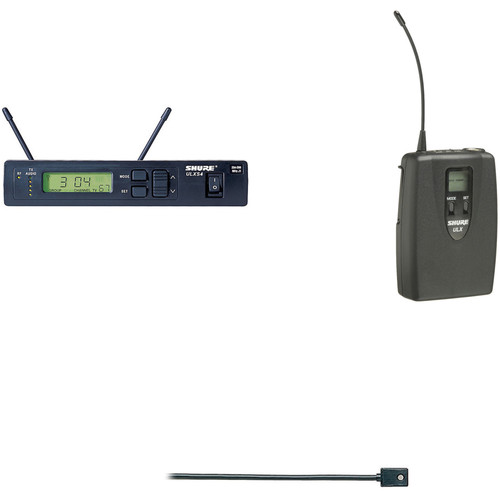

The Shure ULXS14/93 is a wireless lavalier microphone system that brings reliable transmission and high-quality audio to presenters, performers, clergy, and instructors. This configuration is a B&H kit featuring the portable ULXS4 receiver, the ULX1 bodypack transmitter, and the WL93 omnidirectional lavalier microphone. The system is suitable for lecture halls, conference rooms, and houses of worship as well as performance spaces, musical stages, theaters, and more.

Shure ULXS4 Wireless Receiver (J1: 554 to 590 MHz)

The Shure ULXS4 is a wireless receiver housed in a lightweight, portable plastic chassis and compatible with the ULX1 bodypack and ULX2 handheld transmitters. It brings reliable transmission and high-quality audio to presenters, performers, clergy, and instructors in small venues including lecture halls, conference rooms, houses of worship, musical stages, theaters, and more.

The ULXS4 features a half-rack-size tabletop chassis which can be rackmounted using separately available mounting kits. The receiver’s auto-scan function seeks out a clean channel for clear transmission; the selected frequency is entered manually into the transmitter (available separately) and you’re up and running. If the RF environment changes and interference is heard, simply rescan with the receiver and set the transmitter to the new frequency.

An Easy-to-Use Receiver with Predictive-Diversity Reception

  • Auto scan instantly locates a clear, interference-free channel for safe transmission
  • Predictive-diversity technology uses a microprocessor to switch antennas before dropouts occur, greatly improving reception
  • The receiver operates in a 36 MHz UHF tuning range with 1440 selectable frequencies available
  • Allows for up to 40 wireless mics transmitting simultaneously in the same space
  • Shure’s patented Audio Reference Companding delivers crystal-clear audio with a 25 Hz to 15 kHz frequency response
  • Detachable 1/4 wave antennas
  • Multifunction backlit LCD showing group, channel, and transmitter battery strength
  • The back panel houses a balanced XLR mic-level output as well as an unbalanced 1/4″ instrument-level output
  • Lightweight plastic construction
  • UA506 (single) or UA507 (dual) rackmounting hardware kits available separately

Improve Your Wireless Performance

  • Adding UA874 active antennas increases the range of your system and offers increased protection against interference
  • The UA844+ antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels and less setup time

UPC: 042406080934

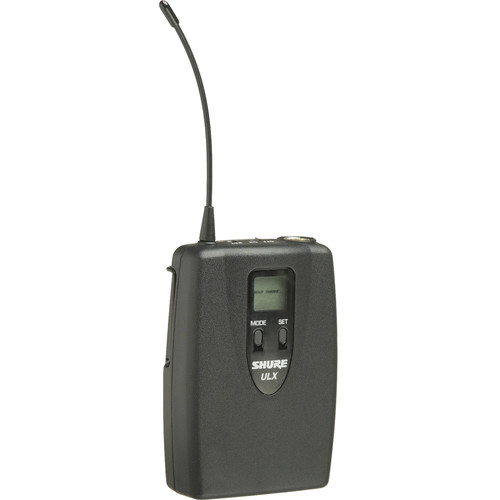

Shure ULX1 Wireless Bodypack Transmitter (J1: 554 to 590 MHz)

The Shure ULX1 is a bodypack wireless transmitter compatible with ULXS4 and ULXP4 receivers. Lightweight and comfortable for performers and presenters to wear, it provides up to 8 hours of continuous use on a single 9V battery with a fixed 20mW RF power output and a transmission range up to 300′.

The ULX1 features a locking TA4M connector with a 45 dB adjustable input level to accommodate the compatible lavalier or headset microphone of your choice or an adapter cable for guitar and bass. The unit operates on a 36 MHz UHF tuning range with 1440 selectable frequencies. Frequency selection is entered manually on the unit’s menu controls, while LEDs and a backlit LCD show essential information. Power and frequency settings can be locked out to avoid accidents.

UPC: 042406081894

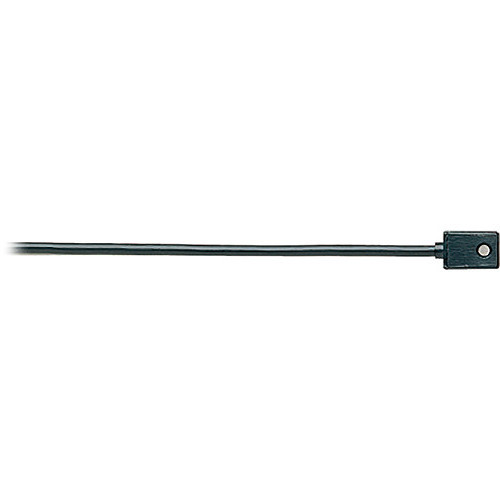

Shure WL93 Subminiature Omnidirectional Lavalier Microphone with 4′ Cable and TA4F Connector (Black)

The black Shure WL93 Subminiature Omnidirectional Lavalier Microphone is a tiny lav mic well suited for theater, sermons, presentations, film/video work, and similar applications where a discreet, easily hidden lavalier mic is desired. This version features a 4′ cable with a TA4F connection for use with Shure wireless bodypack transmitters.

The microphone’s diminutive size allows for easy concealment in clothing and costumes, and a sew-on mounting bracket is supplied. The forgiving omnidirectional polar pattern helps to provide consistent levels, even when the talent isn’t speaking directly into the mic capsule.

Four foam windscreens, two single mount tie clips, two double-mount tie clips, and a carrying bag are included.

TA4F Connector

Compatible Wireless Transmitters

  • Shure: Works with Shure transmitters equipped with a TA4M connector, including the following models: AD1, ADX1, AXT100TA4F, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, and ULXD1
  • Third-Party Devices: This WL93 will work with third-party wireless transmitters that are equipped to supply 5 VDC through a TA4M connector with a Shure wiring configuration.

A Discreet Omnidirectional Lavalier with Broadcast-Quality Sound

Omnidirectional Polar Pattern

The mic’s omnidirectional polar pattern picks up sound from all around the capsule, helping to supply consistent speech levels, even when the talent isn’t speaking directly toward the microphone.

Headroom for Normal Vocals

With its ability to withstand up to 120 dB SPL without distorting, the WL93 can handle standard vocal levels for performance and broadcast applications.

Wide Frequency Response

With a wide frequency range from 50 Hz to 20 kHz, the mic provides clear, accurate speech reproduction.
SKU: ULXS14/93-J1 Category: Tag:

Shure ULXS4 Wireless Receiver (J1: 554 To 590 MHz) Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 1440
Diversity Antenna Diversity
RF Frequency Band J1:
554 to 590 MHz
RF Bandwidth 36 MHz
Frequency Step Size 25 kHz
Max Operating Range 300′ / 91.4 m
Max Systems per Setup 40
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Optional Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ Unbalanced Output
Audio Output Level -17 to +3.9 dBV (Mic Level, Line Level)
Frequency Response 25 Hz to 15 kHz ±2 dB
Word Clock I/O None
Impedance XLR Output:
1.84 Kilohms (Balanced)
75 Ohms (Balanced)
1/4″ Output:
3 Kilohms (Unbalanced)
Approximate RF Sensitivity 1.26 dBµV
Squelch Adjustable
Spurious Rejection: 75 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC (Included)
Display & Indicators LCD (AF Level, Channel, Group, Level, Metering, Sync, Transmitter Battery Status)
Housing Plastic
Operating Temperature -4 to 120°F / -20 to 48°C
Dimensions 8.4 x 1.7 x 6.4″ / 214 x 43 x 163 mm
Weight 37 oz / 1049 g
Packaging Info
Package Weight 3.65 lb
Box Dimensions (LxWxH) 20.5 x 18.3 x 3.7″

Shure ULX1 Wireless Bodypack Transmitter (J1: 554 To 590 MHz) Specs

System
Wireless Transmission Analog UHF
RF Frequency Band J1:
554 to 590 MHz
RF Bandwidth 36 MHz
Frequency Step Size 25 kHz
Max Operating Range 300′ / 91.4 m
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 20 mW (30 mW Peak)
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Pad 20 dB
Muting None
Audio Input Level -4 dBV (Mic Level)
+25 dBV (Instrument Level, Pad On)
Gain Range 25 dB
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 1 x 9V
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Battery Status, Channel, Group, Power)
Dimensions 2.7 x 3.9 x 1.1″ / 68.6 x 99.1 x 27.9 mm
Weight 2.8 oz / 79 g (without Batteries)
Packaging Info
Package Weight 0.785 lb
Box Dimensions (LxWxH) 10.95 x 5.4 x 3.25″

Shure WL93 Subminiature Omnidirectional Lavalier Microphone With 4′ Cable And TA4F Connector (Black) Specs

Microphone
Form Factor Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Pad None
High-Pass Filter None
Windscreen Foam (Included)
Performance
Frequency Range 50 Hz to 20 kHz
Maximum SPL 120 dB SPL
Impedance 3000 Ohms
Sensitivity -38 dBV/Pa
Dynamic Range 102 dB
Equivalent Noise Level 18 dB SPL A-Weighted
Connectivity
Output Connectors 1 x TA4/Mini XLR 4-Pin Female
Cable Length 3.94′ / 1.2 m
Power
Operating Voltage 2 to 10 V
Physical
Color Black
Mounting Alligator Clip
Operating Temperature 0 to 135°F / -17.8 to 57.2°C
Storage Temperature -20 to 165°F / -28 to 73°C
Weight 0.6 oz / 16 g
Packaging Info
Package Weight 0.4 lb
Box Dimensions (LxWxH) 6.7 x 4.3 x 3.4″
