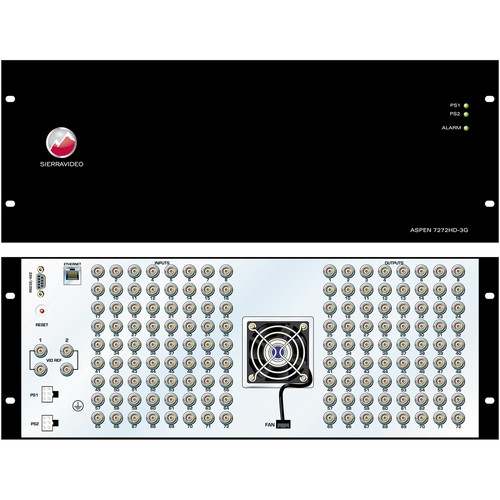

Sierra Video 7272HD-3G Aspen 72 x 72 3G HD-SDI Routing Switcher

Add to Wishlist

AED56,299.00

Add to Wishlist

TheĀ 7272HD-3G Aspen 72 x 72 3G HD-SDI Routing SwitcherĀ fromĀ Sierra VideoĀ is a 4RU rackmount routing switcher with 72 inputs and 72 outputs which supports SDI, HD-SDI, 3G HD-SDI and dual link HD-SDI video signals. It can switch any or all inputs to any or all outputs. The Aspen 7272HD-3G can be remotely controlled using an RS-232/485/422 serial interface or an Ethernet port by using the built-in web pages for configuration and operation.

Max Data Rate 2.97Gbps
Multi-Standard Operation; SDI (SMPTE 259M & SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M) and dual link HD-SDI (SMPTE 372M)
System Range 500′ (155m) at maximum data rate
Sync Re-Clocking 5 modes: auto, bypass, 3G HD-SDI, HD-SDI & SD per input
RS-232, RS-485, RS-422 & Ethernet control
Supports TCP/IP Protocol with rear panel RJ-45 connector
WEB browser control
SKU: ASPEN 72X72 3G HD-SDI RTR 4RU Category: Tag:
HD-SDI Video
Data Rates
19 Mbps to 2.97 Gbps
Data Types
SMPTE 259M-C, SMPTE 292, SMPTE 424M & DVB-ASI
Input
Cable Equalization:Ā 3G: 0 – 500′ (155m)
HD: 0 – 650′ (200m)
SD: 0 – 1,200′ (400m)
Return Loss:Ā ā‰„15db @ 1.485Gbps
ā‰„10db @ 2.97Gbps
Output
Level:Ā 800 mV p-p Ā± 10%
Timing Jitter:Ā SMPTE 424M ā‰¤2.0UI
SMPTE 292 ā‰¤1.0UI
SMPTE 259M ā‰¤2.0UI
Alignment Jitter:Ā SMPTE 424M ā‰¤0.3UI
SMPTE 292 ā‰¤0.2UI
SMPTE 259M ā‰¤0.2UI
Return Loss:Ā ā‰„15db @ 1.485 Gbps
ā‰„10dB @ 2.97 Gbps
Control
Ethernet
10/100 Base-T, RJ-45
Serial
RS-232/422, 9-pin Sub-D
General
Power
110 – 240 VAC, 50/60 Hz, 55 W
Connectors
72 x BNC input
72 x BNC output
2 x BNC looping sync input 1
2 x BNC looping sync input 2
Impedance
75 ā„¦
Operating Temperature
32 to 104Ā° F (0 to 40Ā° C)
Dimensions
7 x 19 x 2.5″ (178 x 483 x 64 mm)
Weight
7 lb (3.2 kg)
