Sierra Video Aspen 3232HD-3G Video Router

Add to Wishlist

AED18,199.00

Add to Wishlist

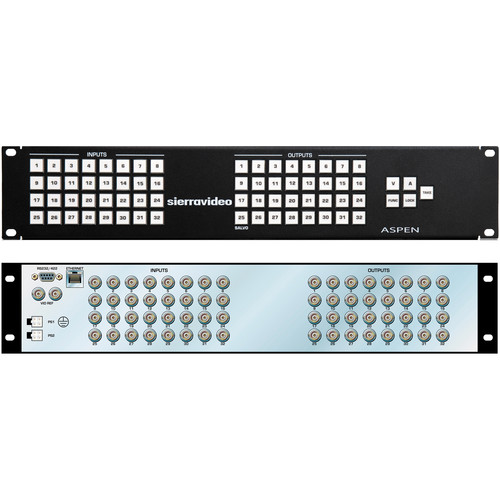

TheĀ Sierra Video Aspen 3232HD-3G Video RouterĀ is a 2RU rackmount routing switcher with 32 inputs and 32 SDI outputs which supports SD-SDI, HD-SDI, and HD-3G video signals.
The Aspen 3232HD-3G has a front control panel with 64 routing control buttons and 5 control buttons. All buttons are multi-colored. The video router can be remotely controlled using an RS-232/422 serial interface or an Ethernet port by using the built-in web pages for configuration and operation.

High signal integrity supporting cable runs of 155m at 2.97Gb/s
Front control panel standard with multi-color buttons
Front panel lockout
Built-in GUI for configuration and operation via Ethernet, including Names, Salvos, Layers
Output reclockers, Input equalizers
External audio router control support (layers)
SKU: ASPEN 32X32 3G HD-SDI RTR 2RU Category: Tag:
Video
Data Rates
19 Mbps to 2.97 Gbps
Data Types
SMPTE 259M-C, SMPTE 292, SMPTE 424M & DVB-ASI
HD/SDI Video Input
Cable Equalization
3G: 0 – 500′ (155 m)
HD: 0 – 650′ (200 m)
SD: 0 – 1,200′ (400 m)
Return Loss
ā‰„15db @ 1.485 Gbps
ā‰„10db @ 2.97 Gbps
HD / SDI Video Output
Level
800mV p-p +/- 10%
Timing Jitter
SMPTE 424M ā‰¤ 2.0UI
SMPTE 292 ā‰¤ 1.0UI
SMPTE 259M ā‰¤ 2.0UI
Alignment Jitter
SMPTE 424M ā‰¤ 0.3UI
SMPTE 292 ā‰¤ 0.2UI
SMPTE 259M ā‰¤ 0.2UI
Return Loss
ā‰„15db @ 1.485 Gbps
ā‰„10dB @ 2.97 Gbps
Controls
Ethernet
10/100 Base-T (RJ-45)
Serial
RS-232/422 (DB-9)
General
I/O Connectors
75 ā„¦ BNC
Operating Temperature
32Ā° to 104Ā°F (0Ā° to 40Ā°C)
Power
110-240 VAC, 50/60 Hz, 18 W
Dimensions
3.5 x 19 x 2.5″ (8.9 x 48.3 x 6.4 cm)
Weight
4 lb (1.8 kg)
Packaging Info
Package Weight
7.4 lb
Box Dimensions (LxWxH)
21.6 x 11.1 x 4.2″
