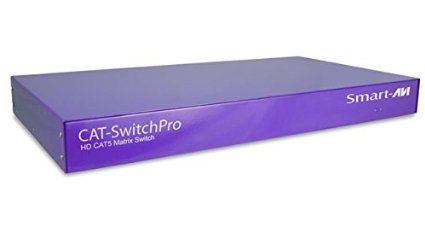

Smart-AVI CSW16X32S Video Conversion & Connectivity

CATSwitch routes audio and video signals from serveral different video sources out to multiple displays and speakers. CATSwitch is capable of connecting to as many as 16 video sources via transmitters and 32 video displays via receivers with a maximum extension of 1000 feet between the transmitter and receiver units.

Applications

• Wall Displays
• Audio Visual Presentation
• Digital Media
• Shopping centers
• Airports
• Security
• Dealer rooms
• Point of Sale
• Control rooms
• Hotels

Features

• Supports high resolution video up to 1920×1200
• High quality audio switching
• Infrared, RS232 and TCP/IP control
• PC Windows software control
• Integral UTP distribution
• 1U rackmounted chassis
• Uses easy to install, inexpensive CAT-5/5e/6/7/8
• Maximum extension of 1,500 feet (500m) between the local and remote units
• HDTV compatible. (720p, 1080i,1080p)
• 300 MHz bandwidth
• Compatible with VGA, XGA, Sun, MAC and SGI
• Sync Format / Polarity Preservation
• Compatible with Line Level Stereo Audio Signals
• High ground loop immunity
• Built-in power surge and transient protection
• Designated trimmer in the remote unit to compensate for length

SmartAVI CATSwitch Specifications
