![SmartAVI Composite to VGA Converter with HDMI. Includes: [V2V-CV2-01, PS5VDC2A]](https://techsouq.com/wp-content/uploads/2017/03/p-47118-01__42359.1467205628.1280.1280.jpg "SmartAVI Composite to VGA Converter with HDMI. Includes: [V2V-CV2-01, PS5VDC2A]")
Network Switches & Routers

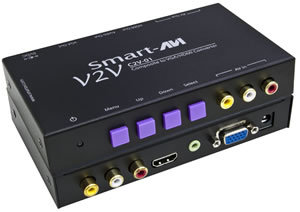

SmartAVI Composite to VGA Converter with HDMI. Includes: [V2V-CV2-01, PS5VDC2A]
Availability:
30 in stock
999.00 د.إ
30 in stock
SmartAVI Composite to VGA Converter with HDMI. Includes: [V2V-CV2-01, PS5VDC2A]
The SmartAVI V2V-C2V-01 converts composite video to VGA with HDMI output.
The V2V-C2V-01 Converts Composite Video to VGA with HDMI Output and Stereo Audio. The unit also has composite outputs for other composite devices.
SmartAVI V2V-C2V-01 Features:
- Specially designed for computer VGA/ HDMI monitors and LCD color monitors
- Composite Video Input via RCA
- Video(CVBS), VGA ,HDMI Output
- Supports NTSC, PAL video system
- Input video system 50 to 60Hz frame rate detection (NTSC/PAL)
- Supports VGA, HDMI resolutions: 800×600, 1024×768, 1280×720, 1920×1080@60Hz
- Supports HDMI resolutions: 720P, 1080I, 1080P
- Built in stereo audio input and output
- Any adjustment will be auto memory
- Frequency output: 60Hz, 75Hz, 85Hz
- On screen display function: Resolution, Brightness, Contrast, Saturation, Hue
SmartAVI V2V-C2V-01 Diagram
SmartAVI V2V-C2V-01 Specifications:
| Mechanical | |
| Width | 5.75 in. (14.6 cm.) |
| Depth | 3.25 in. (8.3 cm.) |
| Height | 1.25 in. (3.2 cm.) |
| Weight | 1.0 lb. (0.5 kg.) |
| Composite Video | |
| Input Format | NTSC/PAL/SECAM |
| Output Format | NTSC/PAL/SECAM |
| Resolution | 800×600, 1024×768, up to 1280×1024@60Hz |
| Input Interface | (3) RCA Female |
| Output Interface | (3) RCA Female |
| VGA Video | |
| Format | RGBHV, RGsB, YUV, Y/C, CVBS |
| Resolution | Up to 1920 x 1200 VGA, SVGA, XGA, SXGA, UXGA, WUXGA |
| Output Interface (RX) | (1) HD-15 Female |
| HDMI Video | |
| Format | HDMI 1.3b (deep color, xvYcc color space supported) |
| DVI Compliance | Single-link DVI-D 1.1 |
| HDCP Compliance | 1.0/1.1 |
| Video Bandwidth | Single-link 340MHz (10.2Gbps) |
| Resolution | 480i,480p,720i,720p,1080i,1080p |
| Output Interface | (1) HDMI (7.1ch audio & video) |
| Connector | Type A (19-pin female) |
| Maximum Distance | 25 ft. |
| Audio | |
| Signal Type | Stereo Unbalanced |
| Output Interface | 3.5mm Jack Socket (Female) |
| Power | External 100-240 VAC/5VDC2A @ 10W |
| Environmental | |
| Operating Temperature | 0-55C (32-131F) |
| Storage Temperature | -20-85C (-4-185F) |
| Humidity | Up to 95% |
| Weight | 0.5 kg |
|---|---|
| Dimensions | 1.25 × 5.75 × 3.25 cm |
