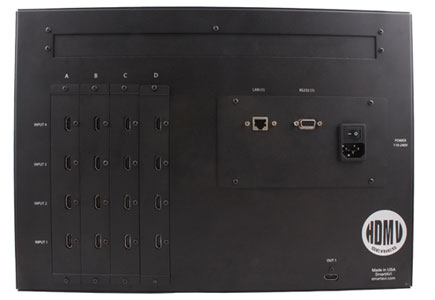

SmartAVI HDMV16X

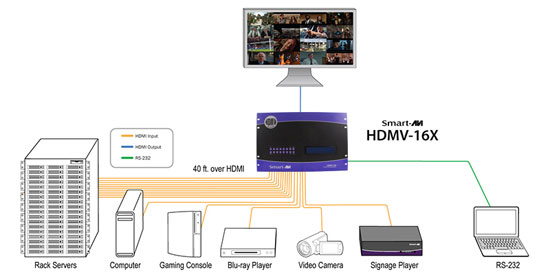

The HDMV-16X allows users to view up to sixteen different HD digital video sources on one display and can be used in many applications that require real-time monitoring of multiple devices, like HDTV, DVD players, cameras and computers. It is the perfect solution in situations where a user needs to monitor several sources at the same time.

Connections to video sources are managed via HDMI or DVI connectors, with advanced viewing options such as dual-mode, quad-mode, full-screen mode, and PiP (Picture in Picture) mode.

Feature

• View up to sixteen sources on a single monitor at the press of a button
• On-Screen Display (OSD) makes setup and switching easy
• Display each computer with crisp high-resolution video
• Supports DVI-D input resolutions up to 1900 x 1200
• Supports 1080p HDMI output (1920 x 1080)
• Delivers uncompressed digital video with zero signal loss
• HDCP and HDMI 1.4 compliant
• Supports EDID for total control of compliant displays
• Outputs HDMI up to 40 feet
• Change views with front panel switching, keyboard hotkeys and RS-232
• Quad-mode splits the screen to show four sources on one screen
• Dual-mode splits the screen to show two sources on one screen
• PiP-mode displays one device in full screen with three thumbnail views
• 16-mode displays on all sixteen inputs on one screen

Applications

• Corporate or Educational Presentations
• Financial (Remote Servers/User Control)
• Call Centers for Technical Support
• Industrial (Long-Range Workstation Isolation)
• Airport Installations (Air Traffic Control/Passenger Information)
• Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
• Recording (for Large Studios where Editing/Mixing Stations are compact and/or Require Complete Silence)

SmartAVI HDMV-16X Specifications
