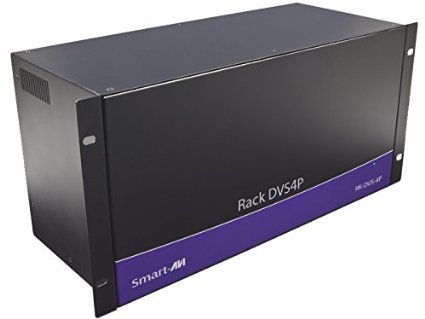

SmartAVI Rackmount with Four 1×4 Splitter Cards (16 DVI Out Signals) CAT6 STP Splitter

Availability:

30 in stock


8,499.00 د.إ

30 in stock

Rackmount with Four 1×4 Splitter Cards (16 DVI Out Signals) CAT6 STP Splitter

The RK-DVS4P is a high-resolution video splitter system designed to broadcast high-definition DVI-I signals up to 25 feet. It has 8 expansion bays, each of which splits one DVI-I signal in to four. This solution simplies having muliple DVD-I splitters with multiple power supplies.

Applications

  • Test Bench Facilities
  • Data Center
  • Presentations
  • Help desk
  • Server Rooms
  • Industrial Floor

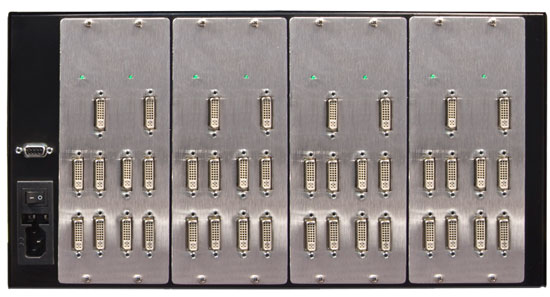

product

Features

  • Supports DVI-D single-link
  • Supports Mac, PC, and Linux DVI
  • Supports High Resolution 1920×1200 60Hz WUXGA
  • Distance: 275 feet with two CAT6 STP cables
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • DDC from internal table for Mac/PC
  • Supports all USB 1.1 Devices Transparently
  • (Flash Drives, Printers, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Compatible with all operating systems
  • Compatible with all major KVM switches
  • Rack Mountable Solution
  • Data recovery for digital video
  • Supports 1.5 and 12Mbps data rates
  • Plug-and-play

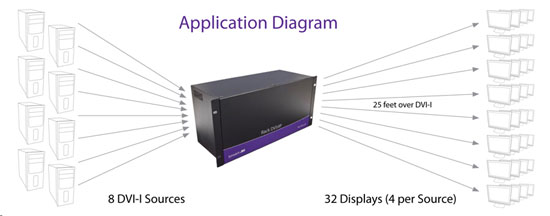

diagram

SmartAVI RK-DVS4P-4P

Mechanical Ā
Height 8.75 in. (22.22cm)
Width 17 in. (43.18 cm.)
Depth 7.5 in. (19.05 cm.)
Input Interface DVI-I (singlelink) female connector
Output Interface DVI-I (singlelink) 4x female connector
Resolution 1920×1200 @ 60H, Resolution up to 1280×1024 min 75H
Power Supply Internal Universal Switchmode PSU (90-240V Input) 5VDC
Upgradable DDC Onboard Flash learning



SKU: RK-DVS4P-4S Categories: , Tags: , ,
Weight 2.3 kg
