SmartAVI Skew Adjustment for all SmartAVI VGA over CAT5 Receivers

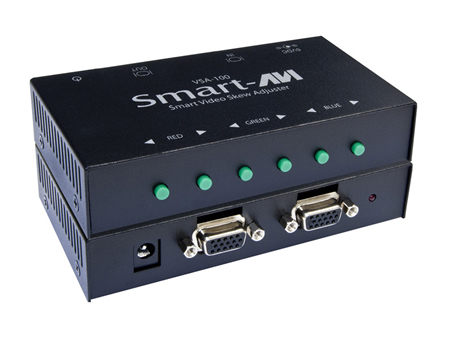

The SmartAVI VSA-100S is a Skew tool for all VGA receivers. It includes the VSA-100, CCVGAMM06, and PS5VD2A.

The VSA-100 is Smart Adjustor that compensates for skew delay between any Red, Green Blue signals transmitted over a twisted pair cable. Any CAT5 or CAT6 cable can introduce delay between the pairs, due to the varying lengths of each pair. The delay causes color distortion and improper alignment. Skew delay increases as the length of the cable increases. The VSA-100 corrects the skew of each color independently, making it the perfect skew correction tool. It can be used with any of SmartAVI?s CAT5 and CAT6 products including our full line of video extenders, splitters and switches.

SmartAVI VSA-100S Features:

• Aligns the RGB of any analog video signal
• Each color can be adjusted individually
• Supports UXVGA and Y-Pb-Pr
• 62 ns total delay
• 2 ns delay step increments
• Memorize and Button Lock functions
• Digitally saves settings and remembers last state
• Compatible with most of the SmartAVI extenders

SmartAVI VSA-100S Applications:

• Corporate or Educational Presentations
• Financial (Remote Servers/User Control)
• Call Centers
• Industrial (Long-Range Workstation Isolation)
• Information Terminals/Kiosks
• Airport Installations (Air Traffic Control/Passenger Information)
• Educational Environments with remote displays

SmartAVI VSA-100S Application Diagram

 SmartAVI VSA-100S Specifications:
