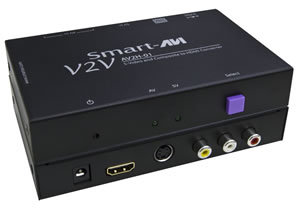

SmartAVI SVideo, Composite Video and Audio to HDMI Converter
SmartAVI SVideo, Composite Video and Audio to HDMI Converter

SmartAVI SVideo, Composite Video and Audio to HDMI Converter

Availability:

30 in stock
Add to Wishlist

1,099.00 د.إ

30 in stock

Add to Wishlist

SmartAVI SVideo, Composite Video and Audio to HDMI Converter

The SmartAVI V2V-AV2H-01 converts S-Video or Composite Video and Stereo Audio to HDMI.

The V2V-AV2H-01 enables you to connect old players and other AV equipment to the newer HDMI format. It has the option to convert S-Video or composite video to HDMI.

SmartAVI V2V-AV2H-01 Features:

  • One S-Video Signal Input
  • One AV Signal Input
  • R/L Audio Sgnal Input
  • One HDMI Signal Output
  • HDMI Signal 720p/60HZ Output
  • Adaptive PAL / NTSC standard
  • LED Indicators
  • Easy to install within minutesĀ

SmartAVI V2V-AV2H-01 Diagram
SmartAVI V2V-AV2H-01 Diagram

SmartAVI V2V-AV2H-01 Specifications:

Mechanical Ā
Width 5.75 in. (14.6 cm.)
Depth 3.25 in. (8.3 cm.)
Height 1.25 in. (3.2 cm.)
Weight 1.0 lb. (0.5 kg.)
S-Video Input Ā
Input Format NTSC/PAL/SECAM
Resolution 800×600, 1024×768, up to 1280×1024@60Hz
Input Interface (1) S-Video Female
Composite Video Input Ā
Input Format NTSC/PAL/SECAM
Resolution 800×600, 1024×768, up to 1280×1024@60Hz
Input Interface (1) RCA Female
Audio Input Ā
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal level 0-1.0 V
Common Mode Rejection at 60 dB
Input Interface Right/Left RCA Female
HDMI Video Output Ā
Format HDMI 1.3b (deep color, xvYcc color space supported)
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 340MHz (10.2Gbps)
Resolution 480i,480p,720i,720p,1080i,1080p
Output Interface (1) HDMI (7.1ch audio & video)
Connector Type A (19-pin female)
Maximum Distance 25 ft.
Power External 100-240 VAC/5VDC2A @ 10W
Environmental Ā
Operating Temperature 0-55C (32-131F)
Storage Temperature -20-85C (-4-185F)
Humidity Up to 95%



SKU: V2V-AV2H-01S Category: Tags: , ,
Weight 0.5 kg
Dimensions 1.25 × 5.75 × 3.25 cm
