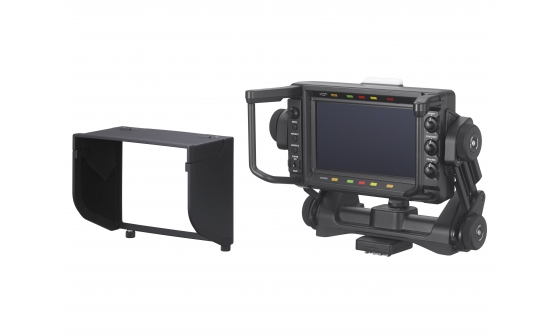

SONY Full HD 7-inch LCD viewfinder, adjustable with large handle HDVF-L770
Availability:
10 in stock
Full HD 7-inch LCD viewfinder, adjustable with large handle
Large Full HD 1920 x 1080 7-inch LCD panel ideal for 4K live production in operation with Sony studio cameras, XDCAM
camcorders, F65 and PMW-F55
The HDVF-L770 Full HD 7-inch LCD viewfinder is usable with the whole range of Sony studio cameras, XDCAM camcorders (with optional VF cable and V-shoe adaptor), F65 and PMW series camcorders such as the PMW-F55 and PMW-F5 in 4K and HD live production configurations. The 1920 x 1080 LCD panel allows for more precise focusing, with a very high 1000:1 contrast ratio and WFM (waveform monitor) function for very precise exposure control. The viewfinder has the same chassis mechanism as the HDVF-EL75 OLED Viewfinder with a large handle, lifter and bezel, and lift/tilt lock lever for adjusting friction. A 3G-SDI input connector adds flexibility for viewing camera or external sources, while six assignable switches on the handle allow for bespoke setups. The viewfinder also has an attachable hood with a flip-up mechanism.
Full HD 1920 x 1080 7-inch LCD panel ideal for 4K and HD live production
Easier and more precise focusing, especially in 4K applications in operation with F65 and PMW-F55 cameras.
1000: 1 high contrast ratio
Better picture viewing in outside broadcast live applications.
WFM (waveform monitor) function
All-in-one picture control monitoring for very precise exposure control.
External 3G-SDI input connector
Allows you to check external video sources in the field, including third party equipment.
Adjustable mechanism and large handle
Lifter, large handle and bezel with lock lever for adjusting friction.
Full HD 1920 x 1080 7-inch LCD panel with high contrast ratio
The precision 1920 x 1080 pixles LCD panel delivers stunning Full HD quality for easier and more precise focusing, especially in 4K applications in operation with F65 and PMW-F55 cameras. The viewfinder also attaches to all Sony studio cameras and XDCAM camcorders (with optional VF cable and V-shoe adaptor).
External 3G-SDI input connector
The 3G-SDI input allows you to monitor SDI external signals up to 3G-SDI. You can check external video sources in the field, including third party equipment, and have an additional video return in addition to the camera.
Hood with flip-up mechanism, plus HDVF cable
The viewfinder is supplied with a hood with flip-up mechanism, as well as a HDVF cable.
Adjustable mechanism and large handle
The HDVF-L770 offers a flexible position adjustment mechanism and large handle incorporating lifter, large handle and bezel with lock lever for adjusting friction. Six assignable switches on the handle allow for bespoke setups.
WFM (waveform monitor) function
The WFM function provides all-in-one picture control monitoring for very precise exposure control and optimal focus adjustment.
High contrast ratio
The very high 1000:1 contrast ratio provides better picture viewing in outside broadcast live applications.
