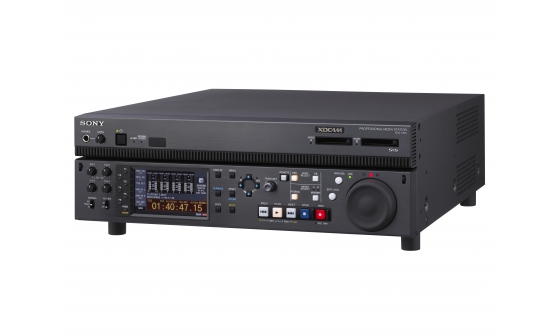

SONY XDCAM Professional Media Station with two SxS memory slots and 1 TB HDD XDS-1000/A6
د.إ59,999.00
SONY XDCAM Professional Media Station with two SxS memory slots and 1 TB HDD XDS-1000/A6
The XDS-1000 supports all SxS cards, including Memory Stick and SDHC, using MEAD adapters. The internal 1 TB hard disk drive and Gigabit Ethernet port enables about 32 hours of continuous recording in HD422 at 50 Mbps and simultaneous access to AV content by multiple users. The XDCAM Station is a professional media station with built-in storage and interfaces for SxS memory cards, supporting the super-fast XDCAM memory workflow. It features better support for multitasking, networking and other IT operations. Adding the XDCAM Station to a hybrid XDCAM workflow makes file-based operation much more convenient and efficient.
Supports all XDCAM storage formats
The XDS-1000 supports all XDCAM and XDCAM EX file formats, codecs and metadata, effectively offering complete format transparency. It also supports industry-standard VDCP, FTP and CIFS protocols.
Familiar VTR-like user interface
The layout of controls on the XDS deck follows industry-standard conventions already familiar to most users. This makes it easy to use, configure and integrate into the overall workflow.
SD / HD cross-conversion
It supports SD and HD as standard, with up-conversion record and up/down/cross-conversion playback.
Enhances network functionality
The XDS-1000 enables users to access growing volumes of files from nonlinear editors without file transfer, offering high-speed file transfer and multiple access over a network. The XDS-1000 provides 4 clients for file transfer and 4 clients for network control.
Multitasking internal storage operations
The internal 1 TB hard disk drive (HDD) can multitask when carrying out some tasks. This increases interoperability and overall efficiency when working with network production systems.
Power Requirements
AC 100 V to 240 V, 50/60 Hz
Power Consumption
170 W
Operating Temperature
+5 to +40Ā°C (+42 to +104Ā°F)
Storage Temperature
-20 to +60Ā°C (-4 to +140Ā°F)
Humidity
20 to 90% (relative humidity)
Mass
15.5 kg (34 lb 2 oz)
Dimensions (W x H x D) (Excluding Protrusions)
424 x 132 x 460 mm (16 3/4 x 5 1/4 x 18 1/8 inches)
Recording/Playback Format
MPEG HD422 (CBR: 50 Mb/s)
MPEG IMX (CBR, 50/40/30 Mb/s)
DVCAM: 4 ch/16 bits/48 kHz
MPEG IMX (CBR, 50/40/30 Mb/s)
DVCAM: 4 ch/16 bits/48 kHz
Recording/Playback Time
50 Mb/s: Approx. 95 min. (PFD50DLA), Approx. 43 min. (PFD23A)
Search Speed Range
-20 to +20 times normal speed
Reference Input
BNC x 2 (including loop through), HD/SD
HD Tri-level sync (0.6 Vp-p/75 Ī©/negative), HD/SD
HD Tri-level sync (0.6 Vp-p/75 Ī©/negative), HD/SD
Analog Audio Input
XLR 3-pin (female) x 2 (channel selectable)
+4/0/-3/-6 dBu (selectable)
+4/0/-3/-6 dBu (selectable)
Digital Audio Input (AES/EBU)
BNC (x4) – 8 channels total (2 ch each) AES-3id-2001
Time Code Input
BNC x 1, SMPTE time code, 0.5 to 18 Vp-p/3.3 kĪ©/unbalanced
Composite Ouput
BNC (x1)
1.0 Vp-p/75 Ī©/negative, SMPTE 170M ,character On/Off
1.0 Vp-p/75 Ī©/negative, SMPTE 170M ,character On/Off
SDI Output
BNC (x 2), HD
1: SMPTE 292M (w/embedded audio), HD
2: SMPTE 292M (w/embedded audio), character On/Off, HD
1: SMPTE 292M (w/embedded audio), HD
2: SMPTE 292M (w/embedded audio), character On/Off, HD
HDMI
Type A 19-pin (x 1), output
Analog Audio Output
XLR 3-pin (male) x 2 (channel selectable)
+4/0/-3/-6 dBu (selectable), 600 Ī©, Lo-Z, balanced
+4/0/-3/-6 dBu (selectable), 600 Ī©, Lo-Z, balanced
Digital Audio Output (AES/EBU)
BNC (x2) – 4 ch (2 ch each, 1/2 ch and 3/4 ch) AES-3id-1995
Headphone Output
JM-60 Stereo phone jack x 1
-13 dBu, 8 Ī©, unbalanced
-13 dBu, 8 Ī©, unbalanced
Video Control
D-sub 9-pin (female) x 1, EIA RS-423
Ethernet
RJ-45 x 1
1000Base-T: IEEE802.3ab
100Base-TX: IEEE802.3u
10Base-T: IEEE802.3
1000Base-T: IEEE802.3ab
100Base-TX: IEEE802.3u
10Base-T: IEEE802.3
Remote (9P) Input
D-sub, 9-pin (female) (x2), RS-422A
AC Input
x 1, 100 to 240 V, 50/60 Hz
GPIO
D-sub, 15-pin (female) (x1), Input: TTL Level, Output: open collector
Video Performance Specifications
Sampling Frequency
Y: 74.25 MHz, Pb/Pr: 37.125MHz
Quantization
8 bits/sample
Error Correction
Reed Solomon Code
Processor Adjustment Range Specifications
Video Level
-ā to +3 dB
Chroma Level
-ā to +3 dB
Setup/Black Level
Ā±30 IRE
Chroma Phase
Ā±30Ā°
System Sync Phase
Ā± 15 Ī¼s
System SC Phase
0 to 400 ns
Audio Performance Specifications
Sampling Frequency
48 kHz
Quantization
24 bits
Frequency Response
20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)
Dynamic Range
More than 90 dB
Distortion
Less than 0.05% (at 1kHz)
Headroom
20/18/16/12 dB (selectable)
