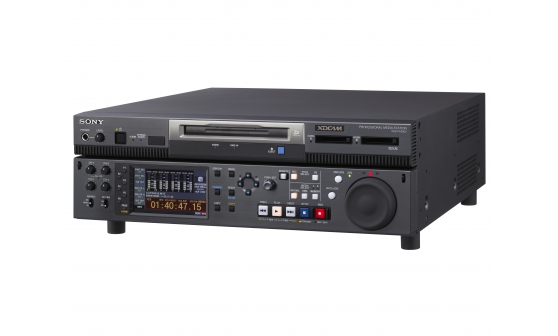

SONY XDCAM Deck / IT Server with two SxS memory slots, Professional Disc drive and 500 GB SSD XDS-PD2000


  • 0.5 TB of Solid State Internal Storage
  • 16 Hours Of Recording with 50 Mbps Clips
  • HD422 50 Mbps Recording
  • Compatible with HD & SD Signals
  • Up/Down & Cross-Conversion System
  • High-speed File Transfer
  • Fast Start-up & Safe Shut-down
  • Low Power Consumption (210 W)
  • Conventional VTR-like User Interface

149,999.00 د.إ

XDCAM Deck / IT Server with two SxS memory slots, Professional Disc drive and 500 GB SSD

The XDS-PD2000 supports all SxS card types, including Memory Stick and SDHC, using MEAD adapters. It also supports all XDCAM Professional Disc models in all recording formats and modes. The internal 512 GB solid-state drive (SSD) and Gigabit Ethernet port enable about 16 hours of continuous recording in HD422 at 50 Mbps and simultaneous access to AV content by multiple users. The XDCAM Station is a professional media station with built-in storage and interfaces for both Professional Disc media and SxS memory cards, enabling hybrid operation in an XDCAM workflow. It features better support for multitasking, networking, and other IT operations. Adding the XDCAM Station to an XDCAM workflow makes file-based operation much more convenient and efficient. Designed for increased functionality with the Professional Disc drive, the XDS-PD2000’s internal fourth-generation (4G) Professional Disc drive enables the partial transfer of content or full backup from the drive to the internal 512 GB SSD. Furthermore, content on the internal SSD can be partially copied to the Professional Disc. Simultaneous operation of baseband recording and playback and slow motion is possible, and editing while recording (growing file editing) is also possible.
Supports fourth-generation (4G) Professional Disc drive and Quad Layer discs
The XDS-PD2000 supports the new high-speed DCHS optical drive. It handles Dual Layer (PFD50DLA), Single Layer (PFD23A) and Quad Layer (PFD128QLW) discs, as well as SxS Pro and SxS-1 memory cards and card adapters for Memory Sticks and SDHCs. The 4G drive and Quad Layer discs offer larger storage volumes and higher access speeds. They are ideal for archiving large quantities of content.
Multitasking internal storage operations
The internal 512 GB solid-state drive (SSD) can multitask when carrying out some tasks. This increases interoperability and overall efficiency when working with network production systems.
Enhances network functionality
The XDS-PD2000 enables users to access growing volumes of files from nonlinear editors without file transfer, offering high-speed file transfer and multiple access over a network. The XDS-PD2000 provides 8 clients for file transfer and 8 clients for network control.
Supports all XDCAM storage formats
The XDS-PD2000 brings the XDCAM Professional Disc optical memory and XDCAM EX SxS solid-state memory workflows together in a powerful “bridge” solution. The XDS-PD2000 supports all XDCAM and XDCAM EX file formats, codecs, and metadata, effectively offering complete format transparency. It also supports industry-standard VDCP, FTP and CIFS protocols.
Familiar VTR-like user interface
The layout of controls on the XDS deck follows industry-standard conventions already familiar to most users. This makes it easy to use, configure and integrate into the overall workflow.
SD / HD cross-conversion
The XDS-PD2000 supports SD and HD as standard, with up-conversion recording and up/down/cross-conversion playback.
SKU: XDS-PD2000 Category: Tags: , , , ,

General Specifications

Power Requirements
AC 100 V to 240 V, 50/60 Hz
Power Consumption
210 W
Operating Temperature
+5 to +40°C (+42 to +104°F)
Storage Temperature
-20 to +60°C (-4 to +140°F)
Humidity
20 to 90% (relative humidity)
Mass
16 kg (35 lb 9 oz)
Dimensions (W x H x D) (Excluding Protrusions)
424 x 132 x 460 mm (16 3/4 x 5 1/4 x 18 1/8 inches)
Recording/Playback Format
MPEG HD422 (CBR: 50 Mb/s)
MPEG HD:
MPEG IMX (CBR, 50/40/30 Mb/s)
DVCAM (CBR, 25 Mb/s)
Recording/Playback Time
35 Mb/s, 4-ch audio: More than 145 min. (PFD50DLA), More than 65 min. (PFD23A)
35 Mb/s, 2-ch audio (playback only): More than 150 min. (PFD50DLA), More than 68 min. (PFD23A)
25 Mb/s, 4-ch audio: Approx. 190 min. (PFD50DLA), Approx. 85 min. (PFD23A) 25 Mb/s, 2-ch audio (playback only): Approx. 200 min. (PFD50DLA), Approx. 90 min. (PFD23A)
18 Mb/s, 4-ch audio (playback only): More than 248 min. (PFD50DLA), More than 112 min. (PFD23A)
18 Mb/s, 2-ch audio (playback only): More than 265 min. (PFD50DLA), More than 122 min. (PFD23A)
Search Speed Range
-20 to +20 times normal speed
-2 to +2 times normal speed
-1 to +1 times normal speed
-35 to +35 times normal speed

Inputs/Outputs Specifications

Reference Input
BNC x 2 (including loop through), HD/SD
SD blackburst/composite sync (0.286 Vp-p/75 Ī©/negative), HD/SD
SDI Input
BNC x 1, HD/SD selectable
(HD/SD switchable)
SMPTE 292M (w/embedded audio), HD
SMPTE 259M (w/embedded audio), HD
Analog Audio Input
XLR 3-pin (female) x 2 (channel selectable)
+4/0/-3/-6 dBu (selectable)
10 kΩ, balanced
Digital Audio Input (AES/EBU)
BNC (x4) – 8 channels total (2 ch each) AES-3id-2001
Time Code Input
BNC x 1, SMPTE time code, 0.5 to 18 Vp-p/3.3 kΩ/unbalanced
Composite Ouput
BNC (x1)
1.0 Vp-p/75 Ī©/negative, SMPTE 170M ,character On/Off
SDI Output
BNC (x 2), HD
1: SMPTE 292M (w/embedded audio), HD
2: SMPTE 292M (w/embedded audio), character On/Off, HD
1: SMPTE 259M (w/embedded audio), SD
2: SMPTE 259M (w/embedded audio), character On/Off, SD
Monitor Video
HD15 (VGA) x1 – for front LCD panel output
HDMI
Type A 19-pin (x 1), output
Analog Audio Output
XLR 3-pin (male) x 2 (channel selectable)
+4/0/-3/-6 dBu (selectable), 600 Ī©, Lo-Z, balanced
Monitor Audio
XLR 3-pin (male) x 2, +4 dBu, 600Ī©, Lo-Z, balanced
Digital Audio Output (AES/EBU)
BNC (x4) – 8 channels total (2 ch each) AES-3id-2001
Headphone Output
JM-60 Stereo phone jack x 1
-13 dBu, 8 Ī©, unbalanced
Time Code Output
BNC x 1, SMPTE time code, 1.0 Vp-p/75 Ī©/unbalanced
Video Control
D-sub 9-pin (female) x 1, EIA RS-423
Ethernet
RJ-45 x 1
1000Base-T: IEEE802.3ab
100Base-TX: IEEE802.3u
10Base-T: IEEE802.3
Remote (9P) Input
D-sub, 9-pin (female) (x2), RS-422A
Remote (9P) Input/Output
D-sub 9-pin (female) x 1, RS-422A
Maintenance
USB x 2
AC Input
x 1, 100 to 240 V, 50/60 Hz

Video Performance Specifications

Sampling Frequency
Y: 74.25 MHz, R-Y/B-Y: 37.125 MHz
Quantization
8 bits/sample
Error Correction
Reed Solomon Code

Processor Adjustment Range Specifications

Video Level
-āˆž to +3 dB
Chroma Level
-āˆž to +3 dB
Setup/Black Level
±30 IRE/±210 mV
Chroma Phase
±30°
System Sync Phase
± 15 μs
System SC Phase
0 to 400 ns
