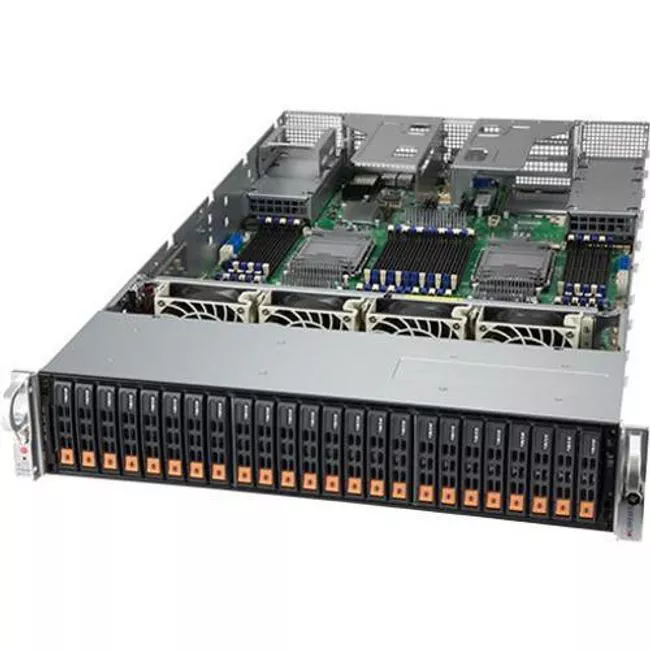

Supermicro SYS-240P-TNRT 2U Rackmount Server – Intel C621 Chipset – 4x LGA-4189 Socket P+
- Rack Height: 2U
- Product Type: Barebone System
- Condition: New
- Category: Computers and Portables
AED26,399.00
Rackmount Servers
Superior Performance, Efficiency and Time-to-Market for Rapid Adoption
| General Information | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-240P-TNRT |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 240P-TNRT |
| Product Name | SuperServer SYS-240P-TNRT (Black) |
| Product Type | Barebone System |
| Processor | |
|---|---|
| Number Of Processors Supported | 4 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Bronze |
| Xeon Silver | |
| Xeon Gold | |
| Xeon Platinum | |
| 64-Bit Processing | Yes |
| Chipset | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
|---|---|
| Maximum Memory Supported | 12 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number Of Total Memory Slots | 48 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
|---|---|
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS |
| Display & Graphics | |
|---|---|
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
|---|---|
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
|---|---|
| Number Of Total Expansion Bays | 24 |
| Number Of Internal 2.5″ Bays | 24 |
| Number Of Total Expansion Slots | 10 |
| Number Of PCI Express X8 Slots | 6 |
| Number Of PCI Express X16 Slots | 4 |
| Power Description | |
|---|---|
| Input Voltage | 120 V AC |
| 230 V AC | |
| Maximum Power Supply Wattage | 2000 W |
| Physical Characteristics | |
|---|---|
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5″ |
| Width | 17.3″ |
| Depth | 31.6″ |
| Miscellaneous | |
|---|---|
| Package Contents | SuperServer SYS-240P-TNRT (Black) |
| 1 x Super X12QCH+ Motherboard | |
| 1 x 2U Chassis | |
| 1 x 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5″ NVME Gen4 / SAS / SATA storage devices.,RoHS | |
| 1 x 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| 3 x [NR] 2×4,P3.0 to 2×4,P4.2,YL/RED,9.5A,55cm,16AWG,RoHS | |
| 1 x [NR] SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 39CM,32AWG,85 O | |
| 1 x [NR] SLIMLINE SAS x8 to SLIMLINE SAS x8, INT, 10CM,32AWG,85 | |
| 4 x [NR]SlimlineLP x8 (STR) to SlimlineLP x8 (STR),8CM,85 OHM,Ro | |
| 3 x [NR]Slimline x4 (STR) to Slimline x4 (STR),INT,85CM,100 OHM | |
| 8 x Black gen-3 hot-swap 2.5″; Tool-less HDD tray (clip design) | |
| 2 x Black 2.5″” HDD dummy cover for SC213,216 (Cover 8 HDD) | |
| 1 x 2U LHS DCO Riser card with two PCI-E 4.0 x16 and one PCI-E | |
| 1 x 2U RHS DCO Riser card with two PCI-E 4.0 x16 and one PCI-E | |
| 4 x 2U Passive Wide CPU Heatsink (92x113x65mm) for X12 ICX/CPX CPU, Heatpipe | |
| Environmentally Friendly | Yes |
