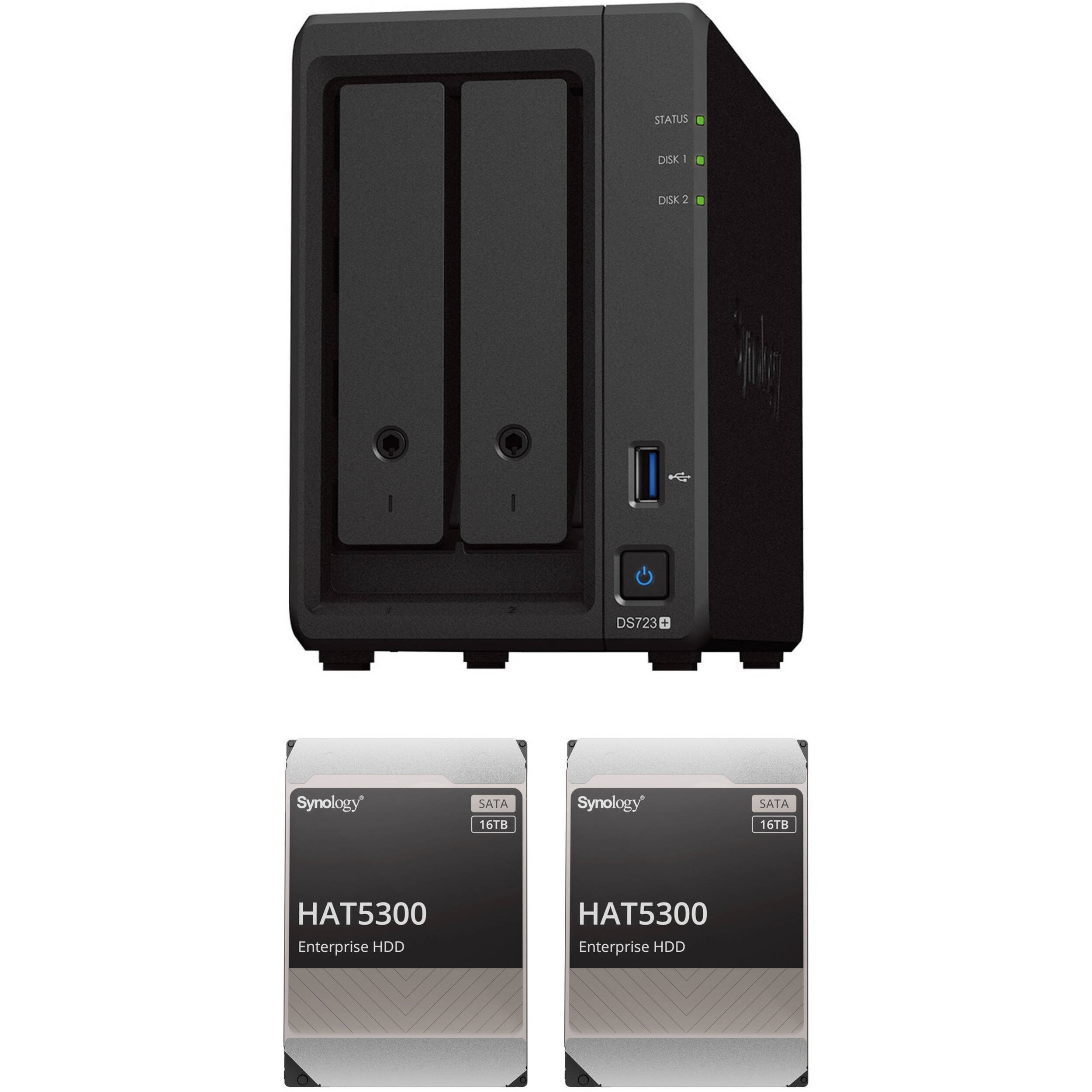

Synology 32TB DiskStation DS723+ 2-Bay NAS Enclosure Kit with Synology Enterprise Drives (2 x 16TB)

Add to Wishlist

Enjoy strong performance and versatility while expanding your storage capacity with the Synology DiskStation DS723+ 2-Bay NAS Enclosure. Up to two separately purchased 2.5″ / 3.5″ SATA drives may be installed into this compact enclosure and configured for RAID 0, 1, Synology Hybrid, or JBOD modes. Two M.2 2280 SSD cache drives may also be installed to enhance performance, achieving maximum read and write speeds of 471 MB/s and 225 MB/s, respectively. The two Gigabit Ethernet ports may be linked together with link aggregation, allowing you to quickly backup and share data with connected devices.

8,050.00 د.إ

Add to Wishlist

Synology DS723+ External HDD Overview

This B&H Kit combines the Synology DiskStation DS723+ 2-Bay NAS Enclosure with two Synology 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDDs for a storage capacity of 32TB.

Synology DiskStation DS723+ 2-Bay NAS Enclosure

Enjoy strong performance and versatility while expanding your storage capacity with the Synology DiskStation DS723+ 2-Bay NAS Enclosure. Up to two separately purchased 2.5″ / 3.5″ SATA drives may be installed into this compact enclosure and configured for RAID 0, 1, Synology Hybrid, or JBOD modes. Two M.2 2280 SSD cache drives may also be installed to enhance performance, achieving maximum read and write speeds of 471 MB/s and 225 MB/s, respectively. The two Gigabit Ethernet ports may be linked together with link aggregation, allowing you to quickly backup and share data with connected devices.

The DiskStation DS723+ is designed for easy expansion so that it can adapt to your changing needs. This includes installing up to 32GB of ECC DDR4 memory and a 10G network upgrade module. The DiskStation Manager (DSM) operating system includes built-in file and photo management, data protection, virtualization, and surveillance solutions.

DiskStation DS723+
Performance
The Synology DiskStation DS723+ is powered by a 2.6 GHz AMD Ryzen R1600 dual-core processor with a 3.1 GHz boost speed and 2GB of ECC DDR4 memory to support fast and reliable data transfers. You can improve performance by installing up to a 32GB ECC DDR4 SO-DIMM memory module.
Network Connectivity
The two Gigabit Ethernet ports may be bonded using link aggregation, providing automatic network failover and load balancing. You may also add a 10G Network Upgrade Module to increase your bandwidth with compatible network devices.
Capacity Expansion
Connecting a separately available DX517 expansion unit to the eSATA port allows for a maximum of seven storage drives. External drives may also be connected to the USB-A 3.2 Gen 1 port.
Synology DiskStation Manager (DSM)
Data Protection & Integrity
Safeguard your critical data with the powerful storage management features of Synology DSM, built on the advanced Btrfs file system.

  • Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs.
  • File- and folder-level data restoration enables recovery of specific files or folders.
  • Flexible storage quota system helps admins manage available space by specifying storage limits for shared folders.
  • File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations.
  • Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool.
Data & Device Backup Solutions
Synology DSM comes standard with a complete package of backup solutions.

  • Active Backup Suite consolidates backup tasks and offers rapid restoration of Windows and Linux endpoints, VMs, Synology NAS, and SaaS applications.
  • Snapshot Replication creates point-in-time copies of shared folders and LUNs to protect them from accidental modifications or ransomware incidents.
  • Hyper Backup backs up your NAS data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options.
  • C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data.
Collaboration and Sharing Tools
Synology’s productivity suite provides a private cloud solution for on-site and remote workers to concurrently edit documents, share files, manage emails, send instant messages, and more.

  • Synology Drive is a cloud file management solution that supports file sharing, remote data access, cross-device and cross-site synchronization, on-demand file restoration, and backup.
  • The Synology Office extension lets users collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection.
  • Synology Photos serves as a media organization hub for enthusiasts and professionals looking to efficiently manage and share their photos and videos through intuitive browsing options and secure sharing methods.
  • Synology Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in the cloud to enable seamless cross-site synchronization and local file access at LAN speed.
Private Video Surveillance
Synology Surveillance Station transforms the DS723+ into a powerful Network Video Recorder (NVR) solution with support for up to 40 IP cameras.

  • 8,300+ supported camera models.
  • ONVIF support for a broader selection of cameras.
  • Private, subscription-free storage of recordings.
  • Access through web browsers, desktop clients, or mobile apps.
  • Event-based rules to trigger specific actions.
  • Email, SMS, and push notification options.
Virtualization & Certified Storage
Your DS723+ can serve as virtual machine storage, VM backup server, and a lightweight container and VM host. It is fully certified as storage for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments.

  • Synology Storage Console for VMware or Windows platforms lets you manage VM storage components directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.
  • Host light containers and VMs for testing, sandboxing, and emergency recovery purposes with Docker and Synology Virtual Machine Manager, a native hypervisor that supports Windows, Linux, and Virtual DSM10.

UPC: 846504004447
Synology 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDD

Designed to tackle demanding, high-volume workloads in 24/7 environments, the 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDD from Synology has been optimized for their storage solutions and enables a high sequential throughput that helps maximize the number of clients a system can sustain. Engineered for improved dependability, the HAT5300 has a Mean Time to Failure (MTTF) rating of 2.5 million hours and a yearly workload rating of 550TB. Also featured is a storage capacity of 16TB, a SATA III 6 Gb/s interface, a 512MB cache, and a rotational speed of 7200 rpm, all of which help to ensure uninterrupted data transfers with sustained speeds of up to 262 MB/s.

Highlights
Enterprise Reliability and Durability
For demanding 24/7 environments, rated for 2.5 million hours MTTF, and up to 550TB per year workloads
Persistent Write Cache Technology
Minimizes the chance of data corruption in the event of sudden power loss
Better Together
Firmware and DiskStation Manager (DSM) optimizations improve multi-client sequential read performance by up to 23%
One-Stop Update
Get automatic firmware updates together through DSM updates, reducing the need for additional maintenance sessions
For Synology, by Synology
Stringent validation and up to 300,000 hours of tests helps ensure greater reliability in Synology systems
General Features
Scale Up Confidently
Synology HAT5300 drives are engineered to provide fast and dependable performance, even for a large number of clients. Firmware and software collaborate to deliver enhanced performance, with sequential read speeds that are 23% higher than drives with a similar capacity. The HAT5300 provides outstanding performance for large-scale video surveillance, multimedia post-production, and enterprise file server environments.
Endurance and Reliability
Designed with Synology’s expertise in storage systems, HAT5300 series drives are backed by a 2.5 million hour MTTF rating, workload support of 550TB per year, and persistent write cache technology. Over 300,000 hours of compatibility and stress testing ensure that the HAT5300 can continuously operate, even under extreme workloads with Synology’s NAS and IP SAN lineup. Combined with data protection solutions running on Synology systems, you can confidently depend on your data 24/7 using HAT5300 series drives.
Simplified Maintenance
DSM updates will ensure that compatible Synology drives will be updated together with the operating system. This reduces the number of maintenance sessions IT teams need to schedule while also increasing the entire system’s service availability. Simplify IT infrastructure planning requirements by getting support for the entire system from Synology.
Category: Tag:

Synology DiskStation DS723+ 2-Bay NAS Enclosure Specs

Computing
CPU 2.6 to 3.1 GHz Dual-Core
Processor AMD Ryzen R 1600
Total Installed Memory 2 GB ECC DDR4
User-Replaceable Memory 1 x 2 GB
Total Memory Slots 1 x SO-DIMM
Maximum Memory Capacity 32 GB
General
Number of Bays 2 x 2.5″/3.5″
2 x M.2 (2280)
I/O 1 x USB-A (USB 3.0 / 3.1/3.2 Gen 1 (5 Gb/s))
1 x eSATA
2 x RJ45 (Gigabit Ethernet)
Compatible Drive Interface SATA
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, JBOD, Synology Hybrid
Hot-Swap Support Yes
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CalDAV
FTP
NFS
SMB
SNMP
SSH
Telnet
WebDAV
iSCSI
iSCSI LUN 256
iSCSI Target 128
Max Concurrent Connections 350
Max Folders 512
Max Groups 256
Max User Accounts 2048
Max Volume Number 64
Max Cameras Supported 40
Software
Installed Operating System Synology DiskStation Manager
Supported File Systems Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility Windows
macOS
Android
iOS
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible Yes
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Safari
Security
Encryption AES-NI
Security Features Kensington Security Slot
VPN Client Connections 40
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 8 to 80%
Operating Altitude 16,400′ / 4998 m
Storage Temperature -4 to 140°F / -20 to 60°C
Storage Humidity 5 to 95%
Physical
Status Monitoring LED Indicator
Cooling 1 x Fan
Built-In Speakers None
IR Sensor None
Dimensions 8.8 x 6.5 x 4.2″ / 223 x 166 x 106 mm
Weight 3.3 lb / 1.5 kg
Packaging Info
Package Weight 5.4 lb
Box Dimensions (LxWxH) 11.9 x 11.8 x 4.8″

Synology 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDD Specs

Storage Capacity Total: 16 TB SATA III (6 Gb/s) 3.5″ HDD (7200 rpm)
Read Speed Maximum: 262 MB/s
Write Speed Maximum: 262 MB/s
Buffer 512 MB
Pre-Format None
HDD Specs
Disk Sector Format 512e
Reliability / Data Integrity
Encryption None
Endurance (Total Bytes Written) 550 TB
Mean Time Between Failures (MTBF) 2.5 Million Hours
Electrical
Power Draw 7.63 W (Active)
4.00 W (Idle)
Supported Voltage 5 VDC, 12 VDC
Environmental
Operating Temperature 41 to 140°F / 5 to 60°C
Storage Temperature 104 to 158°F / 40 to 70°C
Operating Shock 70 G / 2.0 ms
Storage Shock 250 G / 2.0 ms
Operating Vibration 0.75 G / 5 to 300 Hz
Storage Vibration 3.0 G / 5 to 500 Hz
Operating Humidity 5 to 90%
Storage Humidity 5 to 95%
Operating Altitude -1,000 to 10,000′ / -304.8 to 3048 m
Storage Altitude -1,000 to 40,000′ / -304.8 to 12,192 m
General
Certifications BSMI, CE, EAC, Kcc, RCM, RoHS, TUV, UL
*as per Manufacturer
Dimensions 5.8 x 4.01 x 1″ / 147 x 101.85 x 26.1 mm
Weight 25.4 oz / 720 g
Packaging Info
Package Weight 1.855 lb
Box Dimensions (LxWxH) 8.8 x 6.1 x 3″
