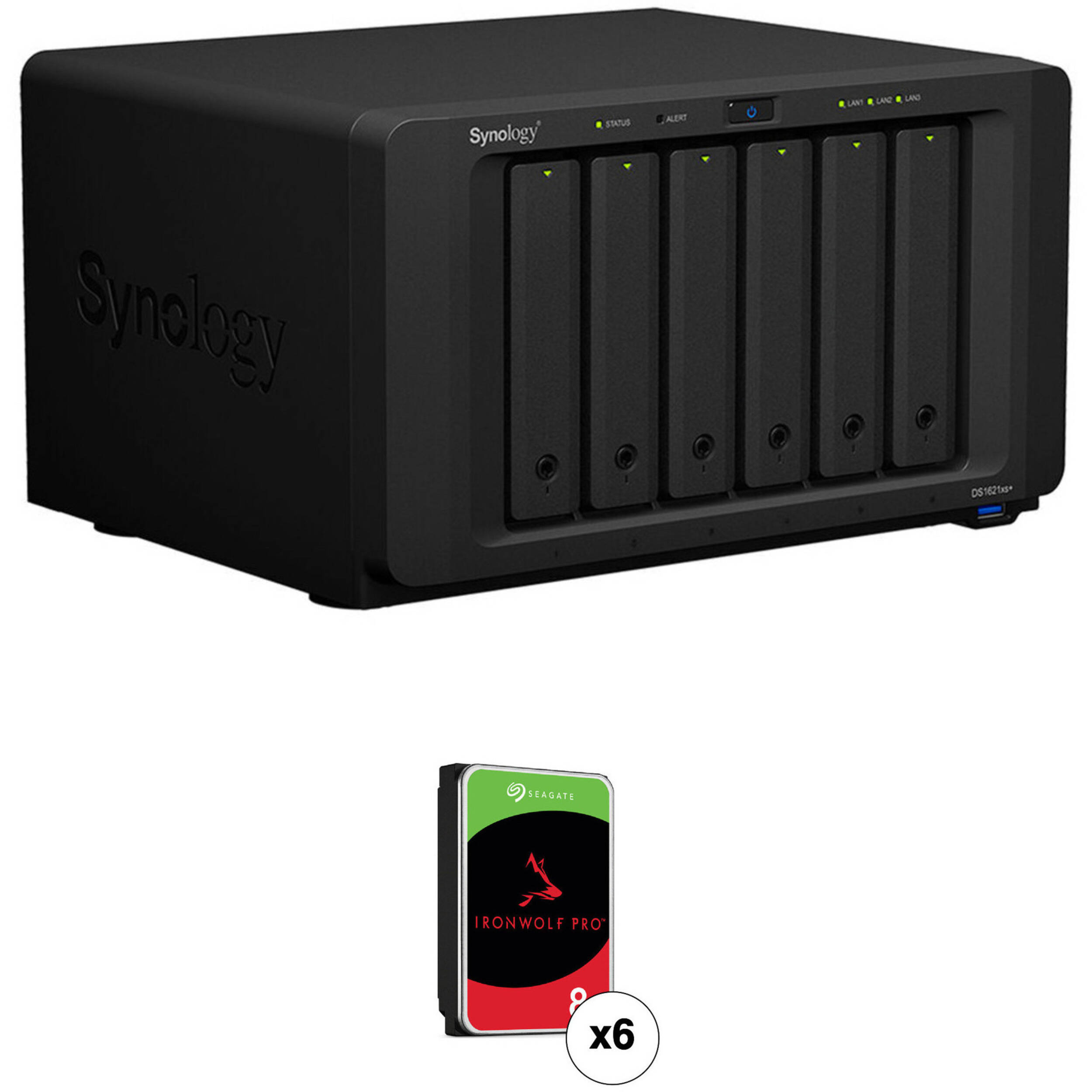

Synology 48TB DiskStation DS1621xs+ 6-Bay NAS Enclosure Kit with Seagate IronWolf Pro NAS Drives (6 x 8TB)


Built for small- and medium-sized businesses that need an efficient and space-saving storage solution, theĀ DiskStation DS1621xs+ 6-Bay NAS EnclosureĀ fromĀ SynologyĀ is a high-end system with server-class performance in a 6-bay desktop form factor. It features dual M.2 2280 NVMe SSD cache slots, a 10 Gigabit Ethernet port, and a scalable storage design, all of which allow you to boost the performance of your NAS. It is also equipped with a PCIe 3.0 x8/x8 slot for system expansion, as well as six drive bays that are capable of natively supporting 3.5″ SATA hard drives, as well as 2.5″ SATA hard drives and SSDs. Using its six drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 16,000 user accounts and 8000 maximum concurrent connections.

14,600.00 د.إ

Synology DS1621xs+ Seagate External HDDĀ Overview

ThisĀ B&H KitĀ combines theĀ Synology DiskStation DS1621xs+ 6-Bay NAS EnclosureĀ with six Seagate 8TB IronWolf Pro 7200 rpm SATA III 3.5″ Internal NAS HDDs for a storage capacity of 48TB.

Synology DiskStation DS1621xs+ 6-Bay NAS Enclosure

Built for small- and medium-sized businesses that need an efficient and space-saving storage solution, theĀ DiskStation DS1621xs+ 6-Bay NAS EnclosureĀ fromĀ SynologyĀ is a high-end system with server-class performance in a 6-bay desktop form factor. It features dual M.2 2280 NVMe SSD cache slots, a 10 Gigabit Ethernet port, and a scalable storage design, all of which allow you to boost the performance of your NAS. It is also equipped with a PCIe 3.0 x8/x8 slot for system expansion, as well as six drive bays that are capable of natively supporting 3.5″ SATA hard drives, as well as 2.5″ SATA hard drives and SSDs. Using its six drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 16,000 user accounts and 8000 maximum concurrent connections.

The DiskStation DS1621xs+ runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 2.2 GHz Intel Xeon D-1527 Quad-Core with a burst frequency of up to 2.7 GHz, and its 8GB of DDR4 ECC RAM, which can be upgraded to 32GB, allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving read speeds of up to 3100 MB/s and when connected to two DX517 expansion units, up to 16 total drives are supported.

Also featured are three USB 3.0 Type-A ports, which allow it to be connected to your Windows or Mac system, as well as two eSATA ports. Network connectivity is achieved via the 10GbE port, or two Gigabit Ethernet ports, both of which support Link Aggregation and Failover, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS1621xs+ supports a variety of modes, including RAID 0, 1, 5, 6, and 10, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

The DS1621xs+ is engineered to be energy efficient. Not only does it offer dual 92 x 92mm fans to help keep the system running cool, its noise-dampening design of 25.2 dB(A) makes for quiet operation. The server supports numerous scheduled power on/off cycles and hard-drive hibernation to further minimize power consumption and operation expenses.

The Synology DiskStation DS1621xs+ 6-Bay NAS Enclosure operates using a 250W power supply that runs using 100-240 VAC at 50/60 Hz. Included is an accessory pack, a power cord, and two RJ45 LAN cables. It is protected by a limited 5-year warranty.

General Features
Supercharge Your Storage with Speedy Performance
The DS1621xs+ comes with built-in M.2 2280 NVMe SSD cache slots capable of providing I/O response speeds that are up to 20 times faster than hard drives without occupying front drive bays. The built-in 10GbE port provides fast data transmission and can be bonded with an additional network interface card for higher network bandwidth.
Limited 5-Year Warranty
Synology is committed to product innovation and quality. They guarantee a robust and reliable data management experience with a limited 5-year warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
Ultimate Backup Solution
The DS1621xs+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

Active Backup for Businesses
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.

Hyper Backup
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.

Drive Package
Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.

Active Backup for Microsoft 365 / G Suite
Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Real-Time Collaboration on Your Private Cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
Virtual Machine Manager
Sandbox new software, manage resources using a single interface, and increase deployment flexibility with Synology Virtual Machine Manager. Run Windows, Linux, and Virtual DSM instances on your Synology NAS in just a few steps.

Snapshots for Virtual Machines
Clone and restore complete virtual machines within seconds.

Live Migration
Seamlessly migrate virtual machines from one Synology NAS to another.

Multi-Tenant Environment
Create multiple isolated virtual machines for business units or departments.

Powered by Synology DSM
Central Management System
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.

Synology MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.

Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Security
Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats.

Synology Drive
A versatile solution for file management and synchronization.

Surveillance Station
Complete surveillance solution for recording, monitoring, and management.

UPC: 846504003655
Seagate 8TB IronWolf Pro 7200 rpm SATA III 3.5″ Internal NAS HDD (CMR, OEM)

Designed for use in 1-16 bay NAS environments within commercial and enterprise settings, theĀ 8TB IronWolf Pro 7200 rpm SATA III 3.5″ Internal NAS HDDĀ fromĀ SeagateĀ is built to withstand 24/7 operation, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5″ form factor, and a 256MB cache, providing users with ample storage capacity with data transfer speeds of up to 214 MB/s. The IronWolf Pro also has an MTBF rating of 1.2 million hours, a workload rate of up to 300TB per year, and an annualized failure rate (AFR) of 0.73%. Seagate includes a limited 2-year Data Recovery Service that helps you retrieve damaged data in the event of a mechanical error, accident, or natural disaster, and overall protection is provided by a limited 5-year warranty.

Please be aware that this drive comes in OEM packaging.

General Features
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic times on the NAS
IronWolf Health Management
IronWolf Health Management focuses on prevention, intervention, and recovery
Seagate Rescue Data Recovery
IronWolf Pro comes with extra peace of mind for most mechanical, accidental, or natural disasters. With a 90% success rate of in-house recovery, Seagate has your back with an included 2-year Rescue Data Recovery plan
Rotational Vibration (RV) Mitigation
IronWolf Pro comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
Multi-User Environments
IronWolf Pro provides a workload rate of 300TB per year. Multiple users can upload and download data to the NAS server, knowing IronWolf Pro can handle the workload, whether you are a creative professional or a small business
Cache Memory
IronWolf Pro provides 256MB of cache memory, allowing your NAS to serve data faster
1.2 Million Hours MTBF | Limited 5-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24×7 Performance
Access the data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
1-16 bay business network attached storage (NAS)
Backup, archiving, and disaster recovery
On-premise private cloud
Virtual storage

Synology DiskStation DS1621xs+ 6-Bay NAS EnclosureĀ Specs

Computing
CPU 2.2Ā toĀ 2.7 GHz Quad-Core
Processor Intel Xeon D-1527
Total Installed Memory 8 GB ECC DDR4
User-Replaceable Memory 1 xĀ 8 GB
Total Memory Slots 2 xĀ SO-DIMM
Maximum Memory Capacity 32 GB
General
Number of Bays 6 xĀ 2.5″/3.5″
2 xĀ M.2 (2280)
I/O 1 xĀ RJ45 (10GbE)
2 xĀ RJ45 (Gigabit Ethernet)
3 xĀ USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
2 xĀ eSATA
Compatible Drive Interface SATA (Unspecified Version)
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 6, F1, JBOD
Hot-Swap Support Yes
PCI Expansion 1 xĀ PCIe 3.0 (x8 Electrical)
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS
CalDAV
FTP
HTTP
HTTPS
NFS
SMB
SMB 2.1
SMB 3.0
SNMP
WebDAV
iSCSI
iSCSI LUN 512
iSCSI Target 256
Max Concurrent Connections 8000
Max Folders 512
Max Sync Tasks 32
Max Groups 512
Max User Accounts 4000
Max Volume Number 256
Max Cameras Supported 75
Software
Supported File Systems Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT, HFS+, NTFS, exFAT
OS Compatibility Windows
Linux
*As of October, 2020: Check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Internet Explorer, Safari
Supported Languages Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption AES-NI
Security Features Kensington Security Slot
VPN Server Connections 40
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source Internal Power Supply
Power Consumption 62.85 W (Typical)
34.26 W (Standby)
PSU Wattage 1 x 250 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -5 to 140°F / -20 to 60°C
Certifications BSMI, CCC, CE, EAC, FCC, Kcc, RCM, RoHS, VCCI
*as per Manufacturer
Physical
Status Monitoring LED Indicator
Cooling 2 xĀ 92 mm Fans
Noise Level 25.2 dBA
Built-In Speakers None
Dimensions 11.1 x 9.6 x 6.5″ / 282 x 243 x 166Ā mm
Weight 11.7Ā lb / 5.3Ā kg
Packaging Info
Package Weight 15.265 lb
Box Dimensions (LxWxH) 15.6 x 13.2 x 12.4″

Seagate 8TB IronWolf Pro 7200 Rpm SATA III 3.5″ Internal NAS HDD (CMR, OEM)Ā Specs

Storage Capacity 8 TB SATA III (6 Gb/s) 3.5″ HDD (7200 rpm)
Read Speed Maximum: 214 MB/s
Write Speed Not Specified by Manufacturer
Buffer 256 MB
Latency 4.2 ms
HDD Specs
Heads 10
Platters 5
Areal Density 930 Gb/in²
Disk Sector Format 512e
Noise Level 2.8 dB (Active)
1.8 dB (Idle)
Reliability / Data Integrity
Annualized Failure Rate (AFR) 0.73 %
Encryption None
Endurance (Total Bytes Written) 300 TB
Load/Unload Cycles 600,000
Mean Time Between Failures (MTBF) 1.2 Million Hours
Non-Recoverable Read Errors per Bits Read 1 in 1015
Electrical
Power Draw 7.4 W (Active)
4.4 W (Idle)
0.8 W (Standby)
Supported Voltage 5 VDC, 12 VDC
Current 2.0 A at 12 VDC
Environmental
Operating Temperature 41 to 140°F / 5 to 60°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Shock 70 G / 2.0 ms
Storage Shock 300 G / 2.0 ms
Operating Vibration 0.7 G / 5 to 500 Hz
Storage Vibration 2.27 G / 10 to 500 Hz
Operating Humidity 5 to 95%
Storage Humidity 5 to 95%
Operating Altitude -1,000 to 10,000′ / -304.8 to 3048Ā m
Storage Altitude -1,000 to 40,000′ / -304.8 to 12,192Ā m
General
Dimensions 5.8 x 4 x 1″ / 147.32 x 101.6 x 25.4Ā mm
Weight 1.43Ā lb / 0.65Ā kg
Packaging Info
Package Weight 1.9 lb
Box Dimensions (LxWxH) 8.8 x 6.1 x 2.9″
