AED12,999.00

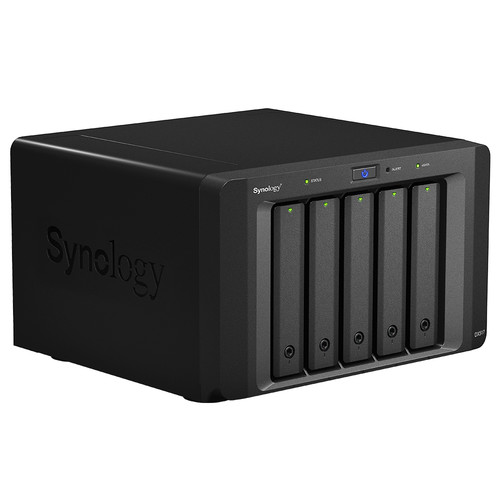

This Kit combines the Synology DX517 5-Bay Expansion Enclosure with five Seagate 12TB IronWolf 7200 rpm SATA III 3.5″ NAS hard drives for a total storage capacity of 60TB.
Built to support on-the-fly volume expansion and local backups, the DX517 5-Bay Expansion Enclosure from Synology adds an additional five 3.5″/2.5″ SATA drive bays to select DiskStation solutions.. Its drive bays are hot-swappable and screwless, and included is an AC power cord, an accessory pack, and an eSATA expansion cable. Protection is provided by a limited 3-year warranty.
Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 12TB IronWolf 7200 rpm SATA III 3.5″ Internal NAS HDD (CMR) from Seagate is built to withstand 24×7 operations, or 8760 hours per year. This 12TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5″ form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.
| Number of Bays | 5 x 2.5″/3.5″ |
| I/O | 1 x eSATA |
| Compatible Drive Interface | SATA III |
| Media Card Slots | None |
| Hot-Swap Support | Yes |
| Carrier-Less Drive Bays | No |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | Internal Power Supply |
| Power Consumption | 29.9 W (Typical) 2.4 W (Standby) |
| PSU Wattage | 1 x 200 W |
| Operating Temperature | 40 to 104°F / 4 to 40°C |
| Operating Humidity | 5 to 95% |
| Storage Temperature | 14 to 158°F / -10 to 70°C |
| Certifications | BSMI, CE, FCC, RoHS *as per Manufacturer |
| Cooling | 2 x 80 mm Fans |
| Noise Level | 21.5 dBA |
| Dimensions | 9.8 x 9.2 x 6.2″ / 248 x 233 x 157 mm |
| Weight | 8.6 lb / 3.9 kg |
| Package Weight | 12 lb |
| Box Dimensions (LxWxH) | 14.7 x 13.6 x 12.7″ |
| Storage Capacity | Total: 12 TB SATA III (6 Gb/s) 3.5″ HDD (7200 rpm) |
| Read Speed | Maximum: 210 MB/s |
| Write Speed | Not Specified by Manufacturer |
| Buffer | 256 MB |
| Heads | 15 |
| Noise Level | 2.8 dB (Active) 1.8 dB (Idle) |
| Encryption | None |
| Endurance (Total Bytes Written) | 180 TB |
| Load/Unload Cycles | 600,000 |
| Mean Time Between Failures (MTBF) | 1.0 Million Hours |
| Non-Recoverable Read Errors per Bits Read | 1 in 1015 |
| Power Draw | 7.8 W (Active) 5.0 W (Idle) 0.8 W (Standby) |
| Supported Voltage | 5 VDC, 12 VDC |
| Current | 1.8 A at 12 VDC |
| Operating Temperature | 32 to 149°F / 0 to 65°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Shock | 70 G / 2.0 ms |
| Storage Shock | 250 G / 2.0 ms |
| Certifications | FCC, UL, cUL *as per Manufacturer |
| Dimensions | 5.78 x 4.01 x 1.02″ / 146.81 x 101.85 x 25.91 mm |
| Weight | 1.52 lb / 0.69 kg |
| Package Weight | 1.75 lb |
| Box Dimensions (LxWxH) | 8.8 x 6.1 x 3″ |
