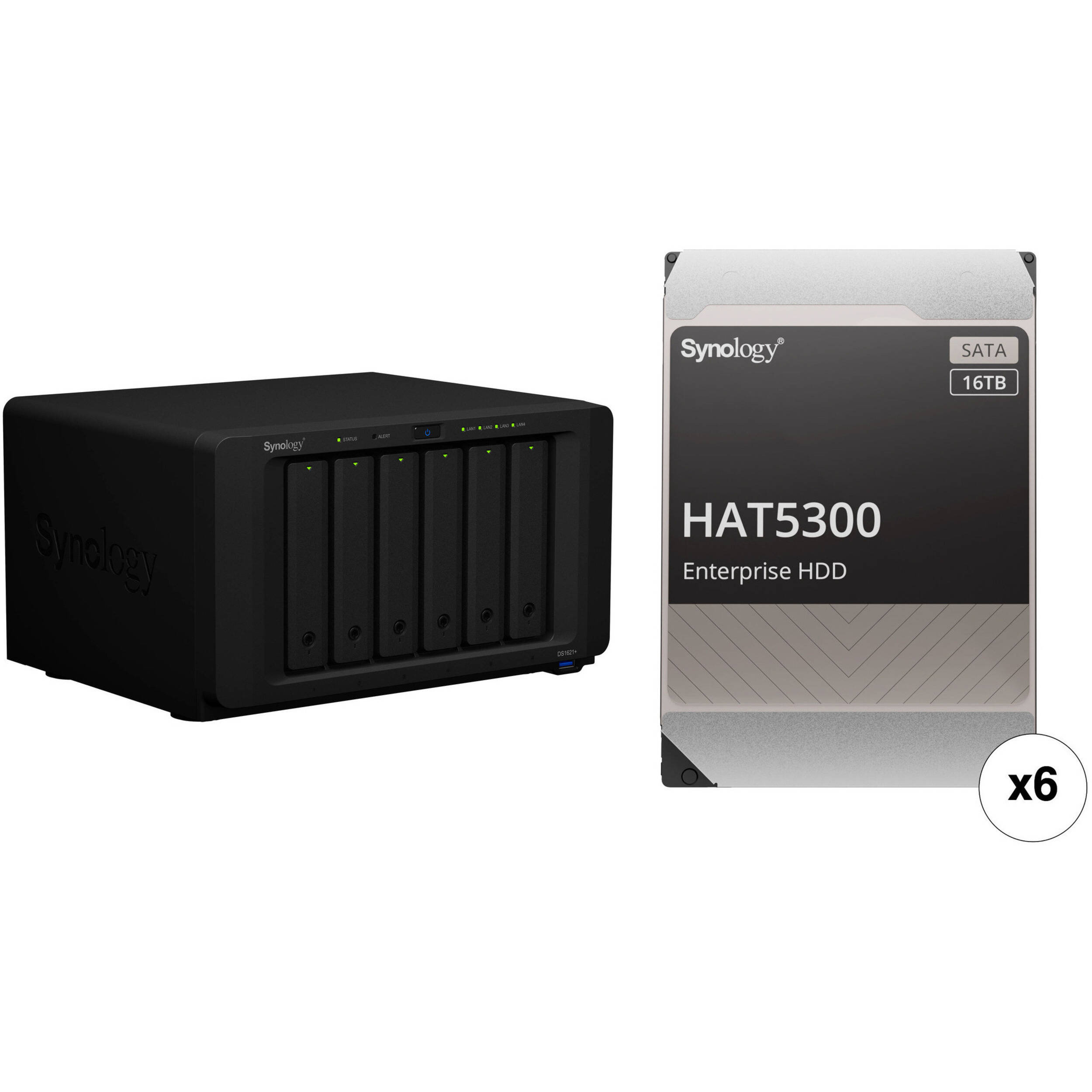

Synology 96TB DiskStation DS1621+ 6-Bay NAS Enclosure Kit with Synology HAT5300 Enterprise Drives (6 x 16TB) BH #SYN1621P96TK (B&H Kit)


ThisĀ B&H KitĀ combines theĀ Synology DiskStation DS1621+ 6-Bay NAS EnclosureĀ with six Synology 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDDs for a storage capacity of 96TB.

Synology DiskStation DS1621+ 6-Bay NAS Enclosure

Built with a quad-core processor, an AES-NI hardware encryption engine, and Btrfs file system support, theĀ DiskStation DS1621+ 6-Bay NAS EnclosureĀ fromĀ SynologyĀ is a high-performance system designed to store and protect critical assets, while also offering storage scalability so you can start small and expand as your data grows. Boost storage performance by installing dual M.2 2280 NVMe SSDs for high-IOPS system caching, or enhance network speeds by adding a 10GbE SFP+ or RJ45 NIC to the PCIe 3.0 x8/x4 slot. This NAS is equipped with six drive bays that are capable of natively supporting 3.5″ SATA hard drives, as well as 2.5″ SATA hard drives and SSDs, for data storage. Using its six drive bays, this NAS will allow you to store and share many files, including videos, music, photos, and documents with up to 2048 user accounts and 1000 maximum concurrent connections.

21,900.00 د.إ

Synology DiskStation DS1621+ External HDDĀ Overview

Synology DiskStation DS1621+ NAS: Hands-On Review

ThisĀ B&H KitĀ combines theĀ Synology DiskStation DS1621+ 6-Bay NAS EnclosureĀ with six Synology 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDDs for a storage capacity of 96TB.

Synology DiskStation DS1621+ 6-Bay NAS Enclosure

Built with a quad-core processor, an AES-NI hardware encryption engine, and Btrfs file system support, theĀ DiskStation DS1621+ 6-Bay NAS EnclosureĀ fromĀ SynologyĀ is a high-performance system designed to store and protect critical assets, while also offering storage scalability so you can start small and expand as your data grows. Boost storage performance by installing dual M.2 2280 NVMe SSDs for high-IOPS system caching, or enhance network speeds by adding a 10GbE SFP+ or RJ45 NIC to the PCIe 3.0 x8/x4 slot. This NAS is equipped with six drive bays that are capable of natively supporting 3.5″ SATA hard drives, as well as 2.5″ SATA hard drives and SSDs, for data storage. Using its six drive bays, this NAS will allow you to store and share many files, including videos, music, photos, and documents with up to 2048 user accounts and 1000 maximum concurrent connections.

The DS1621+ runs on the Synology DiskStation Manager (DSM) OS, which is a browser-based operating system that helps to simplify managing your Synology NAS. Its CPU is a 2.2 GHz AMD Ryzen V1500B Quad-Core and its 4GB of DDR4 ECC RAM, which be upgraded to 32GB, allows frequently used files and applications to be quickly accessed. The NAS is capable of sequential write speeds of up to 2300 MB/s, as well as 110,000 4K random read IOPS.

Also featured are three USB 3.2 Gen 1 Type-A ports, plus two eSATA ports for storage expansion, and network connectivity is achieved via the four Gigabit Ethernet ports, allowing your stored data to be shared with users throughout the network. For those who require RAID support, the DS1621+ supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

The DS1621+ is engineered to be energy efficient. Not only does it offer two 92 x 92mm fans to help keep the system running cool, it supports numerous scheduled power on/off cycles and hard drive hibernation to further reduce power consumption and operation expenses.

The Synology DiskStation DS1621+ 6-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a power cord, and two RJ45 LAN cables. If you need to expand its storage, the DS1621+ can be connected to two DX517 expansion units. Protection is provided by a limited 3-year hardware warranty.

General Features
Versatility and Raw Power in a Single Solution

The Synology DS1621+ can be a multipurpose powerhouse, suitable for a wide range of usage environments. The compact, desktop form factor makes it easy to store away at home or in a quiet office environment.

  • Up to 110,000 4K random read IOPS and 2300 MB/s sequential write speeds for demanding workloads.
  • Dual M.2 2280 slots for NVMe SSD lets you maximize performance and capacity efficiently.
  • Features 6 bays supporting both SATA HDD/SSD 2.5″ and 3.5″ drives, but can be expanded by using two Synology DX517 expansion units for a total capacity of 16 bays
  • Powered by Synology DSM, their unified data management operating system.
Robust Data Protection with Btrfs

The DS1621+ uses the Btrfs file system optimized by Synology to offer both high reliability and high performance. Btrfs supports advanced storage technologies that meet the needs of modern business.

  • Advanced snapshot technology provides schedulable and near-instantaneous data protection of shared folders and LUNs.
  • File and folder level data restoration offers users who wish to restore only a specific file or folder more flexibility.
  • Flexible Shared Folders and user quota system provides comprehensive quota control on all user accounts and shared folders.
  • File self-healing allows Btrfs file systems to auto-detect corrupted files using mirrored metadata and to recover broken data using RAID configurations.
  • Inline compression compresses data before writing it to the drive, to optimize storage use and reduce write commands to the drives.
On-Premises Collaboration

Synology Collaboration Suite allows businesses to host their own fundamental IT services for file sharing, concurrent document editing, emails, instant messaging, and more. Create a multi-user collaborative environment while leveraging private cloud infrastructure to reduce privacy concerns. Multilayered security enables secure access to files and services, even for a distributed or remote workforce across Windows, macOS, Linux, Android, and iOS platforms.

  • Synology Drive enables data access, synchronization, and backup via web portal and desktop applications across Windows, macOS, and Linux platforms. Intelliversioning saves historical versions while minimizing storage space usage and supports on-demand data restoration.
  • Synology Office includes Documents, Spreadsheets, and Slides. The online collaborative editing environment allows multiple users to edit, comment, and share data together.
  • Synology MailPlus enables you to set up a secure, reliable, and private email server, with an intuitive web-based client to boost productivity.
  • Synology Chat enables instant conversations and optimizes team communications with powerful features including message encryption, pinning, forwarding, reminders, and scheduling.
  • Synology Calendar helps teams keep track of what’s important, with easy to use sharing and scheduling functionality, keeping everyone on the same page.
Running & Protecting Virtual Machines

Synology Virtual Machine Manager (VMM) is a hosted hypervisor that lets users easily set up virtual machines running Windows or Linux based platforms and a virtualized version of Synology DSM, Virtual DSM, on the DS1621+. Using VMM, users can build up a cluster environment with multiple Synology systems for flexibility to perform online migration based on load balancing and resource allocation requirements. High-performance snapshots, replication, cloning, and recovery mechanisms enable comprehensive management and data protection on each VM.

DSM also simplifies the provisioning and management of storage for virtual machines. Certified for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack, Synology systems can integrate with your virtualization platform of choice through iSCSI or NFS protocols. Install Synology Storage Console for VMware/Windows for additional management convenience and functionality right in the hypervisor.

Comprehensive Data Protection Options

The DS1621+ includes a range of backup solutions to protect local, remote, and cloud-based deployment environments, all-inclusive with the device. Easily set up automated backups and even enable self-serve functionality for reduced maintenance and upkeep.

  • Back up data on Synology NAS: Snapshot Replication enables fast snapshots for point-in-time file versioning, which is great for rolling back unintended file modifications and protecting your data against ransomware attacks. Hyper Backup offers a wide range of destinations for backups of your NAS, including for both local and remote on-premises and cloud storage providers.
  • Back up business infrastructure: Synology Active Backup suite is a collection of powerful backup solutions built to protect Windows systems and servers, VMware and Hyper-V VMs, other file servers, and even Google G Suite and Microsoft 365 SaaS clouds.
Private Video Surveillance

With Synology Surveillance Station, the DS1621+ becomes a powerful VMS solution. With support for up to 40 IP cameras, you can cover large installations.

  • 7600 supported cameras, and counting: Find a compatible camera from updated compatibility lists to match your video requirements and budget. ONVIF support prevents vendor lock-in.
  • Private and subscription-free: Unlike cloud-based cameras, you can keep your recordings private and on-premises. Simple per-camera licensing with no subscriptions needed to access your data.
  • Flexible monitoring & control: Access your surveillance system from a web browser, dedicated desktop clients, or from the DS cam mobile app. Internet-optional.
  • Automation & notification: Set up rules to trigger specific actions when an event occurs, such as automatically taking a picture when motion detection is triggered. Get notified by email, SMS, or push notification so that you can act quickly.

UPC: 846504003778
Synology 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDD

Designed to tackle demanding, high-volume workloads in 24/7 environments, theĀ 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDDĀ fromĀ SynologyĀ has been optimized for their storage solutions and enables a high sequential throughput that helps maximize the number of clients a system can sustain. Engineered for improved dependability, the HAT5300 has a Mean Time to Failure (MTTF) rating of 2.5 million hours and a yearly workload rating of 550TB. Also featured is a storage capacity of 16TB, a SATA III 6 Gb/s interface, a 512MB cache, and a rotational speed of 7200 rpm, all of which help to ensure uninterrupted data transfers with sustained speeds of up to 262 MB/s.

Highlights
Enterprise Reliability and Durability
For demanding 24/7 environments, rated for 2.5 million hours MTTF, and up to 550TB per year workloads
Persistent Write Cache Technology
Minimizes the chance of data corruption in the event of sudden power loss
Better Together
Firmware and DiskStation Manager (DSM) optimizations improve multi-client sequential read performance by up to 23%
One-Stop Update
Get automatic firmware updates together through DSM updates, reducing the need for additional maintenance sessions
For Synology, by Synology
Stringent validation and up to 300,000 hours of tests helps ensure greater reliability in Synology systems
General Features
Scale Up Confidently
Synology HAT5300 drives are engineered to provide fast and dependable performance, even for a large number of clients. Firmware and software collaborate to deliver enhanced performance, with sequential read speeds that are 23% higher than drives with a similar capacity. The HAT5300 provides outstanding performance for large-scale video surveillance, multimedia post-production, and enterprise file server environments.
Endurance and Reliability
Designed with Synology’s expertise in storage systems, HAT5300 series drives are backed by a 2.5 million hour MTTF rating, workload support of 550TB per year, and persistent write cache technology. Over 300,000 hours of compatibility and stress testing ensure that the HAT5300 can continuously operate, even under extreme workloads with Synology’s NAS and IP SAN lineup. Combined with data protection solutions running on Synology systems, you can confidently depend on your data 24/7 using HAT5300 series drives.
Simplified Maintenance
DSM updates will ensure that compatible Synology drives will be updated together with the operating system. This reduces the number of maintenance sessions IT teams need to schedule while also increasing the entire system’s service availability. Simplify IT infrastructure planning requirements by getting support for the entire system from Synology.

Synology DiskStation DS1621+ 6-Bay NAS EnclosureĀ Specs

Computing
CPU Up toĀ 2.2 GHz Quad-Core
Processor AMD Ryzen V1500B
Total Installed Memory 4 GB ECC DDR4
User-Replaceable Memory 1 xĀ 4 GB
Total Memory Slots 2 xĀ SO-DIMM
Maximum Memory Capacity 32 GB
General
Number of Bays 6 xĀ 2.5″/3.5″
2 xĀ M.2 (2280)
I/O 4 xĀ RJ45 (Gigabit Ethernet)
3 xĀ USB-A (USB 3.0 / 3.1/3.2 Gen 1 (5 Gb/s))
2 xĀ eSATA
Compatible Drive Interface SATA III
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid
Hot-Swap Support Yes
PCI Expansion 1 xĀ PCIe 3.0 (x8 Electrical)
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CalDAV
FTP
L2TP
NFS
OpenVPN
PPTP
SMB
SNMP
SSH
Telnet
WebDAV
iSCSI
iSCSI LUN 256
iSCSI Target 128
Max Concurrent Connections 1000
Max Folders 512
Max Sync Tasks 16
Max Groups 256
Max User Accounts 2048
Max Volume Number 64
Max Cameras Supported 40
Software
Installed Operating System Synology DiskStation Manager
Supported File Systems Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility Windows 7 or Later
macOS 10.12 or Later
*As of October, 2020: Check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Internet Explorer, Safari
Supported Languages Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption AES-NI
Security Features Kensington Security Slot
VPN Server Connections 30
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source Internal Power Supply
Power Consumption 51.22 W (Typical)
25.27 W (Standby)
PSU Wattage 1 x 250 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -5 to 140°F / -20 to 60°C
Certifications RoHS
*as per Manufacturer
Physical
Status Monitoring LED Indicator
Audible Alarm No
Cooling 2 xĀ 92 mm Fans
Noise Level 25.2 dBA
Built-In Speakers None
IR Sensor None
Dimensions 11.1 x 9.6 x 6.5″ / 282 x 243 x 166Ā mm
Weight 11.2Ā lb / 5.1Ā kg
Packaging Info
Package Weight 15 lb
Box Dimensions (LxWxH) 15.5 x 12.9 x 12.3″

Synology 16TB HAT5300 SATA III 3.5″ Internal Enterprise HDDĀ Specs

Storage Capacity Total: 16 TB SATA III (6 Gb/s) 3.5″ HDD (7200 rpm)
Read Speed Maximum: 262 MB/s
Write Speed Maximum: 262 MB/s
Buffer 512 MB
Pre-Format None
HDD Specs
Disk Sector Format 512e
Reliability / Data Integrity
Encryption None
Endurance (Total Bytes Written) 550 TB
Mean Time Between Failures (MTBF) 2.5 Million Hours
Electrical
Power Draw 7.63 W (Active)
4.00 W (Idle)
Supported Voltage 5 VDC, 12 VDC
Environmental
Operating Temperature 41 to 140°F / 5 to 60°C
Storage Temperature 104 to 158°F / 40 to 70°C
Operating Shock 70 G / 2.0 ms
Storage Shock 250 G / 2.0 ms
Operating Vibration 0.75 G / 5 to 300 Hz
Storage Vibration 3.0 G / 5 to 500 Hz
Operating Humidity 5 to 90%
Storage Humidity 5 to 95%
Operating Altitude -1,000 to 10,000′ / -304.8 to 3048Ā m
Storage Altitude -1,000 to 40,000′ / -304.8 to 12,192Ā m
General
Certifications BSMI, CE, EAC, Kcc, RCM, RoHS, TUV, UL
*as per Manufacturer
Dimensions 5.8 x 4.01 x 1″ / 147 x 101.85 x 26.1Ā mm
Weight 25.4Ā oz / 720Ā g
Packaging Info
Package Weight 1.855 lb
Box Dimensions (LxWxH) 8.8 x 6.1 x 3″
