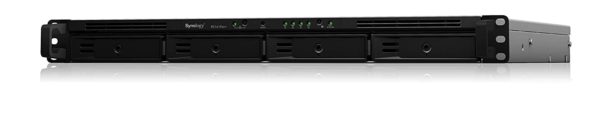

Synology RackStation RS1619XS+ NAS Server


11,099.00 د.إ

Synology RackStation RS1619XS+ 4-bay 1U SATA Quad Core NAS Server – Diskless – Brand New

Synology RackStation RS1619XS+ 4-bay 1U SATA / Serial ATA Quad Core NAS / Network Attached Storage Server – Diskless – Brand New

Synology RackStation RS1619xs+ Network Attached Storage Server includes…

  • 1x Expansion Port
  • 2x USB 3.0 port
  • 4x Ethernet RJ45 1Gb LAN ports
  • Intel Xeon D-1527 Quad Core 2.2 (base) / 2.7 (turbo) GHz
  • 8GB DDR4 ECC UDIMM Ram, expandable up to 64GB (16 GB x 4)
  • 4 drive bays, expandable to 16 when paired with an expansion unit
  • accepts 3.5″ and 2.5″ SATA hard drives, 2.5″ SATA Solid State Drives and M.2 2280 NVMe and SATA Solid State Drives.
  • Hardware Encryption Capable

RackStation RS1619xs+Ā 1U rackmount flagship aims for file collaboration and high-performance computation

Fast storage with outstanding computing power
RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.

  • CPU
    Quad-core up to 2.7GHz
  • RAM options
    8GB DDR4 UDIMM, up to 64GB
  • High Performance
    1,523 MB/s sequential reading, 162,097 iSCSI random read IOPS
  • Scalability
    Up to 16 drives with one RX1217/RX1217RP

Variable options to boost system computing performance
Equipped with a PCIe 3.0 slot, RS1619xs+ supports installing a 10GbE/25GbE NIC for fast data transmission. Built-in M.2 2280 SSD cache slots further benefit IO-intensive tasks, such as virtualization or mail server deployment.

  • M.2 SSD support
    Dual M.2 2280 slots supporting NVMe/SATA SSDs
  • 10GbE/25GbE support
    optional high-speed network capacity for bandwidth-intensive environments

5 year warranty
Synology’s 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises’ return on investment.

Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity

Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions including VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder, to enhance work efficiency. Create and manage virtual machines running multiple operating systems such as Windows, Linux, and DSM using Virtual Machine Manager.

Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

  • Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
  • Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
  • File or folder level data restoration makes data recovery fast and flexible
  • Automatic file self-healing detects and recovers corrupted files without user intervention

Ultimate Backup Solution
RS1619xs+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

  • Active Backup for Business
    Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
  • Hyper Backup
    Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
  • Desktop Backup
    Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
  • Active Backup for Office 365 / G Suite
    On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.

  • Security Advisor
    Analyzes system settings, password strength, network preferences, and removes any possible malware.
  • AppArmor
    A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
  • AES 256-bit encryption
    Encrypt shared folders and network data transmission to keep data from unauthorized access.
  • 2-step verification
    Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device.
  • Trust Level
    Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.

Powered by Synology DSM

  • DSM UI
    Award-winning operating system with an intuitive user interface and powerful capabilities.
  • Public Cloud Integration
    Backup and synchronize data easily between your public cloud accounts and your NAS.
  • High Availability
    Ensures seamless service transition between clustered servers in the event of a server failure.
  • Snapshot Replication
    Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
  • VMM
    Run various operating systems in isolated sandboxes. Seamlessly clone, restore and migrate virtual machines.
  • Security
    Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices
SKU: RS1619XS-PLUS Category: Tags: ,
Model Number RS1619xs+/RS1619xs-PLUS
Hardware Specifications
CPU CPU Model

  • Intel Xeon D-1527

CPU Architecture

  • 64-bit

CPU Frequency

  • Quad Core 2.2 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

  • Yes
Memory System Memory

  • 8 GB DDR4 ECC UDIMM

Memory Module Pre-installed

  • 8 GB (8 GB x 1)

Total Memory Slots

  • 4

Memory Expandable up to

  • 64 GB (16 GB x 4)
Storage Drive Bays

  • 4

Maximum Drive Bays with Expansion Unit

  • 16

M.2 Drive Slots

  • 2 (NVMe & SATA)

Compatible Drive Type

  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
  • M.2 2280 NVMe & SATA SSD

Maximum Internal Raw Capacity

  • 56 TB (14 TB drive x 4) (Capacity may vary by RAID types)

Maximum Raw Capacity with Expansion Units

  • 224 TB (56 TB + 14 TB drive x 12) (Capacity may vary by RAID types)

Maximum Single Volume Size

  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB

Hot Swappable Drive

  • Yes
External Ports RJ-45 1GbE LAN Port

  • 4 (with Link Aggregation / Failover support)

USB 3.0 Port

  • 2

Expansion Port

  • 1
PCIe PCIe Expansion

  • 1 x Gen3 x8 slot (x8 link)

Add-in-card support

  • PCIe Network Interface Card
File System Internal Drives

  • Btrfs
  • EXT4

External Drives

  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance Size (Height x Width x Depth)

  • 44 mm x 480 mm x 518.6 mm

Weight

  • 8.16 kg

Rack Installation Support

  • 4-post 19″ rack (Synology Rail Kit – RKM114/RKS1317)
Others System Fan

  • 40 mm x 40 mm x 2 pcs

Fan Speed Mode

  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode

Easy Replacement System Fan

  • Yes

Power Recovery

  • Yes

Noise Level

  • 39.3 dB(A)

Scheduled Power On/Off

  • Yes

Wake on LAN/WAN

  • Yes

Power Supply Unit / Adapter

  • 2 X 150W

AC Input Power Voltage

  • 100V to 240V AC

Power Frequency

  • 50/60 Hz, Single Phase

Power Consumption

  • 68.68 W (Access)
  • 34.78 W (HDD Hibernation)

British Thermal Unit

  • 234.35 BTU/hr (Access)
  • 118.67 BTU/hr (HDD Hibernation)

Redundant Power Supply (for xs+ and RP model)

  • Yes
Environment Temperature Operating Temperature

  • 5°C to 35°C
  • 40°F to 95°F

Storage Temperature

  • -20°C to 60°C
  • -5°F to 140°F

Relative Humidity

  • 5% to 95% RH

Certification

  • FCC
  • CE
  • BSMI
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
