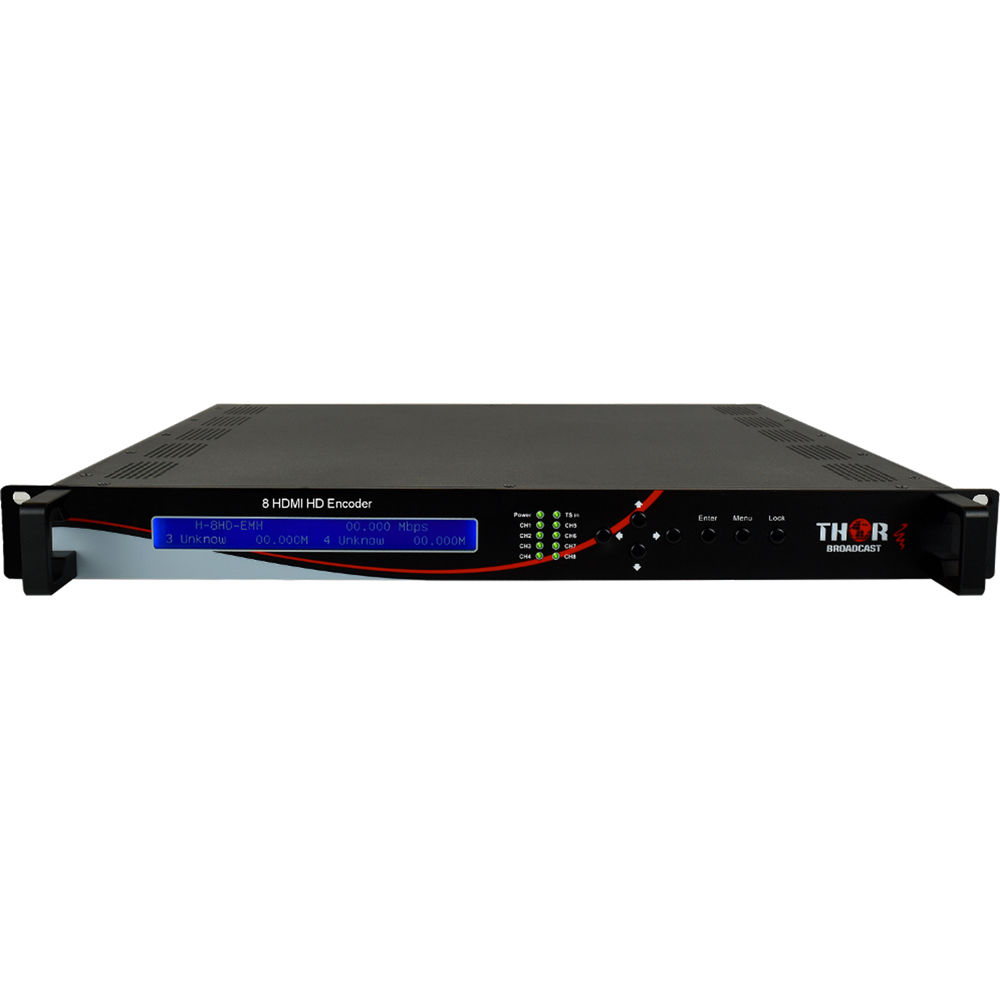

Thor 8-Channel HDMI Broadcast Encoder with IPTV Streamer
- Real-time H.264 hardware encoder with eight HDMI inputs
- Suitable for CATV head-end program aggregation or high-end CCTV systems
- Encoding based on high-level H.264 codec
- Independent control for encoding parameters on each channel
- Provides all programs as MPTS outputs on both ASI and IP
- Provides single program IP streams as eight SPTS’s IP output over UPD/RT/RTSP
- Includes ASI input for multiplexing an additional ASI program
29,999.00 د.إ
The 8-Channel HDMI Broadcast Encoder with IPTV Streamer from Thor converts eight channels of HDMI content input to ASI and IP outputs. Each of the eight encoders can be independently configured for bit rate and PID management. The encoder supports bit rates up to 19 Mb/s per channel. With high-level H.264 codec-based encoding, it is suitable for reducing the rack space required for HD program encoding for content source origination and distribution.
All the encoded programs are multiplexed to multi-program transport stream (MPTS) outputs on both ASI and IP. Additionally, single-program transport stream (SPTS) outputs are provided for all inputs on the IP network output. All settings are available via the front panel as well as a web-based network management system. This encoder also provides a 1-channel ASI input that can multiplex one additional program to the outputs from an ASI source.
Thor 8HD-EMH Specs
| Input | 8 x HDMI 1 x ASI |
| Supported Output Resolutions | 1080p 60/59.94/50 1080i 60/59.94/50 720p 60/59.94/50 720i 60/59.94/50 |
| Video Codecs | MPEG-4 AVC/H.264 |
| Audio Codecs | MPEG-1 Layer 2 HD-AAC V2 (optional) LC-AAC (optional) |
| Bit Rate | 0.8 to 19.0 Mb/s CBR or VBR |
| Video Features | Input deinterlacing, noise reduction, and sharpening |
| Audio Sampling Rate | 48 kHz, 24-bit resolution |
| Audio Bit Rate | 64 to 384 kb/s (each channel) |
| IP Streaming | IP Transport Stream Output: 1 x MPTS and 8 x SPTS over UDP, RTP/RTSP (RJ45, 100M) |
| ASI | ASI Transport Stream Output: 2 x ASI multiplexed |
| Interface | Web-based browser interface Full front panel LCD interface |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Dimensions | 18.9 x 17.9 x 1.8″ / 48 x 45.5 x 4.5 cm |
| Weight | 7.2 lb / 3.3 kg |
