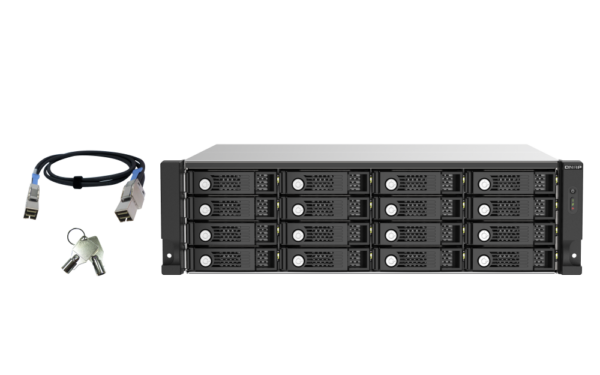

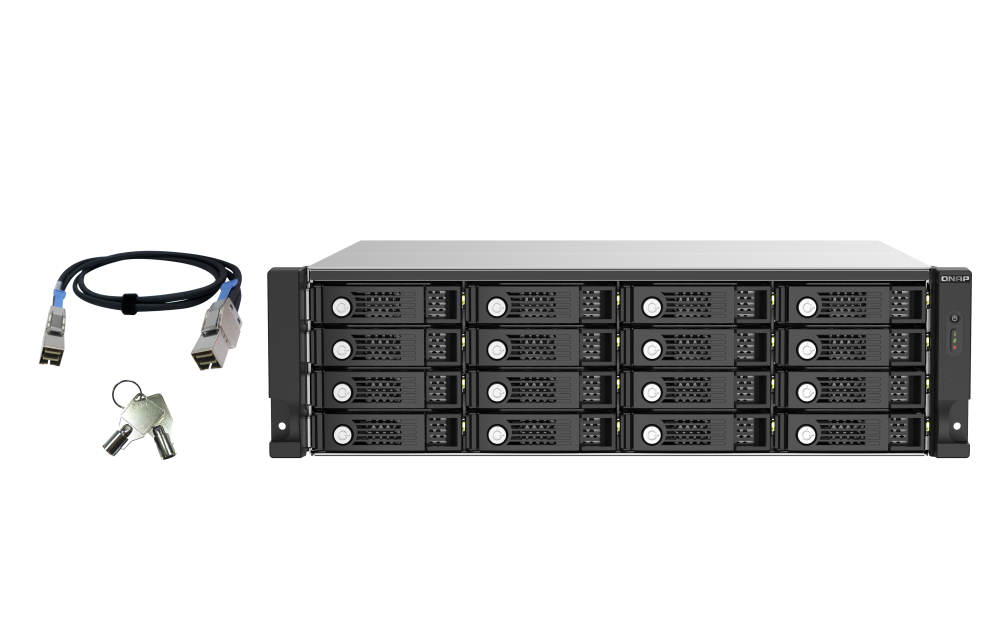

Name: TL-R1620Sep-RP-US
SKU: TL-R1620Sep-RP-US
Price: 12499.00 AED
Availability: InStock

Supported NAS System	DataBolt Bandwidth Optimization	Multipath Routing
Expand the storage space of a QTS/QuTS hero NAS, supports up to 4.6PB raw capacity by daisy-chaining up to 16 expansion enclosures.	Combine two 6Gb/s connections into one 12 Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure.	Ensure smooth data transmission and continuous operation by using the TL-R1620Sep-RP with a NAS that supports multipath routing.
Storage Management	Remote Files Transfer	Easy Installation & Storage
Manage the storage space and settings of the TL-R1620Sep-RP with Storage & Snapshot Manager on the host NAS.	Conserve network bandwidth and performance by using the TL-R1620Sep-RP to transfer huge files from one device to another.	With a short-depth design, the TL-R1620Sep-RP is suitable for universal deployment.

Achieve up to 96Gb/s with link aggregation

The TL-R1620Sep-RP is powered by a low-power 28nm SAS35x36R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Also, it has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. By connecting the TL-R1620Sep-RP to the host NAS and daisy-chaining multiple JBODs with two wide ports configured with link aggregation, the solution delivers up to 96Gb/s transfer speed.

Ultimate performance for enterprise applications

TL SAS JBOD

96 Gb/s

Thunderbolt 3/4 DAS

40 Gb/s

USB DAS

10 Gb/s

Virtualization Certifications Supported by TL-R1620Sep-RP

Check QNAP NAS with Support for Virtualization application

Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure

Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sep-RP at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.

Note: The QNAP host NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with SAS ports or with a QXP PCIe a PCIe SAS storage expansion card installed. Check PCIe SAS card compatibility

Short-depth design
Can be installed in standard server racks or small AV cabinets

(3U, H 131.3 x W 482.2 x D 425.3 mm)

Connect up to 16 JBODs, support up to 4.6PB raw capacity

The TL-R1620Sep-RP has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. Up to sixteen TL-R1620Sep-RP can be daisy-chained to achieve a raw capacity of up to 4.6PB.

Note:
1. Use the CAB-SAS10M-8644-8088 12Gb/s to 6Gb/s external cable to connect to SAS NAS / REXP expansion enclosures and 6 Gb/s SAS HBA.
2. The host NAS requires one QXP-1620S-B3616W SAS card to daisy chain sixteen JBODs with single path routing. Using multipath routing with link aggregation enabled, the host NAS with one QXP-1620S-B3616W SAS card can daisy chain four JBODs; the host NAS with two QXP-1620S-B3616W SAS cards can daisy chain eight JBODs.

Multipath routing to ensure continuous system operations

By daisy chaining the TL-R1620Sep-RP, data transmission loads can be balanced with multipath routing to achieve high availability. If one route fails, another transmission route can be used to access the data and ensure continuous system operations. The TL-R1620Sep-RP also features a redundant power supply to ensure system uptime.

Note: Multipath routing requires a host NAS with QTS 4.5.1 / QuTS hero h4.5.1 (or later).

Flexible daisy chaining modes

By daisy-chaining your NAS to multiple TL SAS JBODs and REXP SAS JBODs, you can take advantage of multipath routing and link aggregation to benefit from higher transfer speeds and system availability.

Learn More: REXP SAS JBOD

High Storage Capacity

Ultra-high Performance (up to 192Gb/s)

Performance and Security

Storage Management

By using Storage & Snapshot Manager on the host NAS, you can configure and manage the TL-R1620Sep-RP’s storage space by setting RAID groups, storage pools and snapshots, or configuring the JBOD as the storage volume of host NAS, allowing you to easily expand NAS storage to accommodate massive data or backup files. You can also configure and manage the TL-R1620Sep-RP via the Console Port.

Note: To achieve better performance, it is recommended to create storage volumes physically located within the same NAS or expansion enclosure, rather than creating storage volumes across the NAS or expansion enclosure.

Speed up remote file transfers with JBOD migration

Moving many small files or a single large data file over a network can be time-consuming and negatively impact network performance. By setting up the RAID configuration on the TL-R1620Sep-RP, you can use it to move files to another computer or NAS. Simply save the files to the TL-R1620Sep-RP, connect it to the destination device, and then copy the files over.

Note: When using software RAID configuration, the TL-R1620Sep-RP migration only supports hosts that use the same operating system.

Applicable PCIe SAS storage expansion card

Model	QXP-1620S-B3616W	QXP-820S-B3408	SAS-12G2E (EOL)
SAS controller	Broadcom SAS3616W Tri-mode	Broadcom SAS3408 Tri-mode	Broadcom SAS3008
Ports	4 Wide Ports (each port contains 4 12Gb/s SAS signals)	2 Wide Ports (each port contains 4 12Gb/s SAS signals)	2 Wide Ports (each port contains 4 12Gb/s SAS signals)
Interface	PCIe Gen 3 x16	PCIe Gen 3 x8	PCIe Gen 3 x8

Learn more: SAS expansion cards, Check Compatibility List

Get the best SAS cables for your work environment

	CAB-SAS05M-8644	CAB-SAS10M-8644	CAB-SAS20M-8644	CAB-SAS30M-8644
Length	0.5m (Included in the package)	1m	2m	3m
