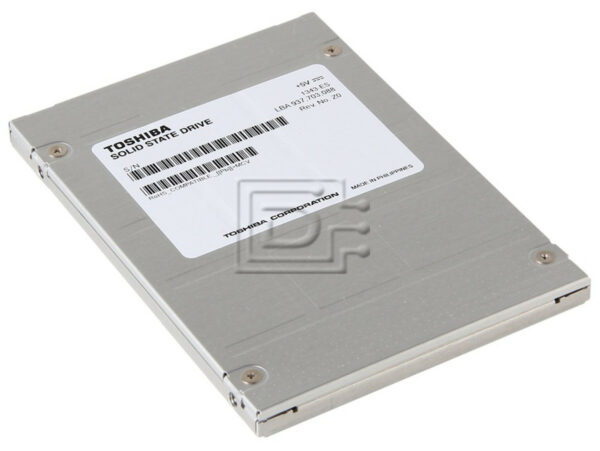

Toshiba PX03SNU040 400GB SAS ESSD
ENTERPRISE GRADE
Capacity: 400GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 910/380
Electrical Interface: SAS-3 Serial Attached SCSI v3 – 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive
Voltage: 12V
د.إ3,599.00
Toshiba PX03SNU040 400GB 2.5in 12Gbps Read Intensive 1-DWPD MLC SAS eSSD – Band New
Toshiba PX03SNU040 400GB 2.5″ 12.0 Gb/s Read Intensive 1 Drive Writes Per Day Multi-Level Cell Serial Attached SCSI Enterprise Solid State Disk Drive – Band New
Enterprise Read Intensive SSD
The PX03SN series is optimized for read-intensive, and low-write-duty applications in server and storage systems and features a 12 Gbit/s SAS interface. The eSSDs are available with capacities of 200, 400, 800 GB as well as 1.6 TB, built with MLC NAND flas memory and support 1 DWPD (Drive Write Per Day) with a random data, 4KiB workload. The drives deliver random write speeds up to 26,000 IOPS and random read speeds up to 130,000 IOPS. The PX03SN series offers high performance enterprise-class solid-state storage suitable for cost sensitive and read-intensive applications characterized with infrequent write operations or predominantly large block & sequential data pattern workloads.
Optional features: PX03SNQ/U series supports self-encryption which may help IT professionals protect data from unintended data disclosure when drives or storage systems are re-purposed, retired from service, or otherwise moved outside the physical security of the data center environment.
Toshiba’s TCG SED option (PX03SNQ/U) is designed to the Trusted Computing Group (TCG) industry-standard “Enterprise” Security Sub-Classification (SSC), and provides for both access security and full-disk encryption with SIE (Sanitize Instant Erase) capability.
Key Features
- Up to 1.6 TB Storage Capacity
- MLC NAND Flash Memory
- Dual-Port 12 Gbit/s SAS Interface
- Power Loss Protection
- Quadruple Swing by Code Technology (QSBC)
- Self Encrypting and SIE (Sanitize Instant Erase) Function
Application
- High-Performance Enterprise Storage
- Cloud Computing
- Data Warehousing
- Media Streaming & VOD (Video on Demand)
- File Servers
- Web-based Applications
Compatibility:
This drive is compatible with laptops that accept 2.5″ x 7mm (Thin/Case) SAS drives.
| Enterprise Read Intensive SSD | |
|---|---|
| Model Number | PX03SNU040 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s, 6.0 Gbit/s, 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 400GB |
| Sustained 64Kib Sequential Write (12.0 Gbit/ Dual Port) | 910 MiB/s |
| Sustained Sequential Write (12.0 Gbit/s Dual Port) | 380 MiB/s |
| Sustained 4KiB Random Read (12.0 Gbit/s Dual Port) | 130,000 IOPS |
| Sustained 4KiB Random Write (12.0 Gbit/s Dual Port) | 26,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 1 |
| Power Requirements | |
| Supply Voltage | 5 V ±5 % 12 V ±5 % |
| Power Consumption (Ready) | 2.7 W Typ |
| Dimensions | |
| Height | 7.0 mm +0, -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 70 g Max |
| Environmental Specifications | |
| Temperature (Operating) | 0 to 55°C |
| Relative Humidity(Operating) | 5% to 95%RH |
| Vibraton (Operating) | 21.27 m/s{2.17 Grms}(5 to 800 Hz) |
| Shock (Operating) | 9,800 m/s{1,000G}(0.5 ms durarion) |
CLICK HERE TO VIEW THE MANUFACTURER’S ITEM DESCRIPTION/BROCHURE
ROHS Compliant
Weight: 0.5 lb
Warranty: 5 Year Manufacturer
