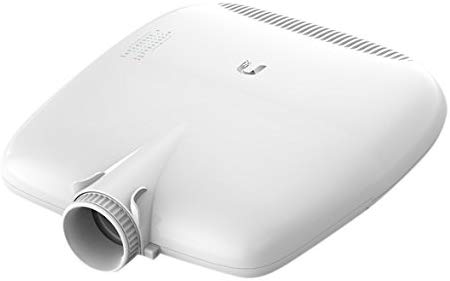

Ubiquiti EdgePoint S16 Switch 16-port Intelligent WISP Control 40W Outdoor Switch 16 ports EP-S16


Key Features
  • 16 x 10/100/1000 RJ45 Ports
  • 2 x 1/10 Gbps SFP+ Ports
  • 54V or 24V /1.4A Passive PoE
  • ARM Cortex-A9 400 MHz Processor
  • 256MB of DDR3 RAM
  • Die-cast Aluminum Alloy and Polycarbonate
  • Fiber Backhaul Capability
  • Speed, Link, Activity, and PoE LEDs
  • Wall and Pole Mountable

AED2,099.00

TheĀ EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP SwitchĀ fromĀ UbiquitiĀ is designed to simplify your hardware by replacing the network cabinet, which usually contains a patch panel, power rack, multiple PoE adapters, switch, router, modem, and more. It is encased in a die-cast aluminum alloy and polycarbonate shell with UV resistance, and features a combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. With the EP-S16, you’ll have access to a total of sixteen ports: two input or output ports with 54V or 24V / 1.4A passive PoE, two output ports with 54V or 24V / 1.4A passive PoE, and twelve PoE+ or 24V / 0.7A passive PoE output ports. Furthermore, use the EdgePoint software, accessible via a network port and a web browser, to monitor and manage your network.

FiberProtect
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and to consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
WISP Control
Designed as a WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities.
All-in-One Design
A single compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
Advanced Routing Applications
Powerful routing features such as link balancing provide redundancy and increased performance for outdoor wireless links.
Versatile Power Options
Powered by 54VDC or by PoE, the EP-S16 can support 54 or 24V passive PoE to power all Ubiquiti products, including airFiber and airMAX.
Intuitive User Interface
The EdgePoint features a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, andĀ status.
Routing Configuration
The EP-R6 offers robust features, including:

  • VLAN interfaces for network segmentation
  • Static routes and support of routing protocols: OSPF, RIP, and BGP
  • Firewall policies and NAT rules
  • Application identification with Deep Packet Inspection (DPI)
  • DHCP services
  • Quality of Service (QoS)
  • Network administration and monitoring tools
  • Administrator and operator accounts
  • Comprehensive IPv6 support
Command-Line Interface (CLI) Configuration
The CLI provides quick and flexible configuration by command line and features the following:

  • For power users, configuration and monitoring of all advanced features
  • Direct access to standard Linux tools and shell commands
  • CLI access through the following
  • SSH
  • Telnet
  • Graphical user interface

Specifications

General
Device Type Switch – 16 ports
Enclosure Type Wall-mountable
Subtype 10 Gigabit Ethernet
Ports 16 x 10/100/1000 (PoE) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE
Routing Protocol IGMP
Authentication Method RADIUS, TACACS+
Features Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Processor Cortex-A9: 400 MHz
RAM 256 MB
Flash Memory 32 MB
Status Indicators Power, link/activity
Expansion / Connectivity
Interfaces 16 x 1000Base-T RJ-45Ā 2 x 10GBase-X SFP+Ā 1 x serial RJ-45
Power
Voltage Required DC 54 V
Power Consumption Operational 40 Watt
Miscellaneous
Compliant Standards FCC
Dimensions & Weight
Width 12.9 in
Depth 15.1 in
Height 3.5 in
Weight 7.5 lbs
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 149 °F
Humidity Range Operating 10 – 90% (non-condensing)
General
Authentication Method RADIUS, TACACS+
Device Type Switch – 16 ports
Enclosure Type Wall-mountable
Features Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Flash Memory 32 MB
Ports 16 x 10/100/1000 (PoE) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE
Processor Cortex-A9: 400 MHz
RAM 256 MB
Routing Protocol IGMP
Status Indicators Power, link/activity
Subtype 10 Gigabit Ethernet
Dimensions & Weight
Depth 15.1 in
Height 3.5 in
Weight 7.5 lbs
Width 12.9 in
Environmental Parameters
Humidity Range Operating 10 – 90% (non-condensing)
Max Operating Temperature 149 °F
Min Operating Temperature -40 °F
Expansion / Connectivity
Interfaces 16 x 1000Base-T RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 1 x serial RJ-45
Miscellaneous
Compliant Standards FCC
Power
Power Consumption Operational 40 Watt
Voltage Required DC 54 V
