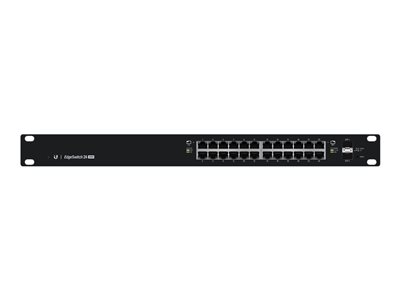

Ubiquiti EdgeSwitch 24 – switch – 24 ports – managed – rack-mountable ES-24-250W

Availability:

10 in stock
Add to Wishlist

AED1,699.00

10 in stock

Add to Wishlist

Ubiquiti Networks EdgeSwitch 24 250W (ES-24-250W) Managed PoE+ Gigabit Switch with SFP



Overview

EdgeSwitch delivers robust performance, PoE+ support and intelligent switching for growing networks.

Powerful enterprise switch models

The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Enterprise-class features

The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Optical fiber backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ support

The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Breakthrough value

The EdgeSwitch provides top price/performance value: a full-featured, enterprise-class switch.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

SKU: ES-24-250W Category: Tags: , , ,

Specifications

General
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
Performance Non-blocking switching capacity: 26 Gbps Switching capacity: 52 Gbps Forwarding performance: 38.69 Mpps
Capacity VLANs supported: 255 ACL rules: 100 LAG groups: 6
MAC Address Table Size 8K entries
Jumbo Frame Support Yes
Routing Protocol Static IP routing, policy-based routing (PBR)
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH-2, CLI
Features Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3at
Status Indicators Port transmission speed, PoE, link/activity
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ – 34.2 W 2 x 1000Base-X SFP
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
Power Consumption Operational 250 Watt
Miscellaneous
Compliant Standards IC, FCC, ETSI 300 019
Dimensions & Weight
Width 19.1 in
Depth 11.2 in
Height 1.7 in
Weight 8.16 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
General
Capacity VLANs supported: 255 ¦ ACL rules: 100 ¦ LAG groups: 6
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3at
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Features Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Jumbo Frame Support Yes
MAC Address Table Size 8K entries
Performance Non-blocking switching capacity: 26 Gbps ¦ Switching capacity: 52 Gbps ¦ Forwarding performance: 38.69 Mpps
Ports 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH-2, CLI
Routing Protocol Static IP routing, policy-based routing (PBR)
Status Indicators Port transmission speed, PoE, link/activity
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 11.2 in
Height 1.7 in
Weight 8.16 lbs
Width 19.1 in
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Max Operating Temperature 104 °F
Min Operating Temperature 23 °F
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ – 34.2 W ¦ 2 x 1000Base-X SFP
Miscellaneous
Compliant Standards IC, FCC, ETSI 300 019
Power
Power Consumption Operational 250 Watt
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
