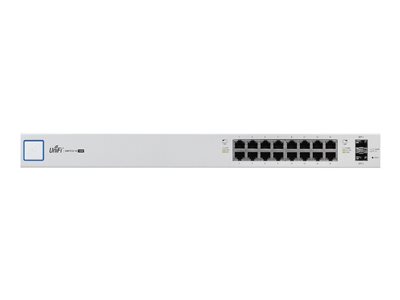

Ubiquiti UniFi Switch US-16-150W – switch – 16 ports – managed – rack-mountable US-16-150W

Availability:

10 in stock


AED1,499.00

10 in stock

Ubiquiti Networks UniFi Managed PoE+ 16-Port Gigabit Switch with SFP (150W)

With 16 auto-sensing Gigabit Ethernet ports, theĀ UniFi Managed PoE+ Gigabit 16 Port Switch with SFPĀ fromĀ Ubiquiti NetworksĀ is capable of providing a stable, reliable network connection to a large number of Ethernet enabled devices. Add in 802.3af/at PoE compatibility and 150W of available power, and this managed PoE+ switch is capable of powering a variety of PoE compatible network components such as access points, VoIP phones, and much more. Along with Gigabit Ethernet connectivity users can connect high speed storage devices to either of the two SFP ports. Once configured, Ubiquiti’s own UniFi controller software makes network configuration and management simple as you can manage PoE settings, operation modes, VLAN configuration, storm control settings per port, and much more.



Auto-sensing IEEE 802.3af/at PoE

16 x Gigabit RJ-45 ports, 2 x SFP ports
1 Serial console port (reserved for future use)
Non-blocking throughput of up to 18 Gbps
Switching capacity: 36 Gbps
Forwarding rate of up to 26.78 Mpp
Maximum power consumption of 150W
Supports POE+ IEEE 802.3af/at and 24V Passive PoE
Rack mountable
Designed for convenient management, the UniFi Controller software (not included) allows administrators to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface.
SKU: US-16-150W Category: Tags: , ,

Specifications

General
Device Type Switch – 16 ports – managed
Enclosure Type Rack-mountable, wall-mountable 1U
Subtype Gigabit Ethernet
Ports 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
Performance Non-blocking switching capacity: 18 GbpsĀ Switching capacity: 36 GbpsĀ Forwarding performance: 26.78 Mpps
Remote Management Protocol HTTP
Compliant Standards IEEE 802.3af, IEEE 802.3at
Status Indicators Port transmission speed, PoE, link/activity
Expansion / Connectivity
Interfaces 16 x 1000Base-T RJ-45 PoE+ – 34.2 WĀ 2 x 1000Base-X SFPĀ 1 x console RJ-45
Power
Power Device Internal power supply
Power Provided 150 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards IC, FCC, RoHS, WEEE, ETSI 300 019
Dimensions & Weight
Width 17.4 in
Depth 8.7 in
Height 1.7 in
Weight 6.17 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
General
Compliant Standards IEEE 802.3af, IEEE 802.3at
Device Type Switch – 16 ports – managed
Enclosure Type Rack-mountable, wall-mountable 1U
Performance Non-blocking switching capacity: 18 Gbps ¦ Switching capacity: 36 Gbps ¦ Forwarding performance: 26.78 Mpps
Ports 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
Remote Management Protocol HTTP
Status Indicators Port transmission speed, PoE, link/activity
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 8.7 in
Height 1.7 in
Weight 6.17 lbs
Width 17.4 in
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Max Operating Temperature 104 °F
Min Operating Temperature 23 °F
Expansion / Connectivity
Interfaces 16 x 1000Base-T RJ-45 PoE+ – 34.2 W ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45
Miscellaneous
Compliant Standards IC, FCC, RoHS, WEEE, ETSI 300 019
Power
Power Device Internal power supply
Power Provided 150 Watt
Voltage Required AC 120/230 V (50/60 Hz)
