VocoPro Digital-Quad-B4 Four-Channel UHF Wireless Headset & Lavalier Microphone System (915 to 927.2 MHz)


1,699.00 د.إ

Key Features
  • 24-Bit Digital UHF Technology
  • 4-Channel Receiver with Dual Antennas
  • 4 x Wireless Bodypack Transmitters
  • 4 x Headset Mics, 4 x Lavalier Mics
  • Individual Mic IDs Eliminate Crosstalk
  • Adjustable Transmitter Gain
  • Per-Channel Volume on Receiver
  • AF, RF & Battery Status LED Indicators
  • Balanced XLR Outputs
  • Includes Rack Ears & 1/4″ Cable

VocoPro DIGITAL-QUAD-BĀ Overview

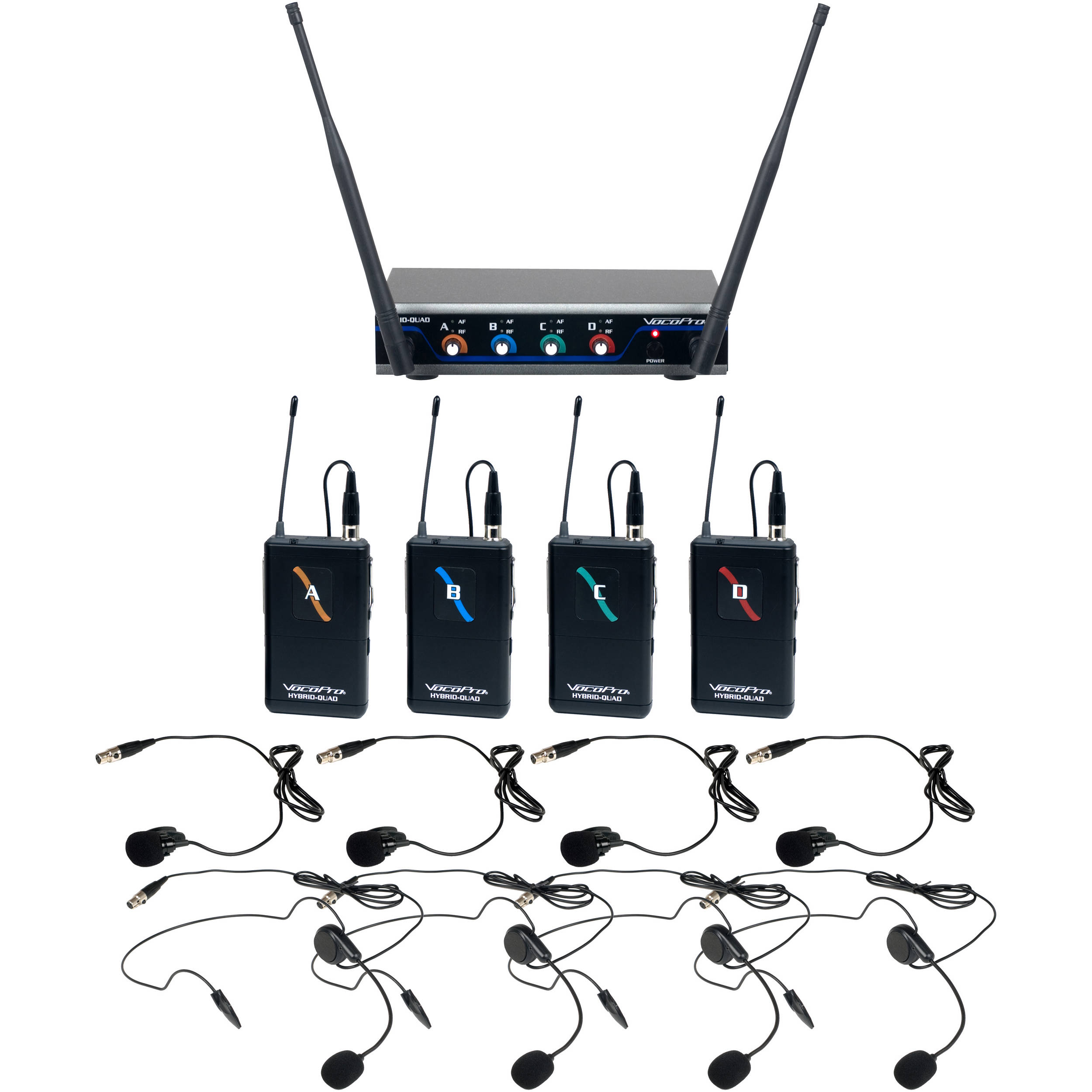

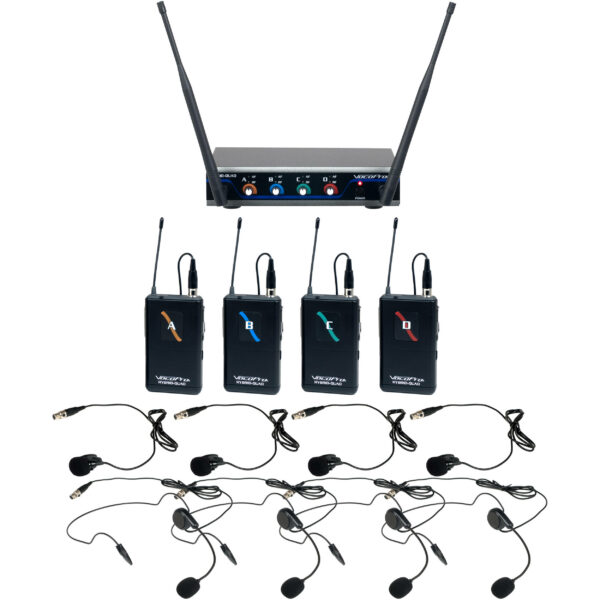

Operating in the 915 to 927.2 MHz frequency band, theĀ VocoPro Digital-Quad-B4Ā is a four-channel UHF wireless headset and lavalier microphone system offering versatility and easy setup for up to four subjects, making it ideal for singers, actors and actresses, panel speakers, and interviewers/interviewees. It includes a Hybrid-Quad receiver, four wireless bodypack transmitters, four headset microphones, and four lavalier mics, as well as a rackmount kit, the required power adapter, and a 1/4″ cable.

Incorporating 24-bit digital UHF technology and dual removable antennas, the receiver is designed to deliver clear and consistent signal. It features four channels, each with adjustable volume, AF and RF indicators, and a balanced XLR output. Connect the omnidirectional condenser headset or lavalier microphones to the bodypack transmitters, which utilize individual mic IDs to eliminate crosstalk. Each transmitter is powered via two AA batteries (available separately), and provides battery indication and adjustable gain.

Four headset microphones and four lavalier microphones allow versatile use for singers, guests, panelists, and more
Four wireless bodypack transmitters with on/off switches, battery status indicators, mini-XLR inputs, and adjustable gain
4-channel Hybrid-Quad receiver with balanced XLR outputs, an unbalanced 1/4″ mix output, per-channel mic volume, and AF/RF LED indicators
Wireless range up to 200′
24-bit technology for clean, quality signal
Individual digital microphone IDs eliminate crosstalk between channels
Includes rack ears for easy mounting in a standard 19″ equipment rack
Supplied mounting plate allows easy side-by-side placement of two Hybrid-Quad receivers in a rack
Includes power adapter, antennas, and 1/4″ cable

VocoPro DIGITAL-QUAD-BĀ Specs

Receiver
Wireless Range Up to 200′ / 61 m
Outputs 4 x XLR 3-Pin Male (Balanced)
1 x 1/4″ TS (Unbalanced)
Antenna Inputs 2 x BNC
Power Requirement 13.5 VDC Power Supply
Dimensions (W x H x D) 8.4 x 1.3 x 5.3″ / 21.3 x 3.2 x 13.3 cm
Transmitter
Transmission Frequency 9M: 915 MHz
9N: 918.7 MHz
9O: 922.8 MHz
9P: 927.2 MHz
Wireless Range Up to 200′ / 61 m
Inputs 1 x Mini-XLR 3-Pin Male
Power Requirement 2 x AA Batteries
Microphones
Type Condenser
Polar Pattern Omnidirectional
Frequency Response 50 Hz to 20 kHz
Output Mini-XLR 3-Pin Female
Packaging Info
Package Weight 7.45 lb
Box Dimensions (LxWxH) 23 x 12.7 x 6.2″
