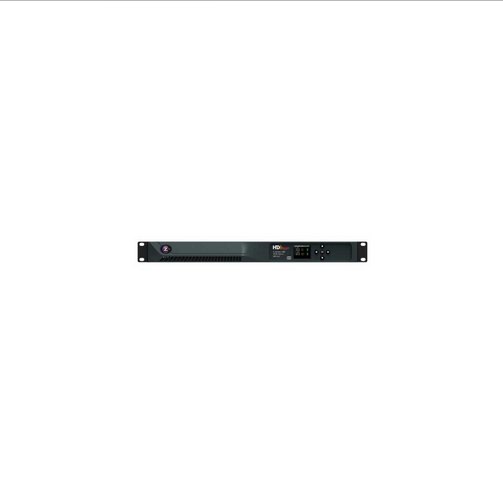

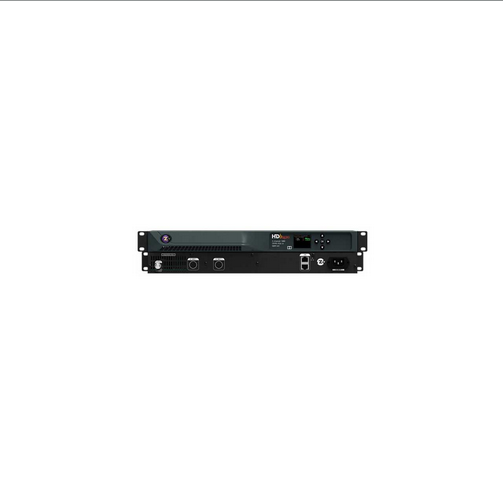

ZeeVee HDB2640DT 4-Channel HD MPEG2 Digital Video Encoder/Modulator – DirecTV Version

Add to Wishlist

26,899.00 د.إ

Add to Wishlist

The ZeeVee HDbridge 2000 Series encoder / modulators offer advanced functionality specifically designed for high channel environments. Four NEW HD family members are available (HDb2640, HDb2620, HDb2540, HDb2520, and HDb2380) offering 1080p/i or 720p performance in 4 or 2 channel configurations. Each model utilizes hydra cables that extend from a full sized DIN connector to 7 inputs (component HD video, analog and digital audio) for maximum flexibility.

HDb2640 – 4 channel 1080p/i Component video
HDb2620 – 2 channel 1080p/i Component video
HDb2540 – 4 channel 720p Component video
HDb2520 – 2 channel 720p Component video

  • Features:

    • Use existing coaxial cabling – saves time, money and disruption
    • Compatible with any HDTV – use the built-in tuner
    • MPEG2 video and AC3 or Mpeg-1 Layer 2 audio encoding – standards based assurance
    • QAM or DVB-T/C – varies by region
    • Optimized rack space – 2, 4 or 8 channels in a single 1RU
    • Front to back cooling – no special racking requirements
    • Consolidated cabling – durable, snug connectors
    • Maestro headend management software – Connect locally or remotely from any browser-based device
    • Front-Panel color LCD – for channel status
    • Local and/or remote management – configure all channels at once – from anywhere!
SKU: HDB2640DT Category: Tag:

Specifications:

  • Power: A8 100-240 VAC 50/60 Hz, 60W max. 30W Typical IEC 60320-C14
  • Cooling: Dual internal cooling fans, Front inlet, Rear exhaust
  • Temperature/Humidity: Operating +32 F0 to +113 F0 (0 C0 to +45 C0) / 10% to 80%, non-condensing
  • MTBF: 62,000 hours
  • Compliance: FCC Class A, IEC60065, EN61000 (see manual 70-00031-00), CE, RoHS, RCM C-Tick
  • Enclosure Type: Metal
  • Mounting: Rack ears shipped attached, 1RU high
  • System Weight: 6.25 lbs. (2.84 kg)
  • Warranty: 5 years
  • Component Video X2 Or X1: DIN connector HDbridge end, RCA connectors for HD source up to 1080
  • Computer VGA (Analog) X2 Or X1: HD-15 connector, 75 Ohm RGB 0 to 0.7V, Separate H and V sync
  • VGA Resolutions Supported: 640×480, 720×480, 800×600, 1024×768, 1152×864, 1176×664, 1280×720, 1280×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1440×900 at 60 70, 72, 75, 85 Hz. 1680×1050 and 1920×1080 at 60 Hz.; VGA resolutions are broadcast centered in the best vertical fit into
  • Stereo Analog And Digital Audio X4 Or X2: Line level input per channel DIN connector HDbridge end, RCA connector or digital SPDIF audio input. 3.5 mm pigtail connector with VGA
  • Encoder Video Profile: MPEG2 HD: ISO13818-2 Main Profile @ High Level
  • Traffic Shaping: Variable Bit Rate
  • Video Encoding Data Rates: Variable, 10 Mbs – 24 Mbs per channel
  • Average Encoding Data Rate: 18 Mbs per channel
  • Encoding Latency: Programmable 200 msec to 400 msec
  • Color Profile: 4:02:00
  • GOP Size: 16
  • Video, Audio PID: Programmable starting value
  • Program Information A62: Programmable program name, EIT
  • Encoder Audio Profile: ATSC A/52, Dolbyr Digital (AC-3)
  • Modulation Types: QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
  • Cable Standard: HRC, IRC or STD
  • Frequency Range: A69 Up to 4 paired, frequency-agile QAM RF CATV Channels 2-135; 2 kHz resolution; +/- 30 ppm accuracy; +/- 35 ppm stability
  • Output Power: +45 dBmV typical
  • Output Level Adjust: 25 – 45 dBmV in 1dBmV steps
  • MER: > 38 dB typical
  • I/Q Amplitude Imbalance: < 1% typical
  • Network Interface: 10/100 Mb Ethernet via RJ45 connection; IP address via DHCP or set by user; HTML/Javascript served web interface for easy configuration; Telnet connection for CLI scripting; Easy firmware updates; All settings saved in NV storage;
  • Front Panel Color Display: A87 Quickly obtain status at a glance, basic configurations, software revisions and updates
