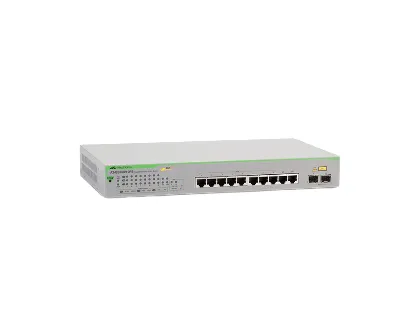

Allied Telesis GS950/10PS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, Grey

Add to Wishlist

WebSmart switch 10 port PoE+ GigT 10 POE capable + 2 SFP Combo ports

AED1,999.00

Add to Wishlist

Highlights

The Allied Telesis GS950/10PS Gigabit Ethernet WebSmart switch features two Gigabit ports, two SFP combo ports, and eight PoE+ ports delivering up to 30 Watts per port to support video surveillance and security cameras, wireless access points, IP phones and other PoE powered devices. The PoE option eliminates the need for power rewiring and minimizes the clutter of power supplies and adapters in awkward places. Thanks to its compact size, the AT-GS950/10PS is ideal for wiring-constrained and smaller environments such as micro branch offices, classrooms, cafes, and smaller retail stores.

SKU: AT-GS950/10PS Category: Tag:
Attribute Value
Switch type Managed
Quality of Service (QoS) support Y
Web-based management Y
MIB support RFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863, RFC 1643, RFC 2618 RMON, RFC 2674 IEEE 802.1Q, RFC 2096 IP
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 10
Combo SFP ports quantity 2
Fiber ports quantity 2
Fiber optic connector SFP
Console port RJ-45
Power connector DC-in jack
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support N
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring Y
Full duplex Y
Flow control support Y
Rate limiting Y
VLAN support Y
Fiber ethernet cabling technology 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX
Fiber type Multi-mode
MAC address table 8000 entries
Switching capacity 20 Gbit/s
Throughput 14.88 Mpps
DHCP features DHCP client, DHCP server
IGMP snooping Y
MAC address filtering Y
Multicast support Y
Product colour Green, Grey
Certification RoHS Eu-RoHS China RoHS WEEE
Internal memory 64 MB
Flash memory 16 MB
Harmonized System (HS) code 85176990
AC input voltage 100 – 240 V
Power consumption (typical) 13.58 W
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 8
Total Power over Ethernet (PoE) budget 75 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -25 – 70 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3.048 m
Width 330 mm
Depth 200 mm
Height 44 mm
Weight 1.9 kg
