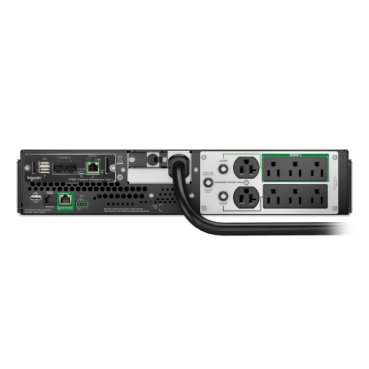

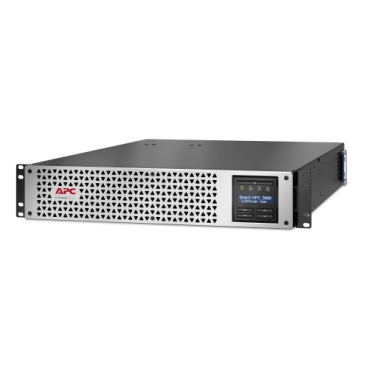

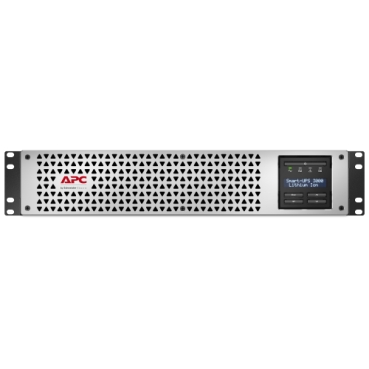

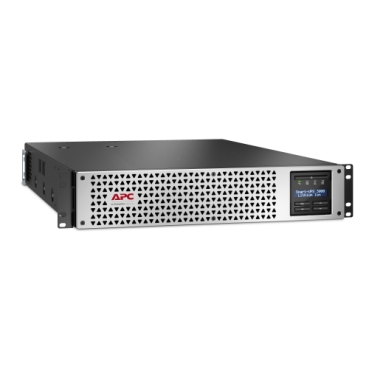

APC Smart-UPS, Line Interactive, 3kVA, Lithium-ion, Rackmount 2U, 120V, 2x NEMA 5-20R+6x NEMA 5-15R outlets, SmartConnect Port+Network Card, AVR, LCD
- 2880VA/2700W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
AED29,299.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30 input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.
š§¾ Overview
| Attribute | Details |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
ā” Main Specifications
| Attribute | Details |
|---|---|
| Run Time Load | 2700 W |
| MināMax Load | 270ā2700 W |
| Runtime @ Max Load | 5 min 18 s |
| Max Capacity Used | 100% |
š Input Specifications
| Attribute | Details |
|---|---|
| Main Input Voltage | 120 V |
| Other Input Voltages | 110 V, 125 V |
| Input Connection Type | NEMA L5-30P |
| Input Protection Type | Circuit breaker |
| Number of Input Connectors | 1 |
| Input Frequency | 50/60 Hz Ā± 3 Hz (auto) |
| Efficiency Range | 82ā144 V |
š Battery & Runtime
| Attribute | Details |
|---|---|
| Battery Type | Li-Ion (Lithium Ion) |
| Extendable Run Time | No |
| Recharge Time | 2 hours |
| Battery Charge Power | 216 W rated |
| Replacement Battery | APCRBC174-LI |
| RBC Quantity | 1 |
| Battery Design Life | 8ā10 years |
| Battery Graph Comment | Runtime depends on charge, age, environment |
š Output Specifications
| Attribute | Details |
|---|---|
| Main Output Voltage | 120 V |
| Other Output Voltages | 110 V, 125 V |
| Rated Power (W/VA) | 2700 W / 2880 VA |
| Max Configurable Power (W/VA) | 2700 W / 3000 VA |
| Output Connections | 2 Ć NEMA 5-20R, 6 Ć NEMA 5-15R |
| Crest Factor | 3:1 |
| Harmonic Distortion | < 5% |
| Transfer Time | 6 ms typical, 10 ms max |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency (Sync to Mains) | 50/60 Hz Ā± 3 Hz |
š» Connectivity & Software
| Attribute | Details |
|---|---|
| Communication Port | SmartConnect Ethernet port |
| Software Package | SmartConnect remote monitoring (feature availability may vary) |
š§° General & Included Equipment
| Attribute | Details |
|---|---|
| Provided Equipment | Rack Mount Brackets, Rails, Screws, Washers, USB Cable, Ethernet Patch Cable |
| Number of Power Modules | 0 |
| Web Sub-Family | Cloud-enabled monitoring |
| Redundant | No |
š¦ Physical
| Attribute | Details |
|---|---|
| Rack Units (U) | 2U |
| Cable Length | 8 ft (2.4 m) |
| Color | Black with silver bezel |
| Height | 3.39 in (8.6 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 26.89 in (68.3 cm) |
| Net Weight | 75.44 lb (34.22 kg) |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| USB Compatible | Yes |
ā Certifications & Warranty
| Attribute | Details |
|---|---|
| Certifications | cULus, ENERGY STAR V2.0 (USA) |
| Equipment Protection Policy | Lifetime: $150,000 |
š± Environmental
| Attribute | Details |
|---|---|
| Acoustic Level | 55 dB |
| Online Thermal Dissipation | 348 Btu/h |
| Operating Altitude | 0ā10,000 ft |
| Storage Altitude | 0ā25,000 ft (0ā7620 m) |
| Operating Temperature | 32ā104 Ā°F (0ā40 Ā°C) |
| Storage Temperature | 5ā113 Ā°F (-15ā45 Ā°C) |
| Relative Humidity (Operating/Storage) | 0ā95% (non-condensing) |
| IP Degree of Protection | IP20 |
